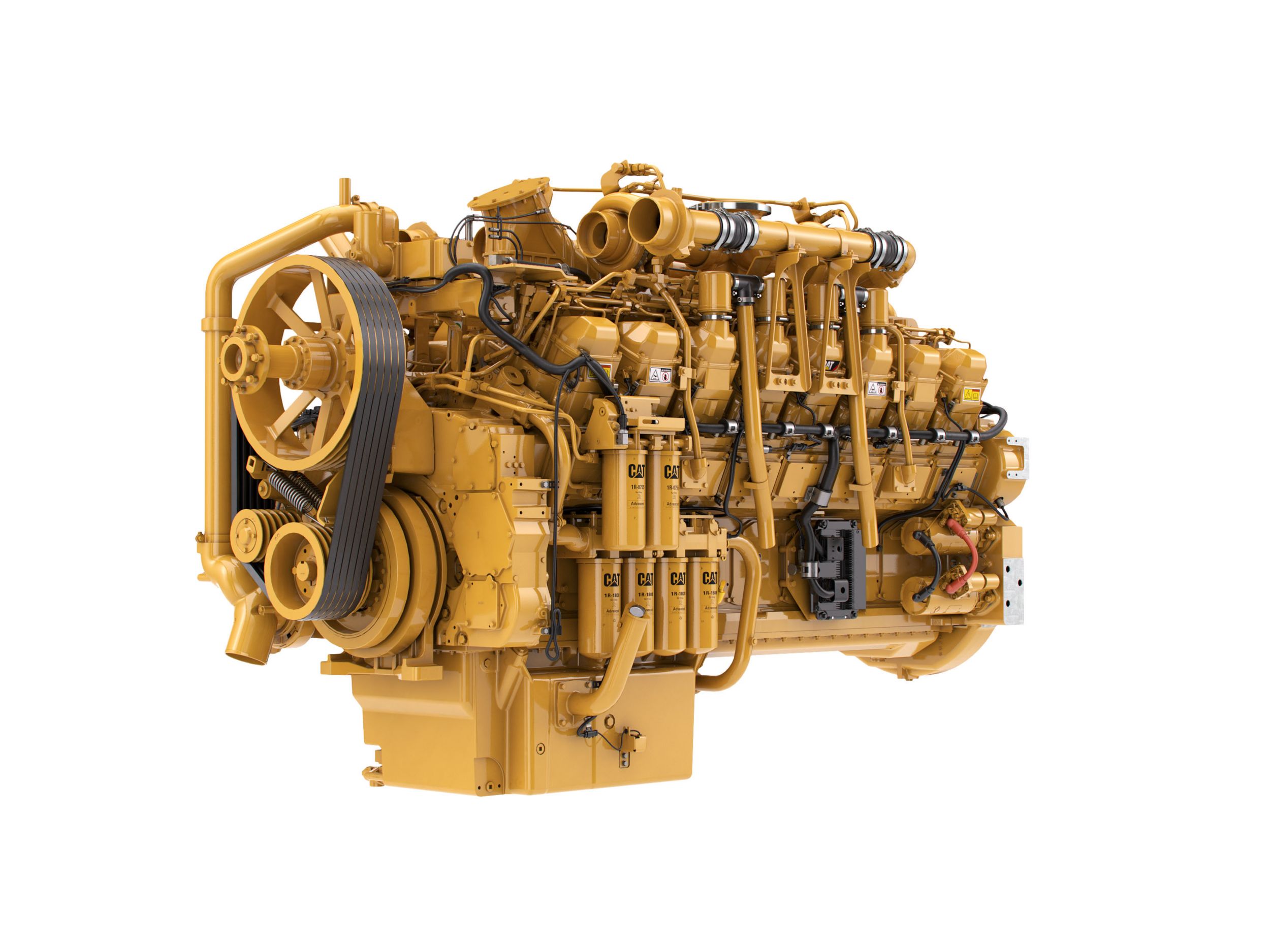

Cat® 3516C Industrial Diesel Engine

Request A Quote
US
Metric

Overview

The Cat® 3516C is offered at 1506 bkW (2100 bhp) @ 1750 rpm. This engine is available using EPA (U.S.) Flex provisions and for other global regulated and non-regulated areas. It offers unsurpassed performance and durability in a multitiude of industries and applications, including Bore and Drill Rigs, Chippers, Grinders, and Shredders, Cranes, Dredgers, Forestry, Material Handling, Mining and Pumps.

Power Rating

Minimum Power
2100.00 bhp
1506.00 bkW
Maximum Power
2100.00 bhp
1506.00 bkW
Rated Speed
1750 rpm

Emission Standards

Emissions
U.S. EPA Tier 2 Nonroad Equivalent Emission Standards (Not Currently EPA Certified)

General

Engine Configuration
V-16, 4-Stroke-Cycle Diesel
Bore
170 mm (6.7 in)
Stroke
215 mm (8.5 in)
Displacement
78 L (4760 in³)
Aspiration
Turbocharged Aftercooled
Compression Ratio
14.7:1
Rotation (from flywheel end)
Counterclockwise
Lube System (refill)
807 L (852 qt)

Engine Dimensions (Approximate. Final dimensions dependent on selected options)

Length
3278 mm (129.1 in)
Width
1530 mm (60.2 in)
Height
2062 mm (81.2 in)
Weight, Net Dry (Basic Operating Engine Without Optional Attachments)
7840 kg (17284 lb)

Power Rating

Minimum Power
2100.00 HP
1506.00 kW
Maximum Power
2100.00 HP
1506.00 kW
Rated Speed
1750 rpm

Emission Standards

Emissions
U.S. EPA Tier 2 Nonroad Equivalent Emission Standards (Not Currently EPA Certified)

General

Engine Configuration
V-16, 4-Stroke-Cycle Diesel
Bore
170 mm (6.7 in)
Stroke
215 mm (8.5 in)
Aspiration
Turbocharged Aftercooled
Displacement
78 L (4760 in³)
Compression Ratio
14.7:1
Rotation from Flywheel End
Counterclockwise
Lube System - Refill
807 L (852 qt)

Engine Dimensions - Approximate

Height
2062 mm (81.2 in)
Length
3278 mm (129.1 in)
Weight - Net Dry - Basic Operating Engine Without Optional Attachments
7840 kg (17284 lb)
Width
1530 mm (60.2 in)

General

Bore
6.70 in
170.00 mm
Stroke
8.50 in
215.00 mm
Displacement
4760.00 in³
78.00 l

Engine Dimensions - Approximate

Height
81.20 in
2062.00 mm
Width
60.20 in
1530.00 mm
Length
129.10 in
3278.00 mm

Power Rating

Maximum Torque
7563.00 lb-ft @ 1300 rpm
10254.00 Nm @ 1300 rpm

Engine Dimensions - Approximate

Weight - Net Dry - Basic Operating Engine Without Optional Attachments
17284.00 lb
7840.00 kg

General

Aftertreatment
-
Features

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Fuel Efficiency

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Quality

Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
  • Air Inlet System
    • Air to Air Aftercooled (ATAAC)
    • Four turbochargers, center mounted
  • Control System
    • ADEM A4 ECM Electronic Engine Control, RH (10 amp DC power required)
  • Cooling System
    • Thermostats and housing
    • Gear driven centrifugal jacket water pump
    • Connections for radiator cooling
  • Exhaust System
    • Exhaust manifold, dry
    • Four turbochargers with watercooled bearings
    • Two exhaust outlets, 203 mm (8 in) round flange
  • Flywheels and Flywheel Housing
    • SAE No. 00 flywheel (183 teeth)
    • SAE No. 00 flywheel housing
  • Fuel System
    • Fuel filter, LH spin-on type
    • Fuel transfer pump
    • Electronically controlled unit injectors
  • Instrumentation
    • No standard instrument or gauge panel
  • Lube System
    • Crankcase breather, top mounted
    • Oil cooler
    • Oil filler and dipstick, LH
    • Oil pump
    • Oil filter, LH, spin-on type
    • Front sump oil pan, 500-hour change interval
  • Mounting System
    • Trunnion front support
  • Power Take Off
    • Front housing, two-sided
  • Protection System
    • ADEM A4 ECM monitoring system to provide customer programmable engine
    • Deration strategies to protect against adverse operating conditions
    • Emergency stop logic inputs provided at 40 pin customer interface connection
  • Starting System
    • Dual 24V electric starting motor, LH, unwired
  • General
    • Paint: Caterpillar yellow
    • Vibration damper
    • Lifting eyes
