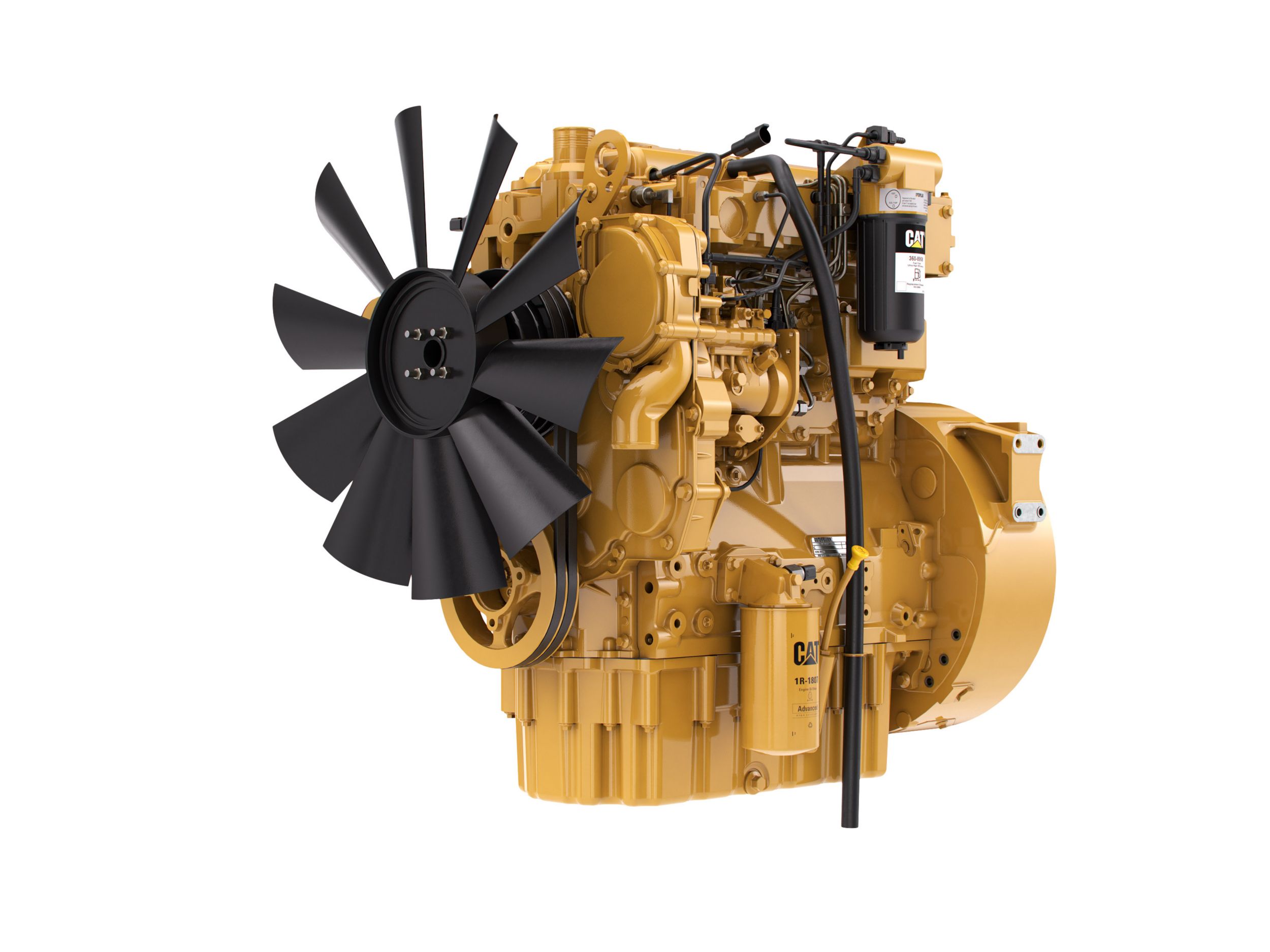

Cat® C4.4 Diesel Engine

Request A Quote
US
Metric

Overview

The Cat® C4.4 Naturally Aspirated (NA) Industrial Diesel Engine is offered in ratings ranging from 54-56 bkW (72.4-75 bhp) @ 2200 rpm. These ratings meet EU Stage IIIA equivalent emission standards. Turbocharged (T) and Turbocharged Aftercooled (TA) Ratings are also available, ranging from 55.5-83 bkW (74.4-111.3 bhp) @ 2200-2400 rpm. These ratings meet U.S. EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. Industries and applications powered by C4.4 engines include: Agriculture, Aerial Lifts, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Harvesters, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers, Turf and Landscaping and Underground Mining Equipment.

Power Rating

Minimum Power
72.40 bhp
54.00 bkW
Maximum Power
111.30 bhp
83.00 bkW
Rated Speed
2200-2400 rpm

Emission Standards

Emissions
EU Stage IIIA Equivalent (NA). U.S. EPA Tier 3 Equivalent, EU Stage IIIA Equivalent (T, TA)

General

Engine Configuration
Inline 4, 4-Stroke-Cycle Diesel
Bore
105 mm (4.13 in)
Stroke
127 mm (5.0 in)
Displacement
4.4 L (269 in³)
Aspiration
Naturally Aspirated (NA), Turbocharged (T) or Turbocharged Aftercooled (TA)
Compression Ratio
16.2:1
Combustion System
Direct Injection
Rotation (from flywheel end)
Counterclockwise
Lube System (refill)
11 L (11.6 qt)

Engine Dimensions (Approximate. Final dimensions dependent on selected options)

Length
663 mm (26.1 in)
Width
470-620 mm (18.5-24.4 in)
Height
775-810 mm (30.5-31.9 in)
Weight, Net Dry (Basic Operating Engine Without Optional Attachments)
291-306 kg (640-674.6 lb)

Power Rating

Minimum Power
72.40 HP
54.00 kW
Maximum Power
111.30 HP
83.00 kW
Rated Speed
2200-2400 rpm

Emission Standards

Emissions
UN ECE R96 Stage IIIA

General

Engine Configuration
Inline 4, 4-Stroke-Cycle Diesel
Bore
105 mm (4.13 in)
Stroke
127 mm (5.0 in)
Aspiration
Naturally Aspirated (NA), Turbocharged (T) or Turbocharged Aftercooled (TA)
Displacement
4.4 L (269 in³)
Compression Ratio
18.2:1
Combustion System
Direct Injection
Rotation from Flywheel End
Counterclockwise
Lube System - Refill
11 L (11.6 qt)

Engine Dimensions - Approximate

Height
775-810 mm (30.5-31.9 in)
Length
663 mm (26.1 in)
Weight - Net Dry - Basic Operating Engine Without Optional Attachments
291-306 kg (640-674.6 lb)
Width
470-620 mm (18.5-24.4 in)

General

Bore
4.10 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
269.00 in³
4.40 l

Engine Dimensions - Approximate

Height
30.50 in
775.00 mm
Width
23.70 in
602.00 mm
Length
26.10 in
663.00 mm

Power Rating

Maximum Torque
308.00 lb-ft @ 1400 rpm
418.00 Nm @ 1400 rpm

Engine Dimensions - Approximate

Weight - Net Dry - Basic Operating Engine Without Optional Attachments
674.60 lb
306.00 kg

General

Aftertreatment
-
Features

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Package Size

Ideal for equipment with narrow engine compartments. Multiple installation options minimize total package size.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
  • Air Inlet System
    • Inlet manifold with choice of inlets.
  • Control System
    • Alternator
    • Starter motor
    • Control Panel
    • Glow plug starting aid
  • Cooling System
    • Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
    • 50:50 water glycol mix
  • Flywheels and Flywheel Housing
    • SAE No. 3 flywheel housing
    • Flywheel and starter rings
  • Fuel System
    • Fuel filter positions
  • Lube System
    • Lubricating oil filters and breathers
    • Oil filter positions
    • Lube oil sump
  • Power Take Off
    • SAE B Power Take Off (PTO)
  • General
    • Timing case and gear-driven auxiliaries
    • Belt-driven auxiliaries
    • Engine mountings
    • Gauges
    • Displays
    • Power and torque curve tailoring
    • Paint: Caterpillar yellow, with optional colors available at request
