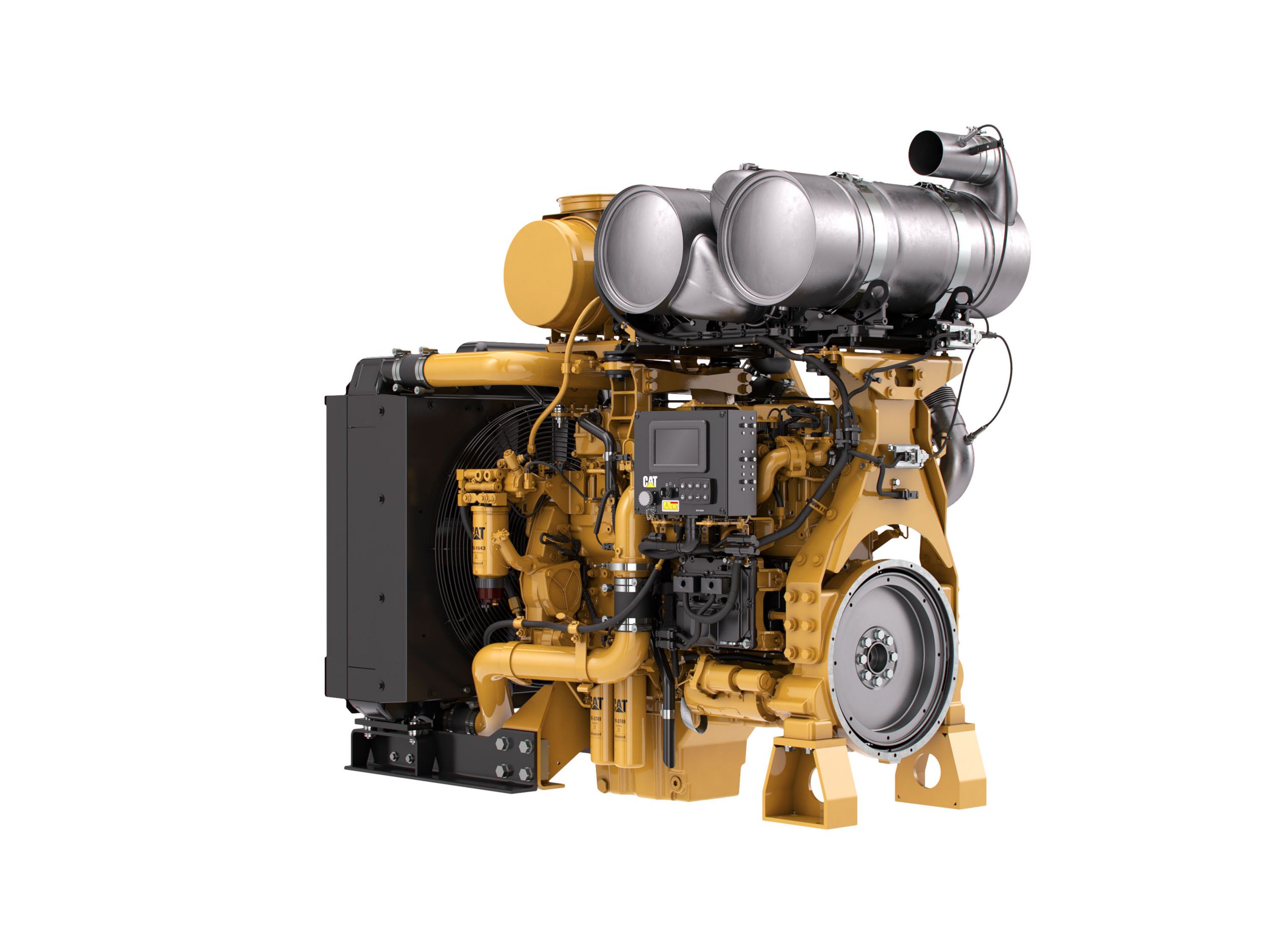

Cat® C13 Industrial Power Unit
US
Metric
Overview
The Cat® C13Industrial Power Unit is offered in ratings ranging from 287-388 bkW (385-520 bhp) @ 1800-2100 rpm. Conveniently pre-configured for a wide range of applications, the Cat® Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.
Power Rating
Minimum Power
385.00 bhp
287.00 bkW
Maximum Power
520.00 bhp
388.00 bkW
Rated Speed
1800-2100 rpm
Emission Standards
Emissions
U.S. EPA Tier 4 Final, EU Stage IV Nonroad Emission Standards. Designed to meet proposed EU Stage V Nonroad Emission Standards.
General
Engine Configuration
Inline 6, 4-Stroke-Cycle Diesel
Bore
130 mm (5.12 in)
Stroke
157 mm (6.18 in)
Displacement
12.5 L (762.8 in³)
Aspiration
Turbocharged Aftercooled (TA)
Compression Ratio
17:1
Rotation (from flywheel end)
Counterclockwise
Cooling System Capacity
60.7 L (64.2 qt)
Lube System (refill)
34 L (35.9 qt)
Power Unit Dimensions - Approximate
Length
2085-2122 mm (82.1-83.5 in)
Width
1157-1247 mm (45.6-49 in)
Height
1928-2082 mm (75.9-81.97 in)
Weight - Approximate, Net Dry - Standard Configuration Without Oil, Cooling, Clutch, Compressor, A/C
2085-2304 kg (4596-5080 lb)
Cat Regeneration System Aftertreatment Dimensions (Approximate. Final dimensions dependent on selected options)
Diameter
330.2 mm (13 in)
Width
779.8-1069 mm (30.7-42.1 in)
Height
451.3-654 mm (17.8-25.7 in)
Weight
248-259 kg (547-571 lb)
Passive Regeneration System Aftertreatment Dimensions - Approximate
Length
974.8 mm (38.4 in)
Width
958.3 mm (37.7 in)
Height
547.2 mm (21.5 in)
Weight
140 kg (308.6 lb)
PETU Dimensions - Tier 4 Final, Stage IV Only
Volume Capacity
48.4 L (51.1 qt)
Length
854 mm (33.6 in)
Width
287 mm (11.3 in)
Height
551 mm (21.7 in)
Weight
19.42 mm (42.8 lb)
Power Rating
Minimum Power
385.00 HP
287.00 kW
Maximum Power
520.00 HP
388.00 kW
Rated Speed
1800-2100 rpm
Emission Standards
Emissions
U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Tier 4 Final emissions standards
General
Engine Configuration
Inline 6, 4-Stroke-Cycle Diesel
Bore
130 mm (5.12 in)
Stroke
157 mm (6.18 in)
Displacement
12.5 L (762.8 in³)
Aspiration
Turbocharged Aftercooled (TA)
Compression Ratio
17.0:1
Rotation from Flywheel End
Counterclockwise
Cooling System - Capacity
60.7 L (64.2 qt)
Lube System - Refill
34 L (35.9 qt)
Cat Regeneration System Aftertreatment Dimensions - Approximate
Diameter
330.2 mm (13 in)
Height
451.3-654 mm (17.8-25.7 in)
Weight
248-259 kg (547-571 lb)
Width
779.8-1069 mm (30.7-42.1 in)
Passive Regeneration System Aftertreatment Dimensions - Approximate
Width
958.3 mm (37.7 in)
General
Bore
5.10 in
130.00 mm
Stroke
6.20 in
157.00 mm
Displacement
762.80 in³
12.50 l
Power Unit Dimensions
Width
49.00 in
1247.00 mm
Weight
5080.00 lb
2304.00 kg
PETU Dimensions - Tier 4 Final Only
Weight
42.80 lb
19.40 kg
Volume Capacity
51.10 qt (US)
48.40 l
Length
33.60 in
854.00 mm
Width
11.30 in
287.00 mm
Power Unit Dimensions
Height
82.00 in
2082.00 mm
Length
83.50 in
2122.00 mm
General
Aftertreatment
DOC+DPF+SCR
PETU Dimensions - Tier 4 Final Only
Height
21.70 in
551.00 mm
Features
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
High Performance
Simple and efficient turbocharger with balance valve provides optimal air management and improved fuel efficiency.
Fuel Efficiency
Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.
Fuel & Oil
Tier 4 Finaland Stage V engines require Ultra Low Sulfur Diesel (ULSD) fuel containing a maximum of 10 ppm sulfur (EU) and 15 ppm sulfur (U.S.), and new oil formulations to support the new technology. Cat® engines are designed to accommodate B20 biofuel. Your Cat dealer can provide more information regarding fuel and oil.
Broad Application Range
Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
- Air Inlet System
- Turbocharged
- Air-to-Air Aftercooled
- Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage V)
- Control System
- Electronic control system
- Over-foam wiring harness
- Automatic altitude compensation
- Power compensated for fuel temperature
- Configurable software features
- Engine monitoring system SAE J1939 broadcast and control
- Integrated Electronic Control Unit (ECU)
- Remote fan control
- Cooling System
- Vertical or RH thermostat outlet
- Centrifugal water pump
- Guidance on cooling system design available through your dealer to ensure equipment reliability
- Flywheels and Flywheel Housing
- SAE No. 1 flywheel housing
- Available SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage V).
- Fuel System
- MEUI injection
- Primary fuel filter
- Secondary fuel filters
- Fuel transfer pump
- Electronic fuel priming
- Lube System
- Open crankcase ventilation system
- Oil cooler
- Oil filler
- Lube oil filter
- Oil dipstick
- Gear driven oil pump
- Choice of front, rear or center sumps
- Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, Stage V)
- Power Take Off (PTO)
- SAE A, SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.
- General
- Paint: Cat yellow
- U.S. EPA Tier 4 Final, EU Stage V Aftertreatment/ Clean Emissions Control Equipment
- Cat Regeneration System
- Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
- Aftertreatment Electronic Control Unit (ECU)
- NOx Reduction System (NRS)
- Pump Electronic Control Unit (PETU)
- Selective Catalytic Reduction (SCR)
- Available in 12V or 24V systems
