Cat® C9.3 Industrial Power Unit

Request A Quote
US
Metric

Overview

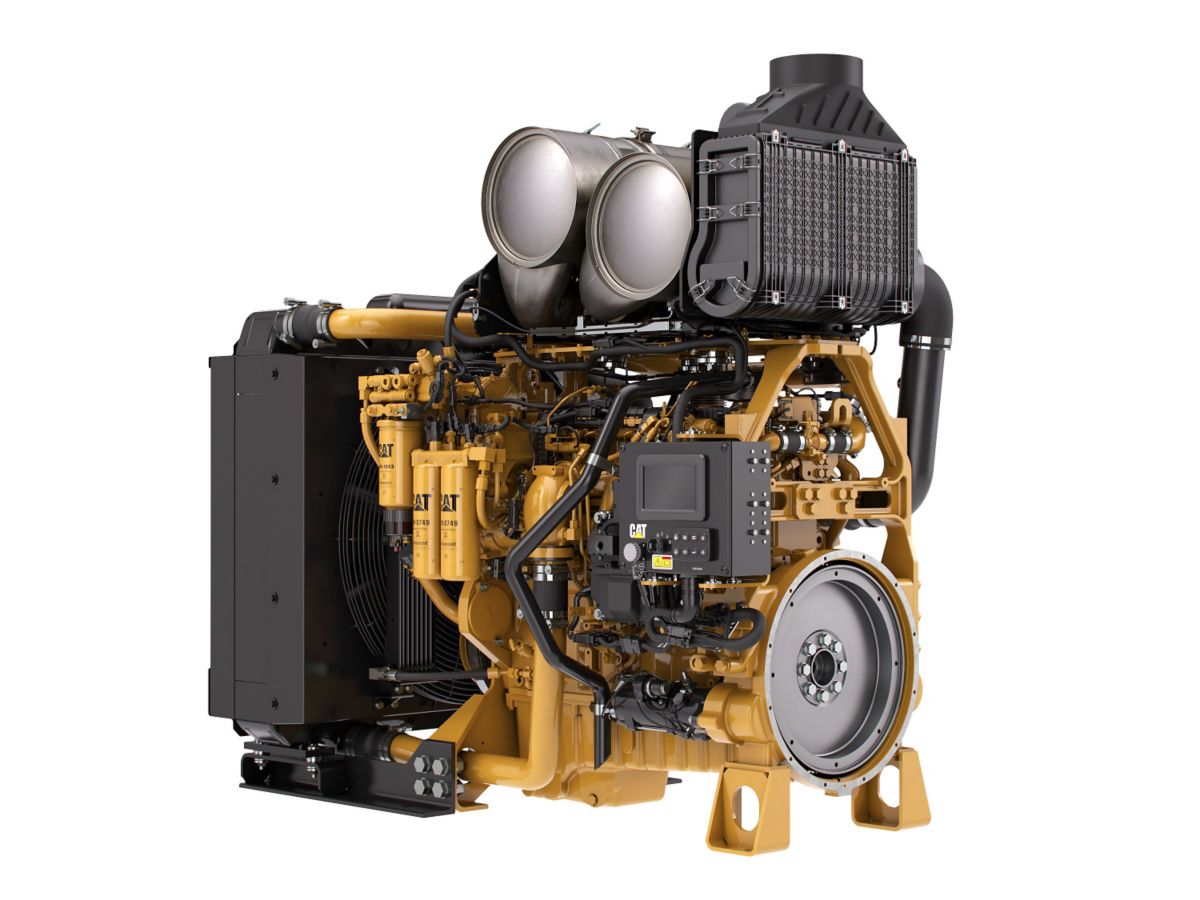

The Cat® C9.3 Industrial Diesel Power Unit is offered in ratings ranging from 224-298 bkW (300-400 bhp) @ 1800-2200 rpm and meet U.S. EPA Tier 4 Final, EU Stage IV emission standards. Conveniently pre-configured for a wide range of applications, the Cat® Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Power Rating

Maximum Power
400.00 HP
298.00 kW
Rated Speed
1800-2200 rpm
Minimum Power
300.00 HP
224.00 kW

Emission Standards

Emissions
U.S. EPA Tier 4 Final

General

Engine Configuration
Inline 6, 4-Stroke-Cycle-Diesel
Bore
4.50 in
115.00 mm
Stroke
5.90 in
149.00 mm
Displacement
567.50 in³
9.30 l
Compression Ratio
17.0:1
Aspiration
Turbocharged Aftercooled (TA)
Rotation from Flywheel End
Counterclockwise

Power Unit Dimensions

Length
80.40 in
2042.00 mm
Width
44.00 in
1118.00 mm
Height
68.50 in
1741.00 mm
Weight
4055.00 lb
1839.00 kg

Aftertreatment Dimensions

Width
34.30 in
870.00 mm
Height
22.40 in
570.00 mm

Aftertreatment Dimensions*

Diameter
13.00 in
330.00 mm

Aftertreatment Dimensions

Weight
467.00 lb
212.00 kg

PETU Dimensions - Tier 4 Final Only

Length
33.60 in
854.00 mm
Width
11.30 in
287.00 mm
Height
21.70 in
551.00 mm
Weight
42.80 lb
19.40 kg
Volume Capacity
51.10 qt (US)
48.40 l
Features

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

High Performance

Simple and efficient turbocharger with balance valve provides optimal air management and improved fuel efficiency.

Fuel Efficiency

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Fuel & Oil

Tier 4 Interim or Tier 4 Final, Stage IIIB or Stage IV engines require Ultra Low Sulfur Diesel (ULSD) fuel containing a maximum of 15 ppm sulfur, and new oil formulations to support the new technology. Cat® engines are designed to accommodate B20 biofuel. Your Cat dealer can provide more information regarding fuel and oil.

Broad Application Range

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

Tier 4 Final, Stage IV Aftertreatment Features


Regeneration. Cat Regeneration System maximizes fuel efficiency during regeneration. Transparent regeneration maximizes uptime. Aftertreatment life is twice as long as engine rebuild

Mounting. Industrial power units have standard horizontal mounting.
Service. Minimum 5000-hour diesel particulate filter ash service interval. PETU filter service is 5000 hours.
Standard Equipment
  • Air Inlet System
    • Turbocharged
    • Air-to-Air Aftercooled
    • Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage IV)
  • Control System
    • Electronic control system
    • Over-foam wiring harness
    • Automatic altitude compensation
    • Power compensated for fuel temperature
    • Configurable software features
    • Engine monitoring system SAE J1939 broadcast and control
    • Integrated Electronic Control Unit (ECU)
    • Remote fan control
  • Cooling System
    • Vertical or RH thermostat outlet
    • Centrifugal water pump
    • Guidance on cooling system design available through your dealer to ensure equipment reliability
  • Flywheels and Flywheel Housing
    • Dual rear PTO configuration
    • Available SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage IV).
  • Fuel System
    • Electronic high pressure common rail
    • Primary fuel filter
    • Secondary fuel filters
    • Fuel transfer pump
    • Electronic fuel priming
  • Lube System
    • Open crankcase ventilation system
    • Oil cooler
    • Oil filler
    • Lube oil filter
    • Oil dipstick
    • Gear driven oil pump
    • Choice of front, rear or center sumps
    • Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, Stage IV)
  • Power Take Off (PTO)
    • SAE A, SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.
  • General
    • Vibration damper
    • Lifting eyes
  • U.S. EPA Tier 4 Interim, EU Stage IIIB Aftertreatment / Clean Emissions Control Equipment
    • Cat Regeneration System
    • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
    • NOx Reduction System (NRS)
    • Flex pipe connection kit with 90° rotatable elbows to attach to Cat Regeneration System Inlet
    • Available in 12 volt or 24 volt systems
  • U.S. EPA Tier 4 Final, EU Stage IV Aftertreatment/ Clean Emissions Control Equipment
    • Cat Regeneration System
    • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
    • Aftertreatment Electronic Control Unit (ECU)
    • NOx Reduction System (NRS)
    • Pump Electronic Control Unit (PETU)
    • Available in 12V or 24V systems
    • Selective Catalytic Reduction (SCR)
