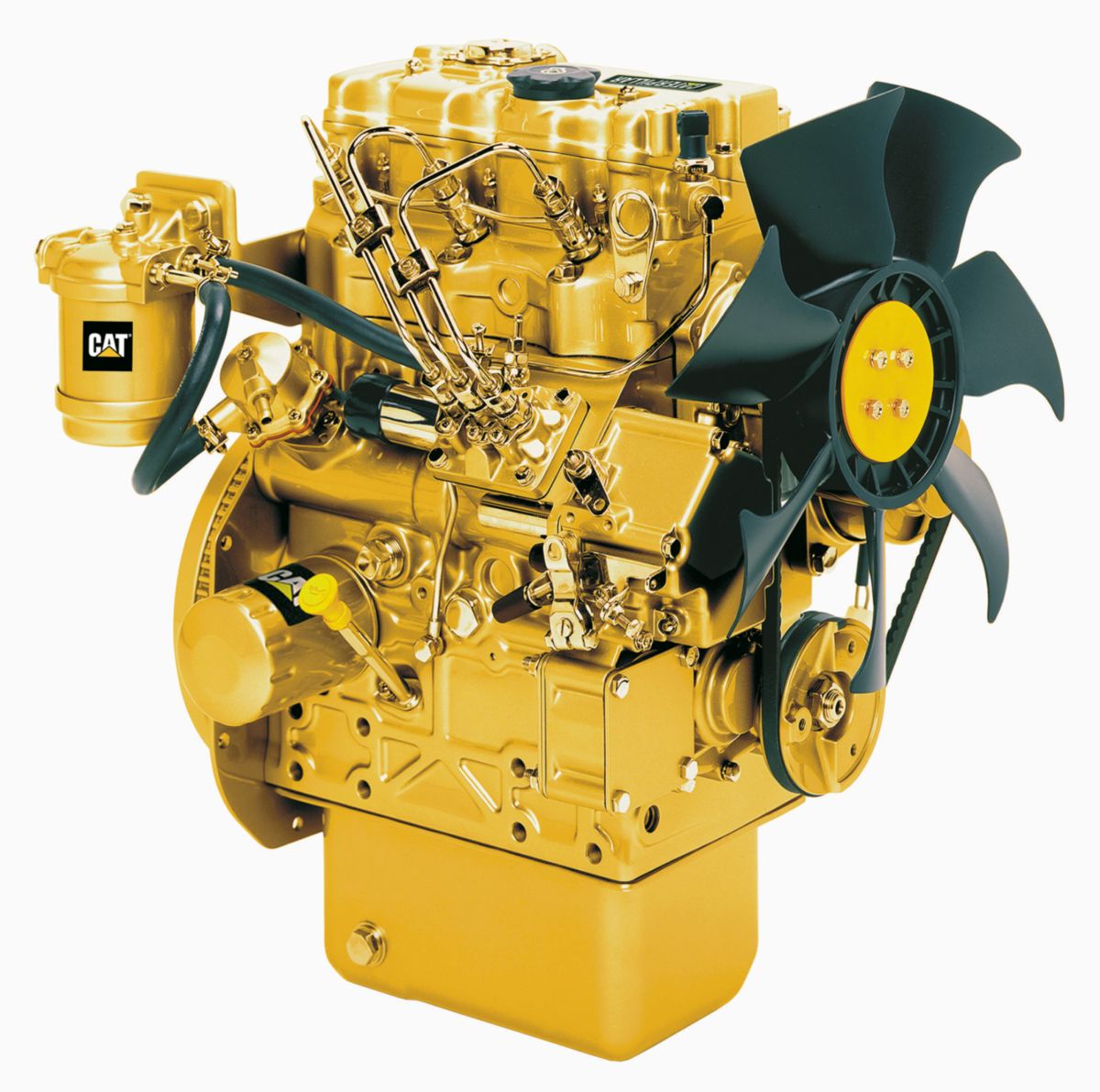

Cat® C1.5 Industrial Power Unit
US
Metric
Overview
The Cat® C1.5 Industrial Power Unit is offered in the following rating: 24.2 bkW (32.5 bhp) @ 3000 rpm. This rating meets U.S. EPA Tier 4 Interim equivalent, EU Stage IIIA equivalent emission standards. Conveniently pre-configured for a wide range of applications, the Cat® Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.
Power Rating
Minimum Rating
32.50 bhp
24.20 bkW
Maximum Rating
32.50 bhp
24.20 bkW
Rated Speed
3000 rpm
Emission Standards
Emissions
U.S. EPA Tier 4 Interim Equivalent, EU Stage IIIA Equivalent
General
Engine Configuration
Inline 3, 4-Stroke-Cycle Diesel
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Displacement
1.496 L (91 in³)
Aspiration
Naturally Aspirated (NA)
Compression Ratio
22.5:1
Rotation (from flywheel end)
Counterclockwise
Cooling System Capacity
5.98 L (6.3 qt)
Lube System (refill)
6 L (6.3 qt)
Power Unit Dimensions (Approximate. Final dimensions dependent on selected options)
Length
820 mm (32.3 in)
Width
497 mm (19.6 in)
Height
793 mm (31.2 in)
Power Unit Dimensions - Approximate
Weight - Net Dry - Standard Configuration Without Oil, Cooling, Clutch, Compressor, A/C
175 kg (385.8 lb)
Power Rating
Minimum Rating
32.50 BHP
24.20 bkW
Maximum Rating
32.50 BHP
24.20 bkW
Rated Speed
3000 rpm
Emission Standards
Emissions
U.S. EPA Tier 4 Interim Equivalent, EU Stage IIIA Equivalent
General
Engine Configuration
Inline 3, 4-Stroke-Cycle Diesel
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Displacement
1.496 L (91 in³)
Aspiration
Naturally Aspirated (NA)
Compression Ratio
22.5:1
Rotation from Flywheel End
Counterclockwise
Cooling System - Capacity
5.98 L (6.3 qt)
Lube System - Refill
6 L (6.3 qt)
Power Unit Dimensions - Approximate
Height
793 mm (31.2 in)
Length
820 mm (32.3 in)
Width
497 mm (19.6 in)
Power Rating
Maximum Power
32.50 HP
24.20 kW
Maximum Torque
69.60 lb-ft @ 1800 rpm
94.40 Nm @ 1800 rpm
Minimum Power
32.50 HP
24.20 kW
General
Bore
3.30 in
84.00 mm
Stroke
3.50 in
90.00 mm
Displacement
91.00 in³
1.50 l
Features
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
Fuel Efficiency
Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.
Broad Application Range
Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.
Quality
Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
- Air Inlet System
- Inlet manifold
- Control System
- Alternator 12 volt 65 amp
- Starter motor 12 volt
- Glow plug starting aid
- Cooling System
- Belt-driven coolant pump
- Coolant temperature switch
- Mounted air cleaner
- Mounted radiator and fan
- Flywheel & Flywheel Housing
- Naturally Aspirated: SAE No. 7 1/2 flywheel
- Choice of SAE No. 4, SAE No. 5 or standard backplate flywheel housing
- Fuel System
- Fuel injection pump
- Fuel filter
- Electronic Shut-off Solenoid (ESOS)
- Lube System
- Spin-on lube oil filter
- Lube oil pressure switch
- Lube oil sump
- Power Take Off (PTO)
- Provision for timing case rear facing PTO
- General
- Cast iron, engine block
- Cast iron exhaust manifold--side outlet
- Cold start capability to -20° C (-4° F)
- Gradeability 35° continuous
- Paint: Caterpillar yellow, with optional colors available at request
