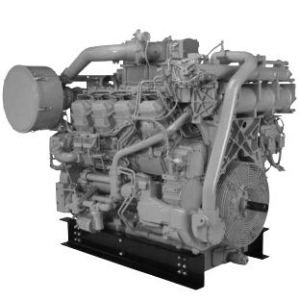

3508 Land Mechanical Drilling Engine
Overview
Engine Specifications
Capacity for Liquids
Dimensions
Engine Specifications
Dimensions
Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.
Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.
Testing
- Every Cat generator set is full-load tested to ensure proper engine performance. - Generator sets are assembled, tested, and validated as a package to ensure performance, reliability and durability.
Product Support Offered Through Global Cat Dealer Network
- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your Cat petroleum product - Worldwide parts availability, service, and warranty - Preventive maintenance agreements available for repairbefore- failure options - S•O•SSM program matches your oil and coolant samples against Caterpillar set standards to determine: • Internal engine component condition • Presence of unwanted fluids • Presence of combustion by-products • Site-specific oil change interval
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
- Air Inlet System
- Corrosion-resistant aftercooler core
- Regular duty air cleaner
- Service indicator
- Control System
- Governor, Woodward 3161 — RH
- Pneumatic control
- Governor control - positive locking
- Cooling System
- Thermostats and housing (dual outlet)
- Jacket water pump, gear driven
- Exhaust System
- Dry exhaust manifold
- Exhaust flexible fitting, adapters, and flanges
- Flywheel and Housing
- SAE No. 00 flywheel
- SAE No. 00 flywheel housing
- SAE standard rotation
- Fuel System
- Fuel filter
- Fuel transfer pump
- Flexible fuel lines
- Fuel priming pump
- Instrumentation
- Analog instrument gauges:
- Lubrication System
- Crankcase breather
- Oil cooler
- Oil filter
- Shallow oil pan
- Oil drain extension, 2 in NPT female connection
- Mounting System
- Rails, mounting, floor type
- Power take-offs
- Accessory drive
- Front housing, two-sided
- Protection System
- Manual shutoff control, LH
- Junction box
- Safety shutoff protection, energized to shutdown
- Starting System
- Air starting motor
- Air silencer
- General
- Paint - Cat yellow
- Vibration damper and guard
- Lifting eyes
- Air Inlet System
- Heavy duty air cleaner
- Remote air inlet adapters
- Control System
- Load sharing governor, 2301A
- Load sharing module
- Governor conversion to 0-200 mA direct rack control
- Local speed throttle control
- Throttle position sensors
- Cooling System
- High gloss black folded core radiators and conventional core radiators
- Belt guard
- Blower fan
- Fan drive and fan pulley
- Radiator cover
- Water level switch gauge
- Air separator
- Coolant level sensors
- Connections
- Exhaust System
- Exhaust elbows
- Exhaust mufflers
- Fuel System
- Primary fuel filter
- Generator and Attachments
- Low voltage extension box
- Potential and current transformers
- Air filter
- Cable access box
- Bearing RTDs
- Instrumentation
- Customer management device
- Gauges and instrumentation panels
- Switches and contactors
- Lubrication System
- Crankcase fumes disposal
- Oil pan accessories
- Power Take-off
- Crankshaft pulley
- Front stub shaft
- Charging alternator
- Air compressor
- Protection System
- Explosion relief valves (3)
- Shutoffs
- Switches and contactors
- Starting System
- Manual air starter
- Air pressure regulator
- General
- Flywheel guard
