Land Mechanical Engines

C18 ACERT Tier 4 Interim / EU Stage IIIB

Request A Quote
US
Metric

Overview

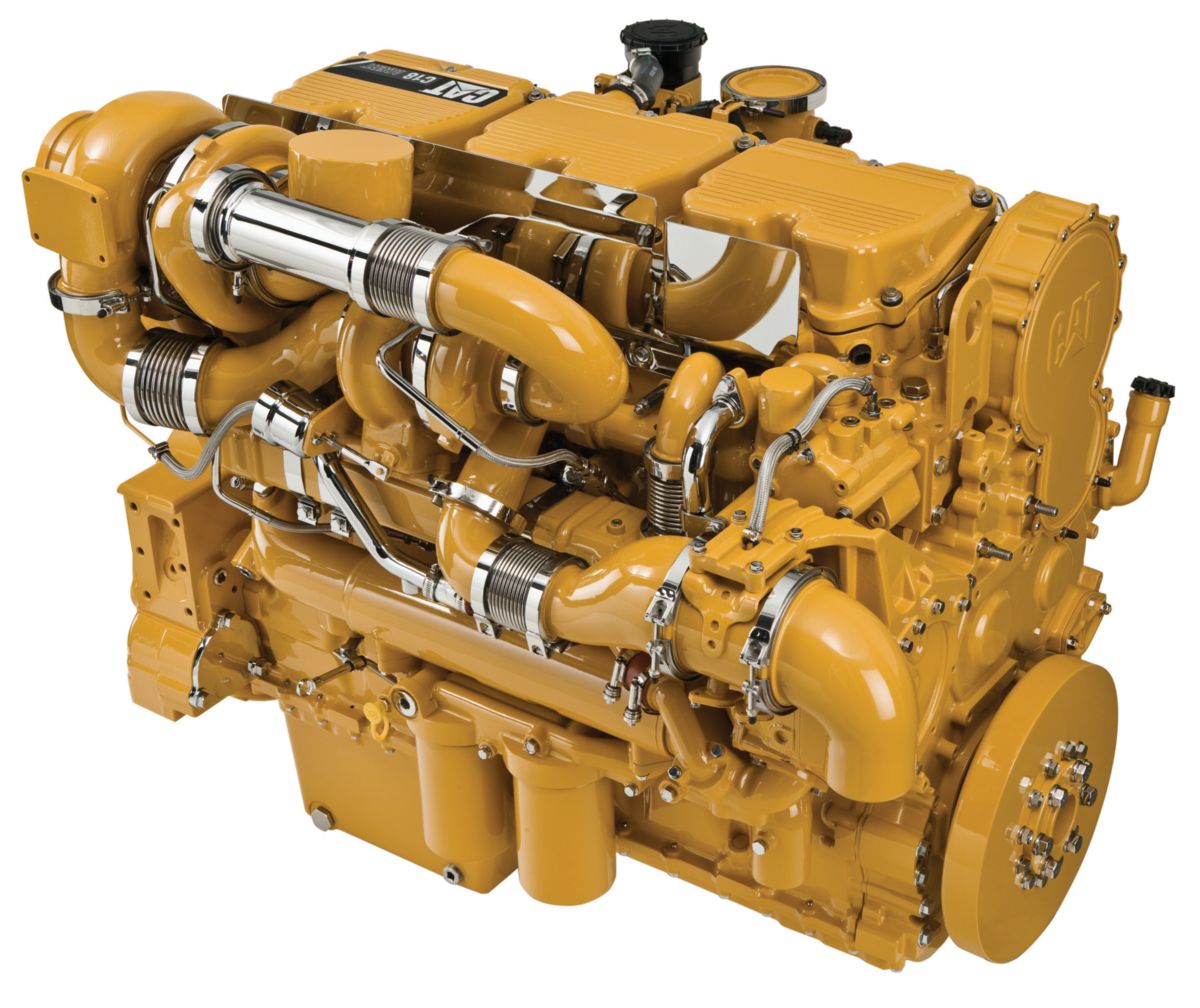

Cat C18 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C18 ACERT engines to deliver excellent performance with low operating costs while meeting tight environmental requirements.This is an ideal engine for applications that require Tier 4 Interim or EU Stage IIIB emissions certifications in land mechanical drilling applications such as mud pump drives. Cat C18 ACERT™ Industrial Diesel Engine. Ratings: 447-522 bkW (600-700 bhp)@ 1800-1900 rpm meet U.S. EPA Tier 4 Interim, EU Stage IIIB emission standards. Rating 563 bkW (755 bhp) @ 1800-1900 rpm meets U.S. EPA Tier 4 Interim emission standards.

Engine Specifications

Minimum Rating
600.00 bhp
447.00 bkW
Maximum Rating
755.00 bhp
563.00 bkW
Emissions
U.S. EPA Tier 4 Interim, EU Stage IIIB
Rated Speed
1900.00 RPM
1800.00 RPM
Bore
5.70 in
145.00 mm
Stroke
7.20 in
183.00 mm
Displacement
1104.50 in3
18.10 L
Aspiration
Turbocharged-Aftercooled
Governor and Protection
ADEM A4
Engine Weight, net dry
3482.00 lb
1580.00 kg
Rotation (from flywheel end)
Counterclockwise
Flywheel and Flywheel Housing
SAE No. 0 or SAE No. 1
Flywheel Teeth
136 (SAE 0), 113 (SAE 1)

Capacity for Liquids

Maximum Cooling System - Engine Only
7.10 gal (US)
26.90 l

Dimensions

Length
60.20 in
1530.00 mm
Width
37.80 in
961.00 mm
Height
3482.00 in
1580.00 mm

Engine Specifications

Minimum Rating
600.00 BHP
447.00 bkW
Maximum Rating
755.00 BHP
563.00 bkW
Emissions
U.S. EPA Tier 4 Interim, EU Stage IIIB
Rated Speed
1900.00 r/min
1800.00 r/min
Bore
5.70 in
145.00 mm
Stroke
7.20 in
183.00 mm
Displacement
1104.50 in³
18.10 l
Aspiration
Turbocharged-Aftercooled
Engine Weight - Net Dry
3482.00 lb
1580.00 kg
Rotation from Flywheel End
Counterclockwise
Flywheel and Flywheel Housing
SAE No. 0 or SAE No. 1
Flywheel Teeth
136 (SAE 0), 113 (SAE 1)

Dimensions

Length
60.20 in
1530.00 mm
Width
37.80 in
961.00 mm
Height
3482.00 in
1580.00 mm

Engine Specifications

Flywheel Teeth
136 (SAE 0), 113 (SAE 1)
Features

Features

Standard Equipment
  • Air Inlet System
    • Turbocharged Aftercooled
  • Control System
    • Electronic control system, over-foam wiring harness, automatic altitude compensation, power compensated for fuel temperature, configurable software features, engine monitoring system SAE J1939 broadcast and control, integrated Electronic Control Unit (ECU) remote fan control
  • Cooling System
    • Vertical outlet thermostat housing, centrifugal water pump, guidance on cooling system design available to ensure machine reliability
  • Exhaust System
    • Clean Emissions Module (CEM) that includes Diesel Particulate Filter (DPF), Diesel Oxidation Catalyst (DOC), and Cat Regeneration System, optional exhaust outlet
  • Flywheels and Flywheel Housing
    • SAE 0 and SAE 1 flywheel housing
  • Fuel System
    • MEUI injection; primary fuel filter, secondary fuel filters, fuel transfer pump, electronic fuel priming
  • Lube System
    • Open crankcase ventilation system, oil cooler, oil filler, oil filter, oil dipstick, oil pump (gear driven), choice of sumps (front, rear, and center)
  • Power Take Off
    • SAE B and SAE C drives available, engine power can also be taken from the front of the engine on some applications
  • General
    • Paint: Cat yellow; vibration damper; lifting eyes
