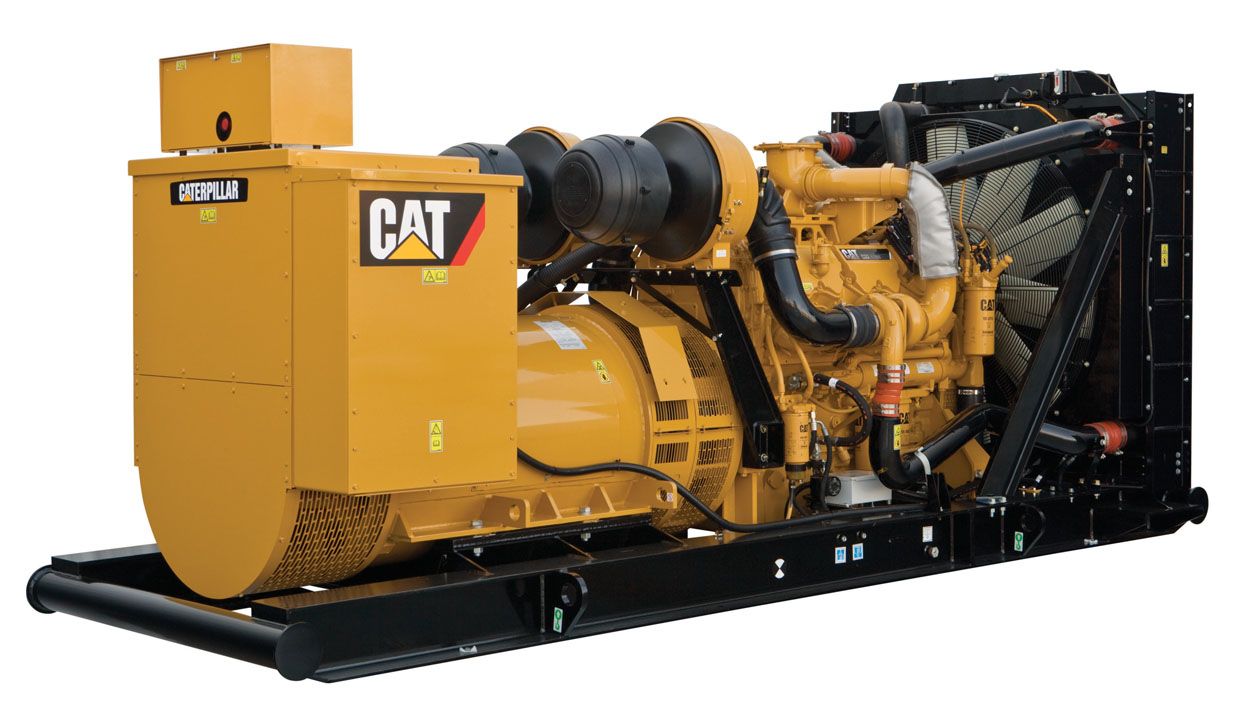

C27 ACERT Tier 4i Oilfield Diesel Generator Set
US
Metric
Overview
Producing oil and gas is a complex task that requires equipped designed specifically for the oilfield. Cat C-Series oilfield diesel generator sets offer a rugged design capable of withstanding harsh conditions in the oilfield. Decades of experience in engine manufacturing combined with the latest electronics deliver the highest performance, safe operation, low emissions, and simplified operator interface. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C27 ACERT oilfield diesel generator set. Ratings: 725 ekW (1035 kVA) @ 60 Hz (1800 rpm) meets U.S. EPA Tier 4 interim emission standards.
Engine Specifications
Maximum Rating
725 ekW (907 - 1035 kVA)
Minimum Rating
725 ekW (907 - 1035 kVA)
Emissions/Fuel Strategy
U.S. EPA Tier 2, U.S. EPA Tier 4 interim
Aspiration
Turbocharged, aftercooled
Manifold Type
Dry
Bore
5.40 in
137.20 mm
Stroke
6.00 in
152.40 mm
Displacement
1648.00 in3
27.00 L
Engine Control and Protection
ADEM A4
Generator set control
EMCP 4.2
Generator
SR4B
Fuel system
MEUI
Frequency - Speed
60 Hz (1800 rpm)
Capacity for Liquids
Fuel
Diesel
Dimensions
Length
186.00 in
4725.00 mm
Width
77.00 in
1950.00 mm
Height
86.00 in
2180.00 mm
Weight
20000.00 lb
9072.00 kg
Engine Specifications
Aspiration
Turbocharged, aftercooled
Bore
5.40 in
137.20 mm
Stroke
6.00 in
152.40 mm
Displacement
1648.00 in³
27.00 l
Generator Set Control
EMCP 4.2
Generator
SR4B
Fuel System
MEUI
Dimensions
Length
186.00 in
4725.00 mm
Width
77.00 in
1950.00 mm
Height
86.00 in
2180.00 mm
Weight
20000.00 lb
9072.00 kg
Capacity for Liquids
Fuel
Diesel
Features
EMCP 4.2 Control Panel
- Integrated control system and communications gateway
- EMCP 4.2 is standard and offers basic engine/generator monitoring, metering and protection and an open protocol allowing for simple integration
- Features more advanced options including power metering, modbus capability, and programmable discrete output
Product Support Offered Through the Global Cat Dealer Network
- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your Cat petroleum product - Worldwide parts availability, service, and warranty - Preventive maintenance agreements available for repairbefore- failure opti
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
Standard Equipment
- Air Inlet System
- Heavy-duty dual element air cleaner
- Service indicator
- Cooling System
- Radiator package mounted (50° C)
- Side-by-side cores
- Coolant drain line with valve at edge of base
- Coolant level sight gauge
- Fan and belt guards
- Cat Extended Life Coolant
- Metal top and bottom tanks
- Exhaust System
- Dry exhaust manifold
- Fuel System
- Primary fuel filter
- Secondary fuel filter
- Fuel priming pump
- Fuel transfer pump
- Generator
- SR4B
- Class H insulation
- Random wound
- IP23 protection
- Cat DVR
- Permanent magnet excitation
- Two-bearing, close coupled alignment
- Controls
- ADEM A4 ECU
- EMCP 4.2 control panel
- Emergency stop pushbutton
- Lube System
- Oil cooler
- High efficiency oil filter
- Oil drain valves
- Fumes disposal
- Gear-type lube oil pump
- Mounting System
- Heavy-duty oilfield welded steel base (skiddable)
- Anti-vibration mounts
- Designed welded base for increased durability (C-channel design)
- Starting/Charging System
- 24-volt starting motor
- 45-amp charging alternator
- General
- Paint — Caterpillar yellow except rails and radiators (gloss black)
- Flywheel and flywheel housing — SAE No. 0
- Engine lifting eyes
Optional Equipment
- Air Inlet System
- Pre-cleaners
- Control System
- Direct rack control
- Cooling System
- Jacket water heater
- Exhaust System
- Manifold and turbocharger guards
- Expander
- Generator
- Self excited
- Starting/Charging System
- Air starting motor
- Mounting System
- Short base - 4725 mm (186 in) total length (does not include drag bars)
