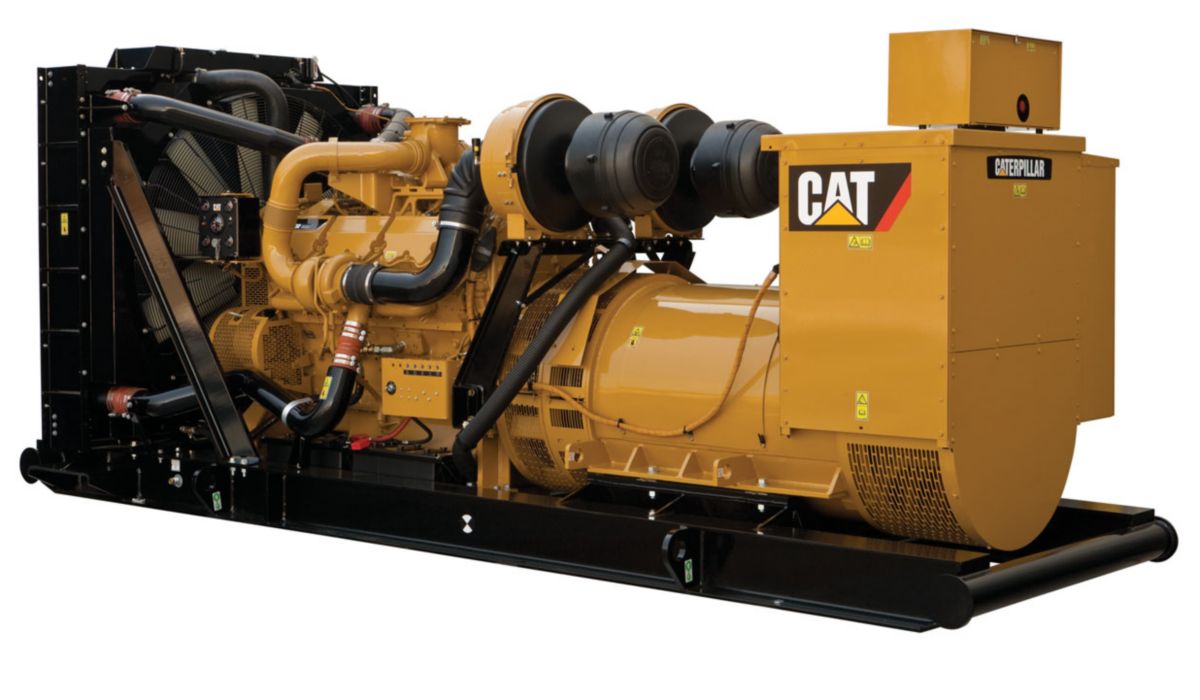

C32 ACERT Tier 2 Oilfield Diesel Generator Set

Request A Quote
US
Metric

Overview

Producing oil and gas is a complex task that requires equipped designed specifically for the oilfield. Cat C-Series oilfield diesel generator sets offer a rugged design capable of withstanding harsh conditions in the oilfield. Decades of experience in engine manufacturing combined with the latest electronics deliver the highest performance, safe operation, low emissions, and simplified operator interface. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C32 ACERT oilfield diesel generator set. Ratings: 800 - 910 ekW (1000 - 1300 kVA) @ 50 and 60 Hz (1500 and 1800 rpm) meet U.S. EPA Tier 2 equivalent, EU Stage II equivalent emission standards.

Engine Specifications

Maximum Rating
800 ekW (1000 kVA)
Minimum Rating
910 ekW (1300 kVA)
Emissions/Fuel Strategy
U.S. EPA Tier 2
Aspiration
Turbocharged-Aftercooled
Manifold Type
Dry
Bore
5.70 in
145.00 mm
Stroke
6.40 in
162.00 mm
Displacement
1959.00 in3
32.10 L
Engine Control and Protection
ADEM A4
Generator set control
EMCP 3.1
Generator
SR4B
Fuel system
MEUI
Frequency - Speed
50/60 Hz (1500/1800 rpm)

Capacity for Liquids

Fuel
Diesel

Dimensions

Length
206.00 in
5228.00 mm
Width
75.00 in
1905.00 mm
Height
86.00 in
2180.00 mm
Weight
20500.00 lb
9299.00 kg

Engine Specifications

Aspiration
Turbocharged-Aftercooled
Bore
5.70 in
145.00 mm
Stroke
6.40 in
162.00 mm
Displacement
1959.00 in³
32.10 l
Generator Set Control
EMCP 3.1
Generator
SR4B
Fuel System
MEUI

Dimensions

Length
206.00 in
5228.00 mm
Width
75.00 in
1905.00 mm
Height
86.00 in
2180.00 mm
Weight
20500.00 lb
9299.00 kg

Capacity for Liquids

Fuel
Diesel
Features

Product Support Offered Through the Global Cat Dealer Network

- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your Cat petroleum product - Worldwide parts availability, service, and warranty - Preventive maintenance agreements available for repairbefore- failure opti

Over 80 Years of Engine Manufacturing Experience

Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.

Web Site

For all your petroleum power requirements, visit www.catoilandgasinfo.com.

Standard Equipment
  • Air Inlet System
    • Dual element air cleaner
    • Service indicator
  • Cooling System
    • Radiator package mounted (50° C)
    • Coolant drain line with valve at edge of base
    • Coolant level sensor
    • Fan and belt guards
    • Coolant level sight gauge
    • Cat Extended Life Coolant
    • Metal top and bottom tanks
  • Exhaust System
    • Dry exhaust manifold
    • Flange outlets
  • Fuel System
    • Primary fuel filter with integral water separator
    • Secondary fuel filters
    • Fuel priming pump
    • Flex fuel lines
    • Fuel cooler
  • Generator
    • SR4B brushless
    • Self excited
    • Class H insulation
    • Form wound
    • IP23 protection
    • Cat DVR 3-phase sensing with selectable volts/Hz
    • 3 sensing CTs and one droop CT
    • Anti-condensation space heater
  • Generator Attachments
    • Bus bar - NEMA and IEC mechanicallug holes
    • Bottom cable entry; capable of top cable entry
  • Controls
    • ADEM A4 ECU
    • EMCP 3 Control Panel
  • Lube System
    • High efficiency oil filter
    • Oil drain valves
    • Fumes disposal
    • Gear-type lube oil pump
    • Deep sump oil pan
  • Mounting System
    • Steel base frame (skidable)
    • Anti-vibration mounts (shipped loose)
    • Designed welded base for increased durability (I-beam design)
  • Starting/Charging System
    • 24-volt starting motor
    • 45-amp charging alternator
    • Battery rack
    • Battery disconnect switch
    • Oversized batteries
  • General
    • Paint — Caterpillar yellow except rails and radiators (gloss black)
    • Flywheel and flywheel housing — SAE No. 0
Optional Equipment
  • Air Inlet System
    • Air inlet adapters
    • Precleaners
  • Exhaust System
    • Stainless steel exhaust flex fittings
    • Elbows, flanges, expanders, and Y adapter
  • Generator
    • Permanent magnet excitation
    • Oversize and premium generators
  • Starting/Charging System
    • Jacket water heater with shutoff valves
    • Battery chargers (10 amp)
  • Controls
    • EMCP 4.2 control panel
    • EMCP 4.3 control panel
    • Local or remote annunciator panel
    • Generator temperature monitoring and protection
    • Discreet I/O module
    • Load share module (optional with direct rack)
