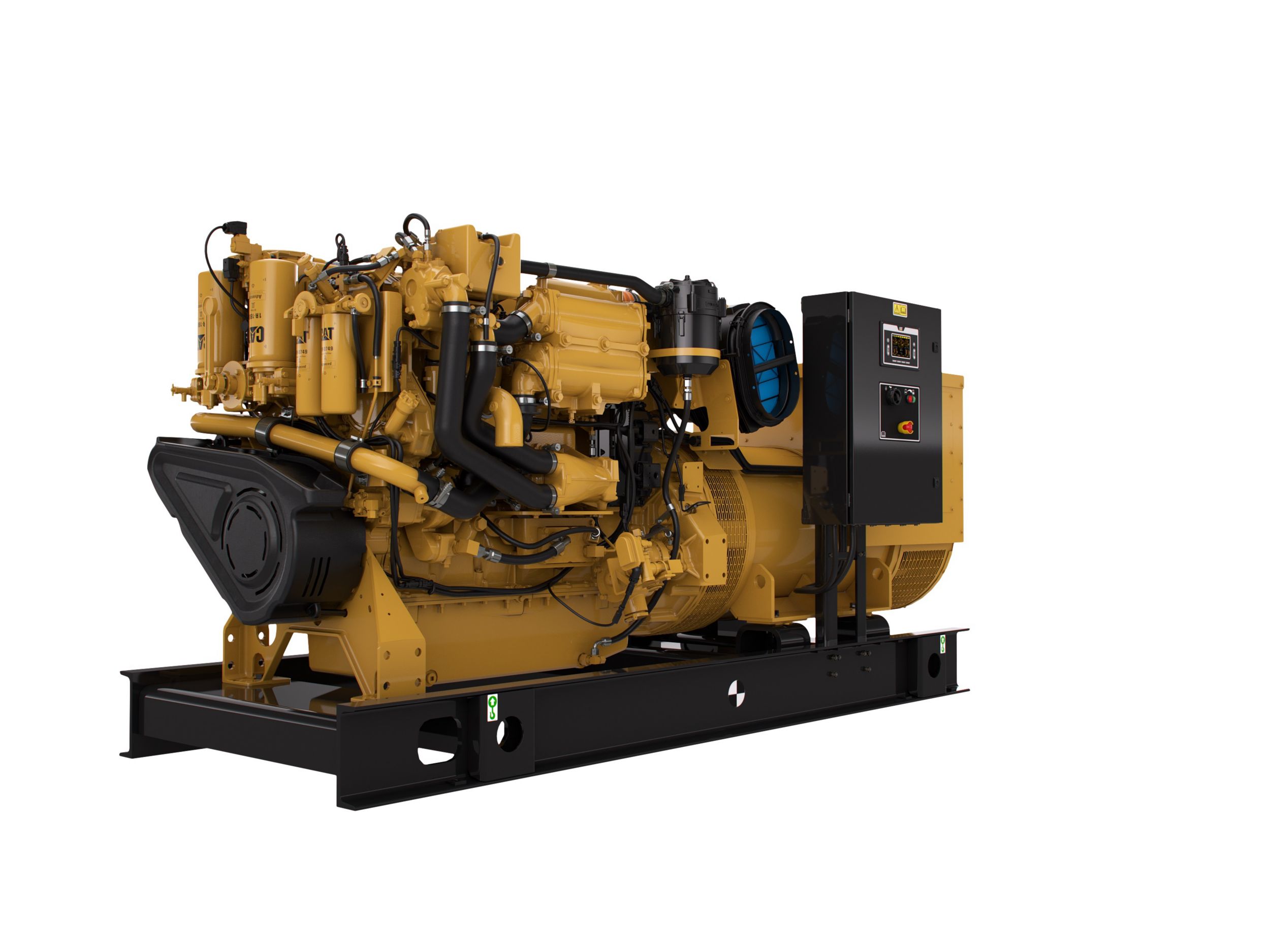

C18 (SRMP) Marine Generator Set

US
Metric

Overview

The C18 SRMP is the latest generator and brings commonality with our petroleum products as well as interfacing improvements. We have also taken this opportunity to add new price list options. All engine ratings and emissions certifications are the same, however we have been able to increase the power output of the generator for 12 of the 14 ratings.

Generator Set Specifications

Minimum Rating
260 ekW (325 kVA)
Maximum Rating
565 ekW (706 kVA)
Frequency
50 hz
Speed
50 Hz - 1500 rpm, 60 Hz - 1800 rpm

Generator Set Configurations

Emissions
EPA Tier 3, IMO II, EU IW

Engine Specifications

Configuration
In-line 6, 4-Stroke-Cycle Diesel
Aspiration
Turbocharged - aftercooled
Bore
5.70 in
145.00 mm
Stroke
7.20 in
183.00 mm
Fuel System
MEUI

Generator Specifications

Excitation
SRMP
Insulation
Class H
IP Rating
IP23 (standard), IP 44 (optional)
Voltage Regulator
CDVR (Digital Voltage)

Generator Set Dimensions (Keel and Hex Cooled)

Length
119.60 in
3038.00 mm

Generator Set Dimensions (Radiator Cooled)

Length
55.60 in
4741.00 mm

Generator Set Dimensions (Keel and Hex Cooled)

Height
64.90 in
1648.00 mm

Generator Set Dimensions (Radiator Cooled)

Height
94.80 in
2408.00 mm

Generator Set Dimensions - Keel and Hex Cooled

Width
55.60 in
1411.00 mm

Generator Set Dimensions - Radiator Cooled

Width
66.90 in
1699.00 mm

Generator Set Dimensions - Keel and Hex Cooled

Weight - Approximate
9747.00 lb
4221.00 kg

Generator Set Dimensions - Radiator Cooled

Weight - Approximate
13396.00 lb
6076.00 kg

Generator Set Specifications

Minimum Rating
260 ekW (325 kVA)
Maximum Rating
565 ekW (706 kVA)
Frequency
50 hz
Speed
50 Hz - 1500 rpm, 60 Hz - 1800 rpm

Engine Specifications

Configuration
In-line 6, 4-Stroke-Cycle Diesel
Aspiration
Turbocharged - aftercooled
Bore
5.70 in
145.00 mm
Stroke
7.20 in
183.00 mm

Generator Set Dimensions - Keel and Hex Cooled

Height
64.90 in
1648.00 mm
Length
119.60 in
3038.00 mm

Generator Set Dimensions - Radiator Cooled

Height
94.80 in
2408.00 mm
Length
55.60 in
4741.00 mm

Generator Specifications

Voltage Regulator
CDVR (Digital Voltage)
Features

Separate circuit aftercooling system

The primary advantage of the separate circuit aftercooling system (SCAC) is that no sea water circulates through the aftercooler

Emissions

EPA Tier 3 compliant, IMO II and EU IWW compliant

Cooling system

Heat exchanger and Keel cooled options for all ratings

Turbo Configurations

Single turbo configurations for all ratings

Competitive size and weight

Marine Certifications

All major MCS type approvals available from factory

Standard Equipment
  • Air inlet system
    • Separate circuit after-cooled (SCAC)
    • Heavy-duty inlet air filter
  • Cooling system
    • SCAC pump, gear driven, for HEX cooled engines only
    • Jacket water pump, gear driven
    • SCAC and JW shunt tanks for maintaining proper pump inlet pressures
  • Exhaust system
    • Water-cooled exhaust manifold & turbocharger
    • Round flanged exhaust outlet
  • Fuel system
    • Hybrid fuel lines
    • MEUI™ fuel system
    • Fuel filter, front service
    • Fuel transfer and priming pumps
  • Lube system
    • Center sump oil pan, deep
    • Front and top service oil filler locations
    • Front service dipstick
  • Mounting system
    • Vibration Isolators
    • Formed C-channel rails
  • Control system
    • Electronic fuel/air ratio control
    • SRMP permanent magnet 12-lead generator
    • Digital voltage regulator
    • Class H insulation, Class F temperature rise, IP23 protection
Optional Equipment
  • Exhaust system
    • Dry Elbows
    • Water-Cooled Elbows
    • Flexible Fitting
    • Flange
    • Muffler
    • Muffler, Spark Arresting
    • Fumes disposal (closed system)
  • Air inlet system
    • Air Inlet Adapter
  • Charging system
    • Battery Chargers 10 amp
    • Battery sets: 24V 950-1300 CCA
    • Charging alternator 24V 105 amp
  • Control system
    • Caterpillar alarm and protection
    • EMCP 4.2 control panel
    • MGCP III B control panel
  • Fuel system
    • Duplex fuel filter – front service
    • Fuel cooler
    • Primary fuel/water separator
  • Instrumentation
    • Generator service side - LH, RH
    • Generator terminal box extension
    • Load sharing module (option for type approved module)
  • Lube system
    • Spare pump kits
    • Duplex oil filter – front service
    • Manual sump pump
  • Mounting system
    • Vibration Isolators
  • Protection system
    • Generator protection - IP44
  • Starting system
    • Starting motors - electric and/or air
    • Jacket water heaters
