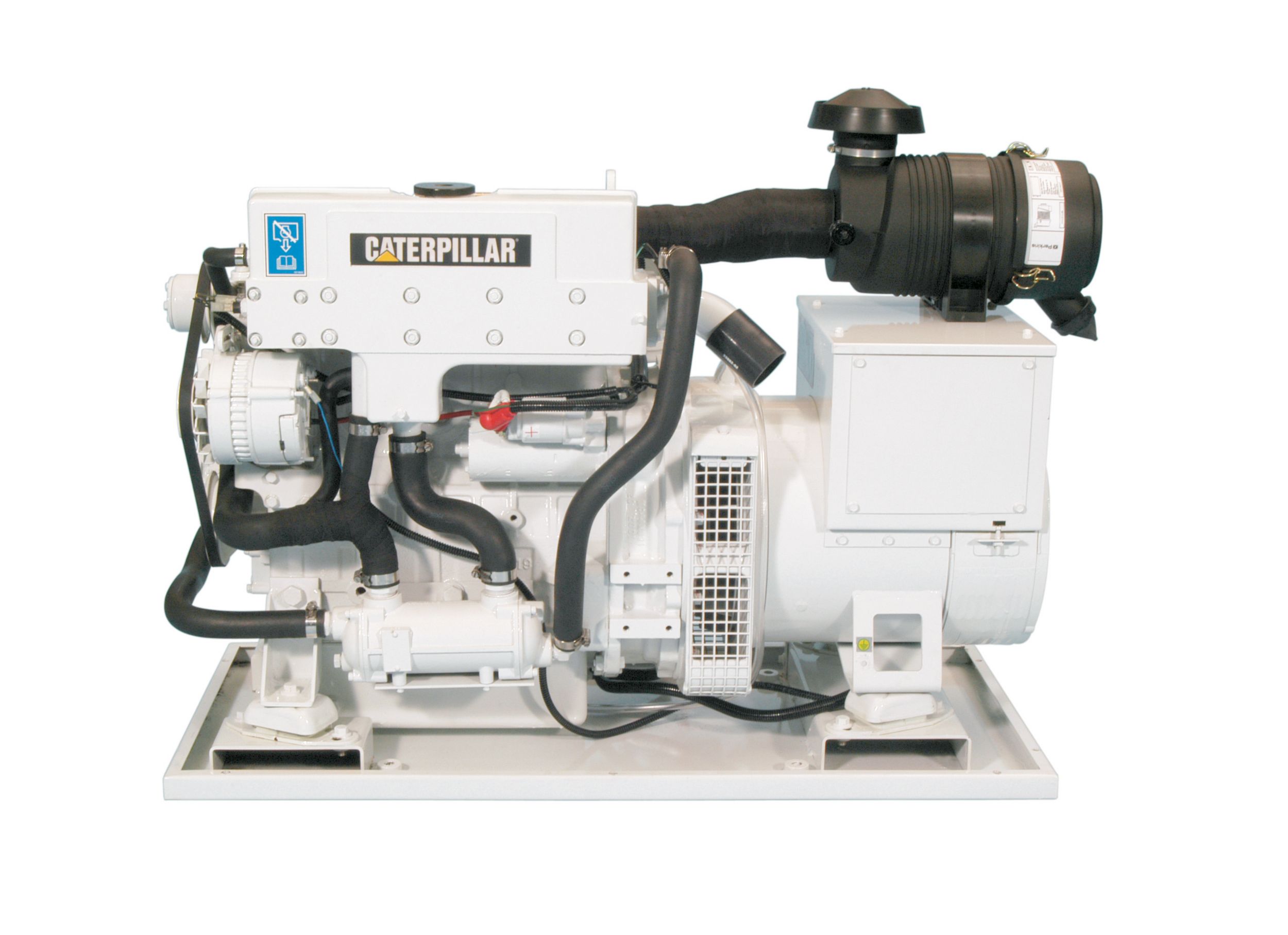

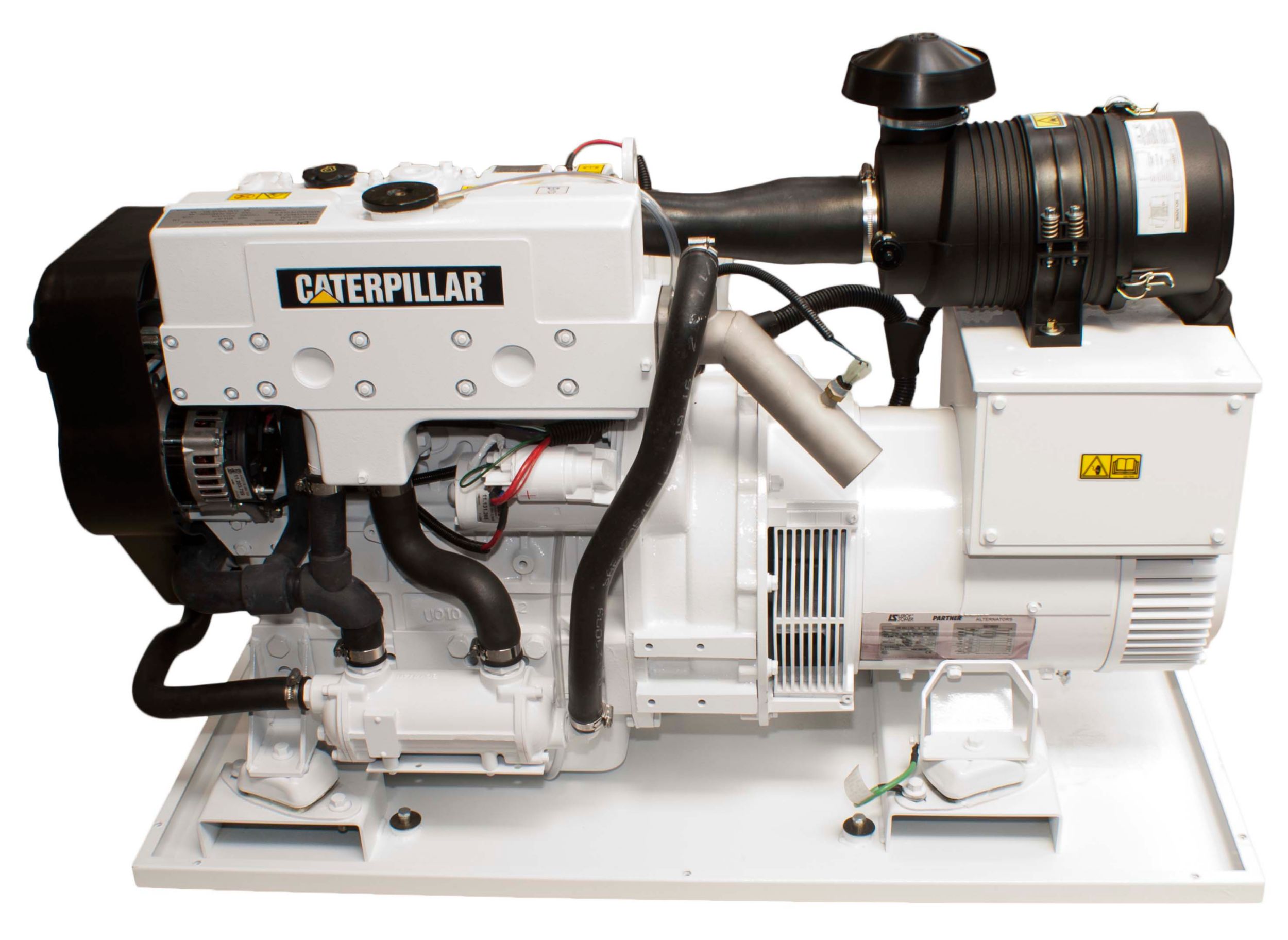

Cat C2.2 Marine Generator Set
US
Metric
Overview
Cat® C2.2 Diesel Marine Generator Set has single phase ratings of 50 Hertz at 16.0 and 22.5 ekW and 60 Hertz at 19.0 and 27.0 ekW that meet U.S. EPA Tier 3 and EU IW emission standards.The Cat® C2.2 also has three phase ratings of 50 Hertz at 16.0 and 22.5 ekW and 60 Hertz at 19.5 and 27.0 ekW that meet U.S. EPA Tier 3 and EU IW emissions standards. This marine gen set is available in 12 or 24 volt as an open gen set or as an enclosed package.
Generator Set Specifications
Minimum Rating
16 ekW (16kVA)
Maximum Rating
27 ekW (27 kVA)
Frequency
50 Hz or 60 Hz
Speed
1500 rpm (50Hz) or 1800 rpm (60 Hz
Generator Set Configurations
Emissions/Fuel Strategy
EPA Tier 3, IMO NST, EU IW
Engine Specifications
Engine Model
C2.2, In-line 4, 4-Stroke-Cycle Diesel
Aspiration
Naturally Aspirated
Bore
3.31 in
84.00 mm
Stroke
3.94 in
100.00 mm
Displacement
135.00 in3
2.20 L
Governor Type
Electrical Ischronous
Fuel System
Fuel filter — RH or LH service, fuel priming, fuel transfer pump, flexible fuel lines
Generator Specifications
Frame Size
2.2
Excitation
AREP
Pitch
2/3 pitch
Number of Poles
4
Number of Leads
4
Insulation
Class H
IP Rating
23
Wave Form Deviation - Line to Line
<2%
Voltage Regulator
Steady State
Voltage Regulation
±0.5%
Dimensions & Weights
Length - Open Set
45.00 in
1147.00 mm
Length - Enclosed Set
46.00 in
1170.00 mm
Width - Open Set
20.50 in
521.00 mm
Width - Enclosed Set
24.00 in
608.00 mm
Height - Open Set
32.00 in
825.00 mm
Height - Enclosed Set
31.00 in
775.00 mm
Minimum Approximate Weight
857.00 lb
389.00 kg
Maximum Approximate Weight
1027.00 lb
466.00 kg
Generator Set Specifications
Minimum Rating
16 ekW (16kVA)
Maximum Rating
27 ekW (27 kVA)
Frequency
50 Hz or 60 Hz
Speed
1500 rpm (50Hz) or 1800 rpm (60 Hz
Engine Specifications
Engine Model
C2.2, In-line 4, 4-Stroke-Cycle Diesel
Aspiration
Naturally Aspirated
Bore
3.31 in
84.00 mm
Stroke
3.94 in
100.00 mm
Displacement
135.00 in³
2.20 l
Governor Type
Electrical Ischronous
Generator Set Specifications
Emissions/Fuel Strategy
EPA Tier 3, IMO NST, EU IW
Generator Specifications
Voltage Regulator
Steady State
Standard Equipment
- Air Inlet System
- Air cleaner, single element canister type with rain cap (open generator set only)
- Cooling System
- Belt-driven centrifugal jacket water pump, gear-driven seawater pump, heat exchanger with copper nickel tubes, expansion tank
- Control System
- Electronic isochronous governor
- Exhaust System
- Watercooled exhaust manifold and elbow
- Fuel System
- Fuel filter — RH or LH service, fuel priming, fuel transfer pump, flexible fuel lines
- Generator
- Single-phase — brushless, shunt excited, 4-pole, 4-lead reconnectable with class H insulation, automatic voltage regulation ±0.5%, 2/3 pitch, IP23 water protection, solid state voltage regulator with integral voltage adjustment potentiometer, connection poles;
- Lube System
- Lubricating oil, oil filter (RH), dipstick (RH), fumes disposal (closed system)
- Mounting System
- Anti-vibration mounts, connected to drip tray and steel base sitting on PVC foam sound-absorbent pad
- Protection System
- Electronic automatic safety shutdown for low oil pressure, high water temperature, high exhaust (wet exhaust only) temperature, and overspeed
- Starting System
- 12 or 24 volt electronic starting motor, 12 volt 55 amp alternator
- General
- Single-side service (RH), decals, literature
Optional Equipment
- Sound attenuated enclosure
- Deluxe instrument panel
- Basic instrument panel
- Remote instrument panel extension harness
- AC circuit breakers
- Flexible fuel lines
- Primary fuel filter/water separator
- Siphon break
- Keel-cooling kit
- Exhaust system components
- Oil drain pump
- Insulated electric system
- Noise reducing air inlet duct
