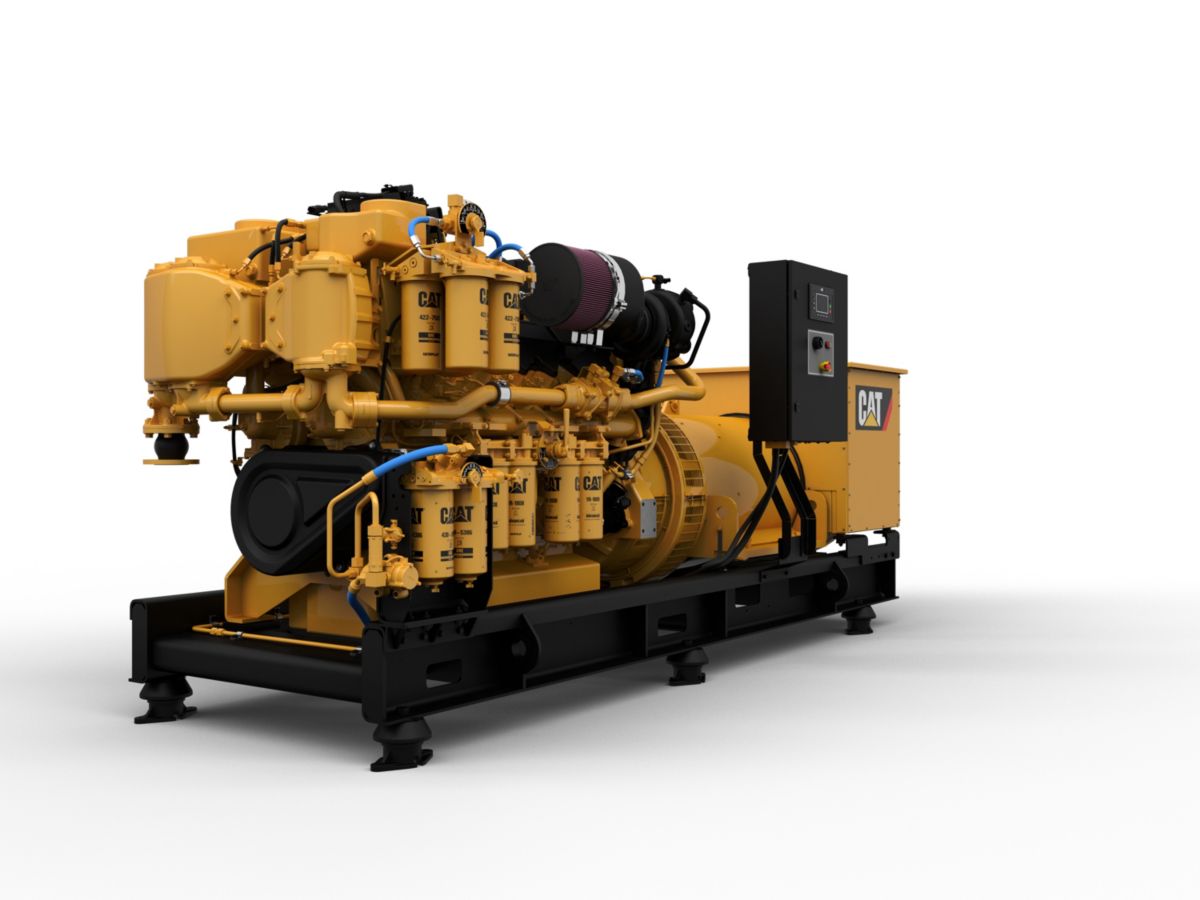

Cat C32 Generator Set (IMO III)
US
Metric
Overview
Engine Specifications
Configuration
Vee-12, 4-stroke-Cycle-Diesel
Emissions
IMO III emissions certified (SCR required)
Rated Engine Speed
1500 rpm
Bore
5.71 in
145.00 mm
Stroke
6.38 in
162.00 mm
Displacement
1959.00 cu in
32.10 l
Aspiration
Turbocharged-aftercooled aspiration
Governor
Electronic (A5 ECM)
Refill Capacity
Lube Oil System w/ oil filter change: 146 L (38.5 gal)
Oil Change Interval
750 hrs
Cooling
Heat exchanger, keel or radiator cooled
Generator
SR5 - Form Wound
Generator Set Specifications
Minimum Rating
219 ekW
Maximum Rating
940 ekW
Frequency
60hz
Generator Set Dimensions
Length
167.2 in/4245 mm (minimum), 226.1 in/5742 mm (maximum)
Width
59.9 in/1521 mm (minimum), 89.8 in/2280 mm (maximum)
Height
70.4 in/1747 mm (minimum), 92.8 in/2356 mm (maximum)
Package Dry Weight
15721 lb/7131 kg (minimum), 21998 lb/9978 kg (maximum)
Generator Set Specifications
Minimum Rating
219 ekW
Maximum Rating
940 ekW
Frequency
60hz
Engine Specifications
Rated Engine Speed
1500 rpm
Configuration
Vee-12, 4-stroke-Cycle-Diesel
Aspiration
Turbocharged-aftercooled aspiration
Bore
5.71 in
145.00 mm
Stroke
6.38 in
162.00 mm
Displacement
1959.00 in³
32.10 l
Governor
Electronic (A5 ECM)
Emissions
IMO III emissions certified (SCR required)
Generator Set Dimensions
Package Dry Weight
15721 lb/7131 kg (minimum), 21998 lb/9978 kg (maximum)
Engine Specifications
Cooling
Heat exchanger, keel or radiator cooled
Oil Change Interval
750 hrs
Refill Capacity
Lube Oil System w/ oil filter change: 146 L (38.5 gal)
Features
Emissions
Utilizes SCR Technology to enable IMO III emission regulations compliance while lowering operational costs
Control Strategy
Utilizes closed loop air assisted DEF dosing control strategy that delivers: Highest efficiency mixing and control to lower operational costs; Extends emissions useful life; Ensures compliance; Flexible to urea quality
Fuel System
Enhanced control of fuel injection optimized through crank timing and the A5 ECM technology
Power Reserve
Industry leading power reserve
Certifications
Wide range of available Marine Society certifications
Warranty
Industry-leading warranty coverage for factory packaged components
Service
Global dealer network for service in any location
Standard Equipment
- AIR INLET SYSTEM
- Separate circuit aftercooled (SCAC)
- Closed crankcase fumes disposal
- CONTROL SYSTEM
- 24V control system
- COOLING SYSTEM
- Heat exchanger or Keel Cooling
- Watercooled exhaust manifold and turbocharger
- Hard seawater lines – no flexible hoses
- Flanges for cooling connections, ANSI or DIN
- FUEL SYSTEM
- Primary fuel filter with water separator installed on base frame
- Duplex fuel filters with hybrid fuel lines
- GENERATORS AND GENERATOR ATTACHMENTS
- IP23, air cooled, form wound SR5 generator offered in 380, 400, 415 and 690 V
- LUBE SYSTEM
- Oil fill, simplex filter and dipstick
- MOUNTING SYSTEM
- Helical spring/rubber isolated mounting for vibration and structure borne noise reduction
- GENERAL
- Right or left hand service sides
- Customer wiring and service tool connector
Optional Equipment
- ALARM AND PROTECTION
- MGCPIIIB control panel with Cat® Alarm and Protection System
- IP44 generator protection
- EXHAUST SYSTEM
- Muffler
- Water-in-fuel and exhaust temperature sensors
- SOLAS approved spray shielding
- CHARGING SYSTEM
- Charging alternator
- FUEL SYSTEM
- Manual or electric fuel priming pump
- Fuel cooler
- LUBE SYSTEM
- Duplex oil filters
- STARTING SYSTEM
- Starting motors – air, electric or redundant
