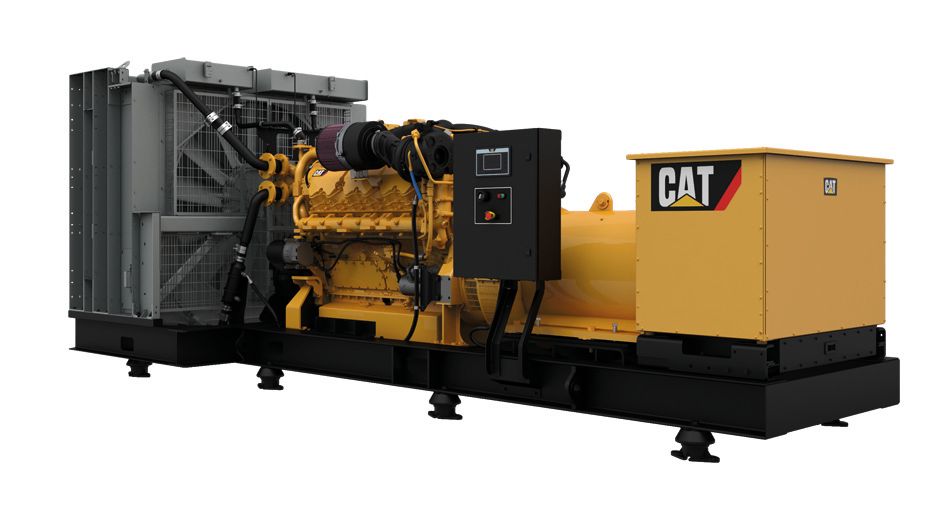

Cat C32 Generator Set (US EPA Tier 3 / IMO II)

Request A Quote
US
Metric

Overview

Engine Specifications

Configuration
Vee-12, 4-stroke-Cycle-Diesel
Emissions
U.S. EPA Tier 3 / IMO II emissions certified
Rated Engine Speed
1800 rpm
Bore
5.71 in
145.00 mm
Stroke
6.38 in
162.00 mm
Displacement
1959.00 cu in
32.10 l
Aspiration
Turbocharged-aftercooled aspiration
Governor
Electronic (A4 ECM)
Refill Capacity
Lube Oil System w/ oil filter change: 146 L (38.5 gal)
Oil Change Interval
750 hrs
Cooling
Heat exchanger, keel or radiator cooled
Generator
SR5 - Form Wound

Generator Set Specifications

Minimum Rating
219 ekW
Maximum Rating
940 ekW
Frequency
60hz

Generator Set Dimensions

Length
167.2 in/4245 mm (minimum), 226.1 in/5742 mm (maximum)
Width
59.9 in/1521 mm (minimum), 89.8 in/2280 mm (maximum)
Height
70.4 in/1747 mm (minimum), 92.8 in/2356 mm (maximum)
Package Dry Weight
15721 lb/7131 kg (minimum), 21998 lb/9978 kg (maximum)

Generator Set Specifications

Minimum Rating
219 ekW
Maximum Rating
940 ekW
Frequency
60hz

Engine Specifications

Rated Engine Speed
1800 rpm
Configuration
Vee-12, 4-stroke-Cycle-Diesel
Aspiration
Turbocharged-aftercooled aspiration
Bore
5.71 in
145.00 mm
Stroke
6.38 in
162.00 mm
Displacement
1959.00 in³
32.10 l
Governor
Electronic (A4 ECM)
Emissions
U.S. EPA Tier 3 / IMO II emissions certified

Generator Set Dimensions

Package Dry Weight
15721 lb/7131 kg (minimum), 21998 lb/9978 kg (maximum)

Engine Specifications

Cooling
Heat exchanger, keel or radiator cooled
Oil Change Interval
750 hrs
Refill Capacity
Lube Oil System w/ oil filter change: 146 L (38.5 gal)
Features

SCAC

Separate-circuit aftercooling – no sea water in aftercooler

Fuel System

Reliable electronic controlled unit injector fuel system. Enhanced control of fuel injection optimized through crank timing and A4 ECM technology. Advanced combustion technology to optimize fuel consumption and meet emissions without aftertreatment.

Power Reserve

Industry leading power reserve

Certifications

Wide range of available Marine Society certifications

Warranty

Industry-leading warranty coverage for factory packaged components

Service

Global dealer network for service in any location

Standard Equipment
  • AIR INLET SYSTEM
    • Separate circuit aftercooled (SCAC)
  • CONTROL SYSTEM
    • 24V control system
  • COOLING SYSTEM
    • Heat exchanger, keel or radiator cooled
    • Watercooled exhaust manifold and turbocharger
    • Hard seawater lines – no flexible hoses
    • Flanges for cooling connections, ANSI or DIN
  • FUEL SYSTEM
    • Duplex fuel filters with hybrid fuel lines
    • Fuel transfer and priming pump
  • GENERATORS AND GENERATOR ATTACHMENTS
    • IP23, air cooled, form wound SR5 generator offered in 440, 480 and 690V
  • LUBE SYSTEM
    • Oil fill, simplex filter and dipstick
  • MOUNTING SYSTEM
    • Helical spring/rubber isolated mounting for vibration and structure borne noise reduction
  • GENERAL
    • Right or left hand service sides
    • Customer wiring and service tool connector
Optional Equipment
  • AIR INLET SYSTEM
    • Closed crankcase ventilation
  • ALARM AND PROTECTION
    • MGCP II or MGCP IIIB control panel with Cat® alarm and protection system
    • IP44 generator protection
  • EXHAUST SYSTEM
    • Muffler
    • SOLAS approved spray shielding
  • CHARGING SYSTEM
    • Charging alternator
  • CONTROL SYSTEM
    • EMCP 4.2 control panel
  • FUEL SYSTEM
    • Installed primary fuel filter with water separator and manual or electric priming pump
    • Fuel cooler
  • LUBE SYSTEM
    • Duplex oil filters
  • STARTING SYSTEM
    • Starting motors – air, electric or dual
