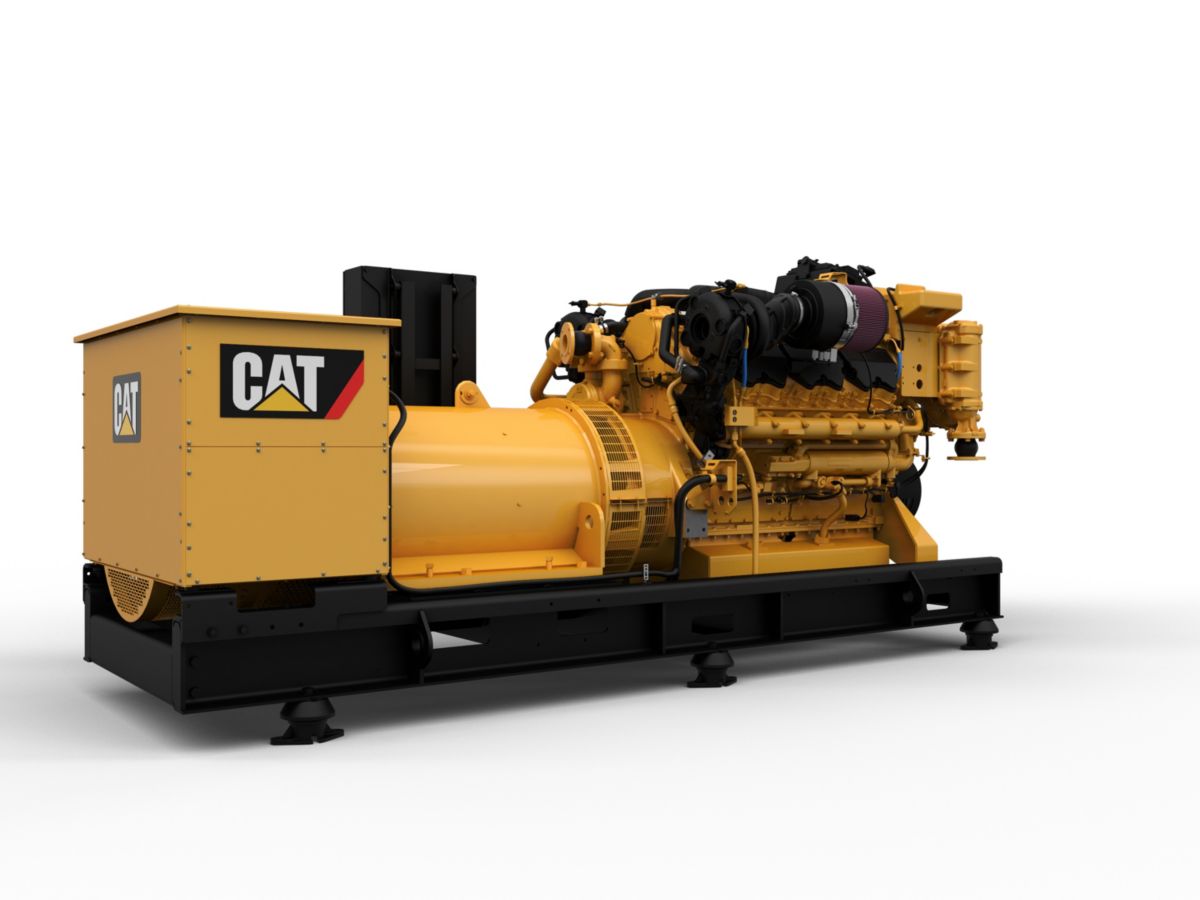

Cat C32 Generator Set (US EPA Tier 4 / IMO III)

Request A Quote
US
Metric

Overview

Engine Specifications

Configuration
Vee-12, 4-stroke-Cycle-Diesel
Emissions
U.S. EPA Tier 4 Final certified / IMO III emissions certified (SCR required)
Rated Engine Speed
1800 rpm
Bore
5.71 in
145.00 mm
Stroke
6.38 in
162.00 mm
Displacement
1959.00 cu in
32.10 l
Aspiration
Turbocharged-aftercooled aspiration
Governor
Electronic (A5 ECM)
Refill Capacity
Lube Oil System w/ oil filter change: 146 L (38.5 gal)
Oil Change Interval
750 hrs
Cooling
Heat exchanger, keel or radiator cooled
Generator
SR5 - Form Wound

Generator Set Specifications

Minimum Rating
282 ekW
Maximum Rating
940 ekW
Frequency
60hz

Generator Set Dimensions

Length
167.2 in/4245 mm (minimum), 226.1 in/5742 mm (maximum)
Width
59.9 in/1521 mm (minimum), 89.8 in/2280 mm (maximum)
Height
70.4 in/1747 mm (minimum), 92.8 in/2356 mm (maximum)
Engine Dry Weight
15721 lb/7131 kg (minimum), 21998 lb/9978 kg (maximum)

Clean Emissions Module (CEM) - Dimensions

6 Brick Z-Flow - Length
147.70 in
3751.00 mm
6 Brick Z-Flow - Width
43.50 in
1106.00 mm
6 Brick Z-Flow - Height
23.50 in
597.00 mm
6 Brick Z-Flow - Weight
1246.00 lb
565.00 kg
6 Brick U-Flow - Length
85.00 in
2159.00 mm
6 Brick U-Flow - Width
56.90 in
1445.00 mm
6 Brick U-Flow - Height
23.50 in
597.00 mm
6 Brick U-Flow - Weight
1235.00 lb
560.00 kg
Dosing Cabinet - Length
37.40 in
949.00 mm
Dosing Cabinet - Width
18.80 in
477.00 mm
Dosing Cabinet - Height
22.80 in
579.00 mm
Dosing Cabinet - Weight
209.00 lb
95.00 kg
Features

Emissions

Utilizes SCR Technology to enable U.S. EPA Tier 4 Final and IMO III emission regulations compliance while lowering operational costs

Control Strategy

Utilizes closed loop air assisted DEF dosing control strategy that delivers: Highest efficiency mixing and control to lower operational costs ; Extends emissions useful life ; Ensures compliance ; Flexible to urea quality

Fuel System

Enhanced control of fuel injection optimized through crank timing and the A5 ECM technology

Power Reserve

Industry leading power reserve

Certifications

Wide range of available Marine Society certifications

Warranty

Industry-leading warranty coverage for factory packaged components

Service

Global dealer network for service in any location

Standard Equipment
  • AIR INLET SYSTEM
    • Separate circuit aftercooled (SCAC)
    • Closed crankcase fumes disposal
  • CONTROL SYSTEM
    • 24V control system
  • COOLING SYSTEM
    • Heat exchanger or Keel Cooling
    • Watercooled exhaust manifold and turbocharger
    • Hard seawater lines – no flexible hoses
    • Flanges for cooling connections, ANSI or DIN
  • FUEL SYSTEM
    • Duplex fuel filters with hybrid fuel lines
    • Primary fuel filter with water separator installed on base frame
  • GENERATORS AND GENERATOR ATTACHMENTS
    • IP23, air cooled, form wound SR5 generator offered in 440, 480 and 690V
  • LUBE SYSTEM
    • Oil fill, simplex filter and dipstick
  • MOUNTING SYSTEM
    • Helical spring/rubber isolated mounting for vibration and structure borne noise reduction
  • GENERAL
    • Right or left hand service sides
    • Customer wiring and service tool connector
Optional Equipment
  • ALARM AND PROTECTION
    • MGCPIIIB control panel with Cat® Alarm and Protection System
    • IP44 generator protection
  • EXHAUST SYSTEM
    • Muffler
    • Water-in-fuel and exhaust temperature sensors
    • SOLAS approved spray shielding
  • CHARGING SYSTEM
    • Charging alternator
  • FUEL SYSTEM
    • Manual or electric fuel priming pump
    • Fuel cooler
  • LUBE SYSTEM
    • Duplex oil filters
  • STARTING SYSTEM
    • Starting motors – air, electric or redundant
