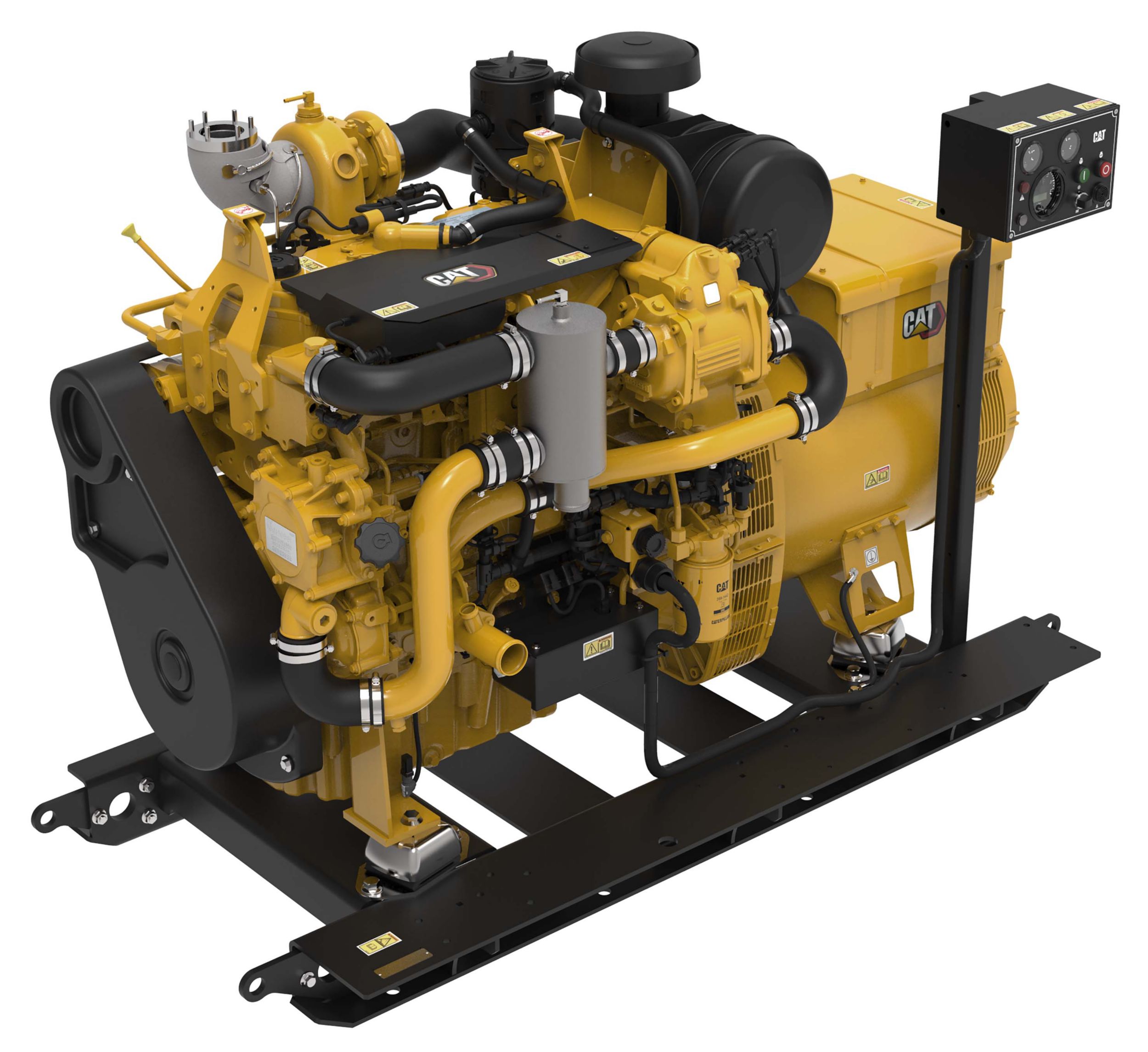

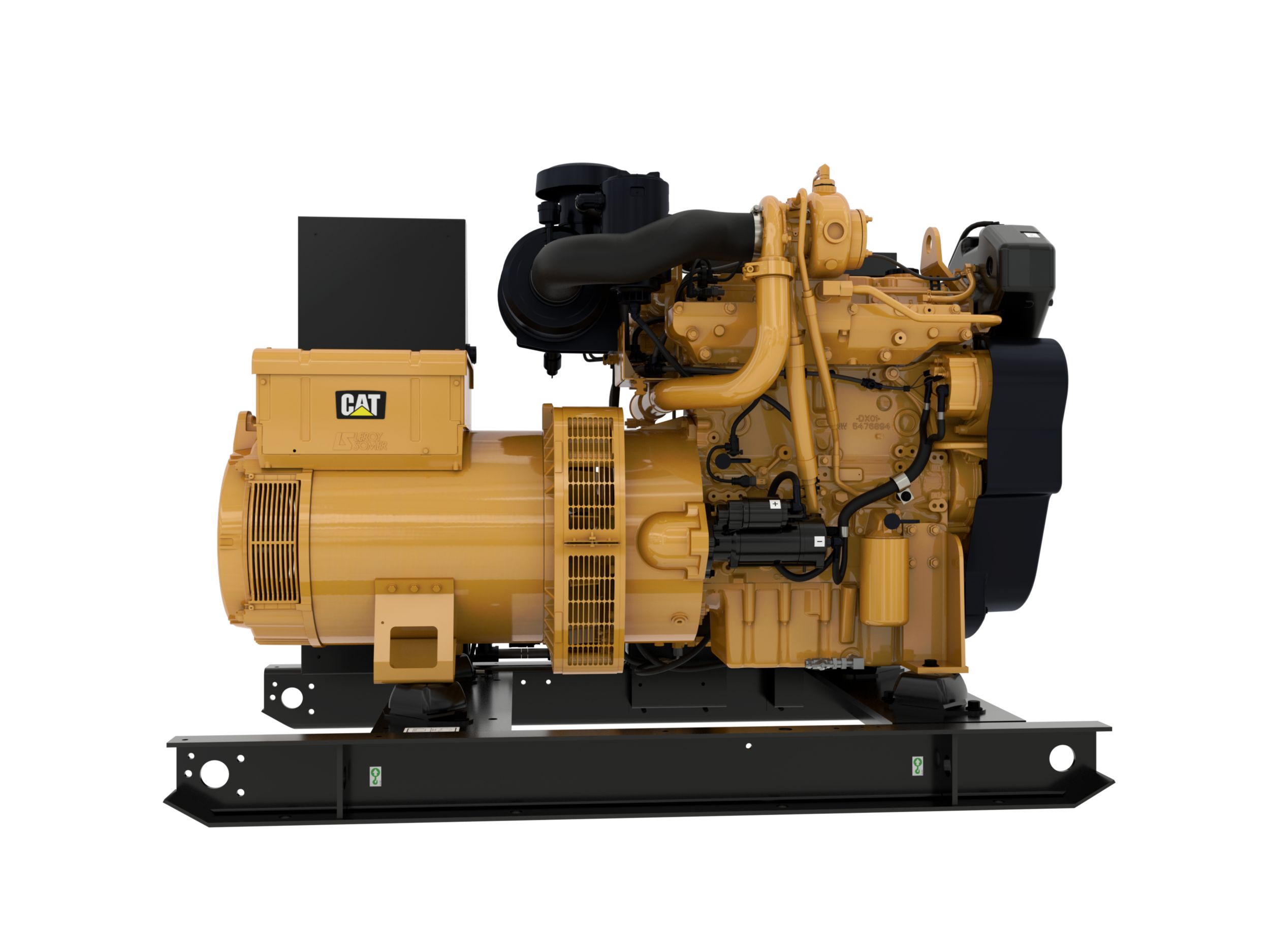

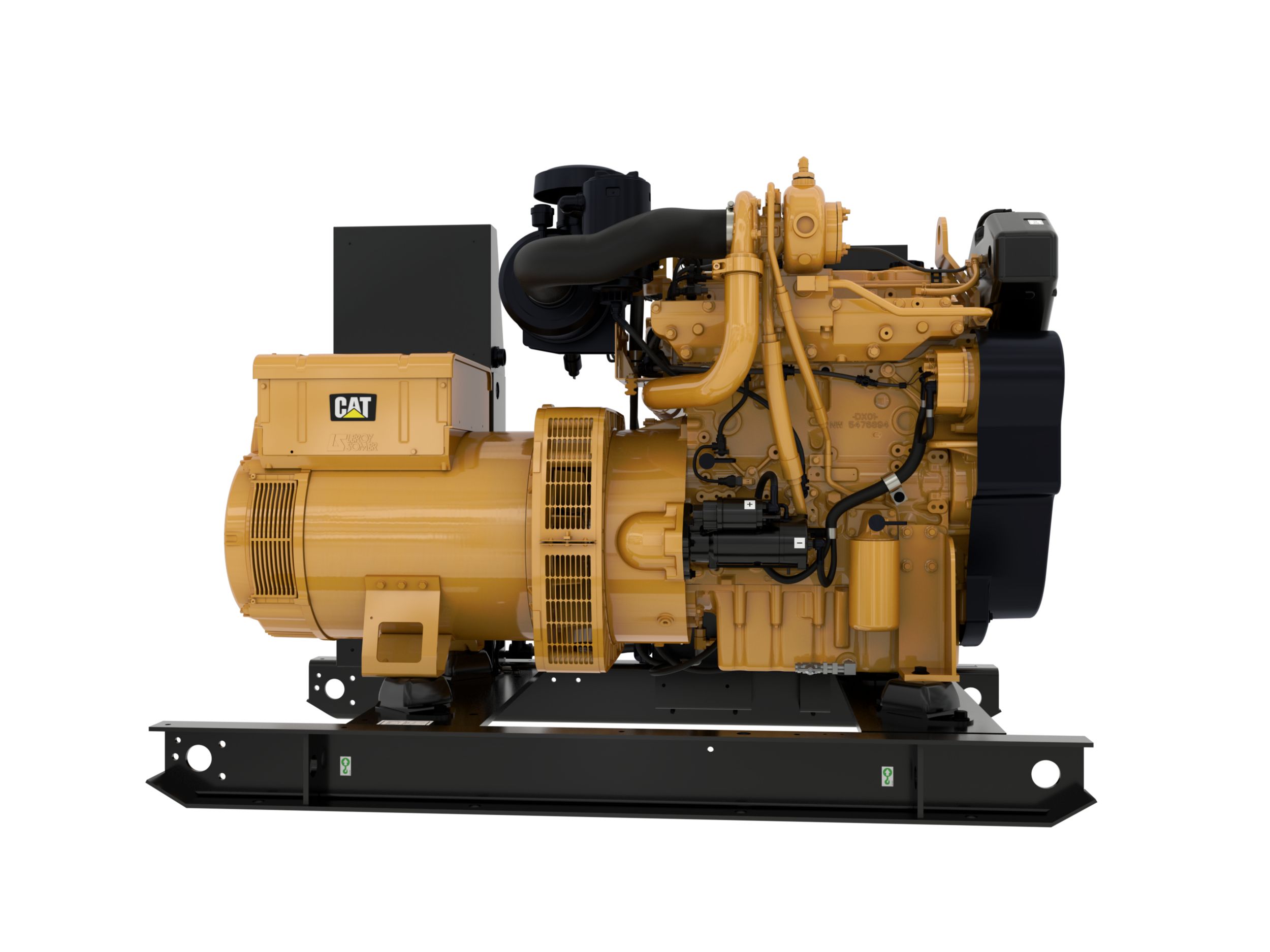

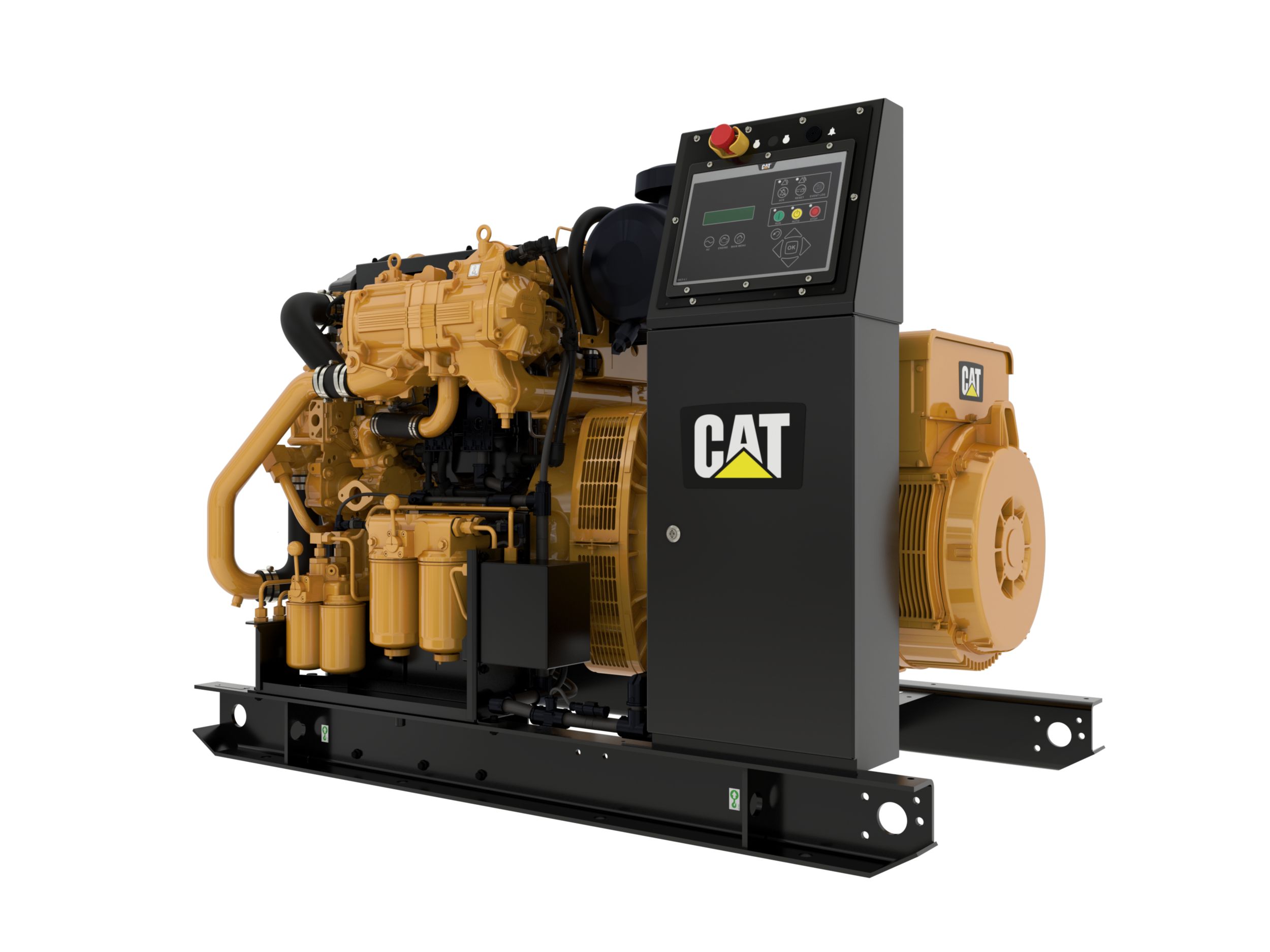

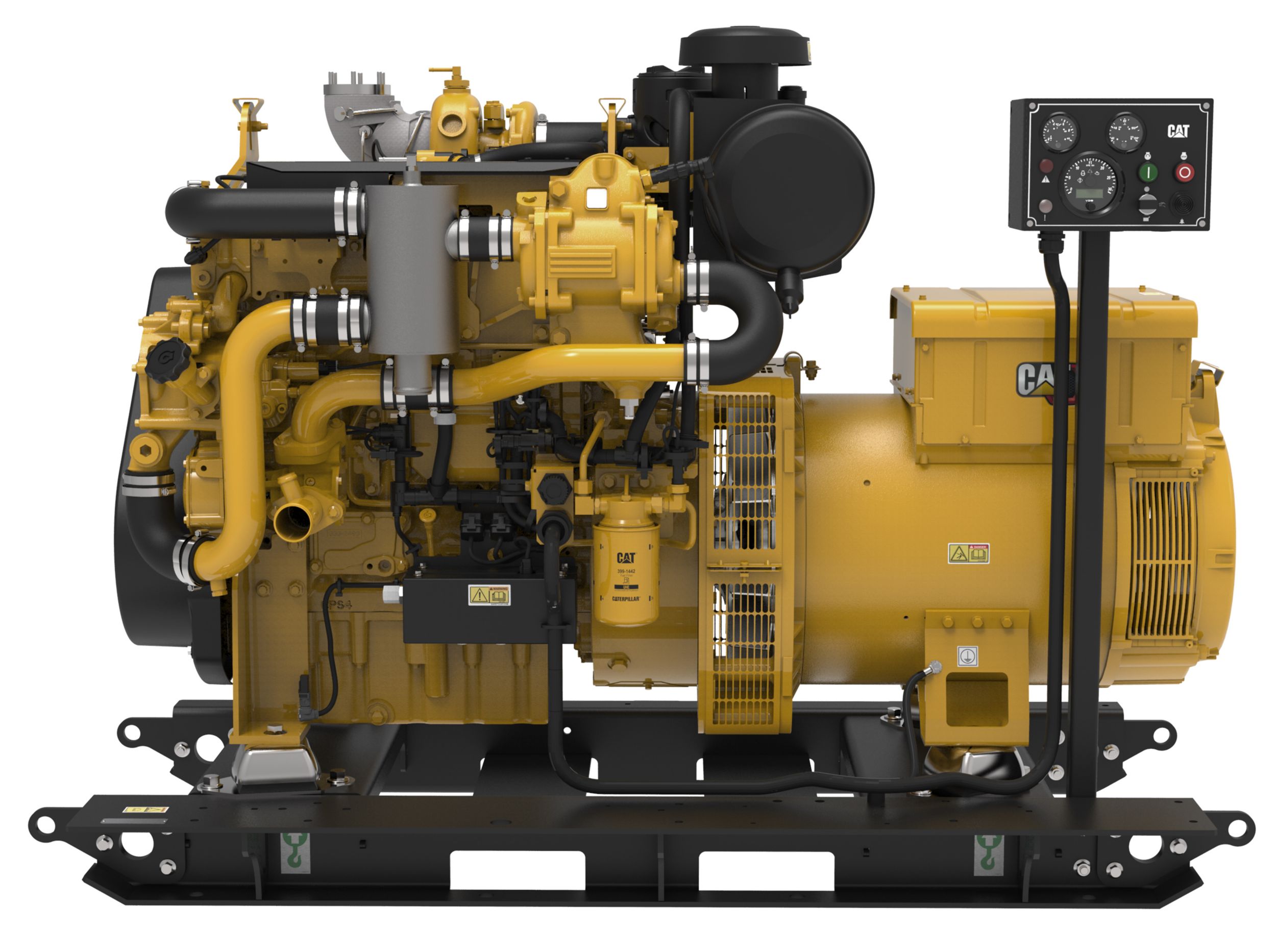

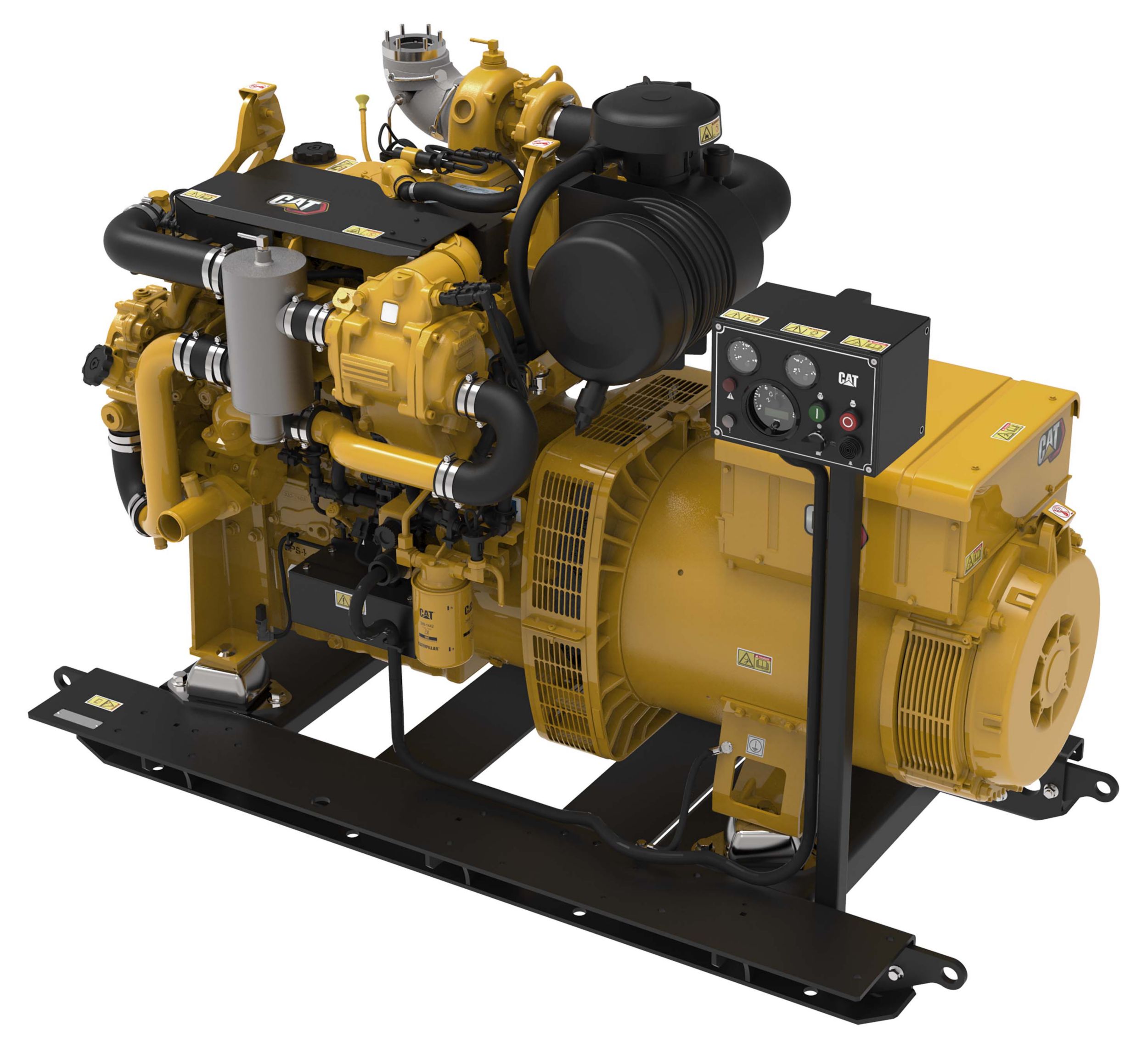

Marine Generator Sets

C4.4 (Electronic Control System)

Request A Quote
US
Metric

Overview

C4.4 (Electronic Control System)

Power Rating

Power Range
58.0R - 118 ekW

Generator Set Specifications

Frequency
50 / 60

Engine Specifications

Emissions
U.S. EPA Tier 3, EU Stage V
Aspiration
Turbocharged - Aftercooled and turbo only aspiration (Turbocharged aspiration only for 65ekW (71bkW))
Rated Engine Speed
1500/1800 rpm
Bore
4.13 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
269.00 in³
4.40 l
Governor
Electronic (A5 ECM)
Refill Capacity
Lube Oil System w/Oil filter change: 11 L 2.8 gal)
Oil Change Interval
500 hours
Cooling
Heat exchanger, combined circuit keel cooling, or separate circuit keel cooling
Flywheel Housing
SAE No. 03 with SAE 11.5 flywheel (126 teeth)

Dimensions & Weights

Maximum Length
80.20 in
2037.00 mm
Maximum Height
78.70 in
1999.00 mm
Maximum Width
38.30 in
986.00 mm
Maximum Engine Dry Weight
3389.00 lb
1537.00 kg

Engine Specifications

Configuration
In-line 4, 4-stroke-cycle diesel
Features

Easy to use

• Simplicity = Reliability
• Configure the engine how you want it
• Compact engine profile with high power density
• Ease of repower with multiple cooling system options: Single circuit keel cooling /Separate circuit keel cooling / Heat exchanger
• Clean, smooth, and quiet operations
• Advanced fuel system provides excellent fuel consumption and low smoke
• Proven core engine design with millions of operating hours
• Fewer maintenance touchpoints and longer service intervals
• Global dealer network for unparalleled support

Standard Equipment
  • Cooling System
    • Gear-driven jacket-water and auxiliary water pumps
    • Engine mounted air cleaner and expansion tank
    • Integral plate-type oil cooler
  • Exhaust System
    • Watercooled exhaust manifold and turbocharger
  • Fuel System
    • Common Rail fuel system
    • Electric fuel priming pump
  • Lube System
    • Open crankcase ventilation system
  • Mounting System
    • Engine mounted fuel and oil filter
    • Engine mounted customer interface and control relays
  • Starting System
    • 12 V or 24 V starter motor
    • 12 V or 24 V starter motor
  • General
    • Internal engine balancing shaft
    • Self-tensioning multi-vee belt drive
Optional Equipment
  • General
    • MGGP 200 Gauge Panel and interface harness
    • Engine shutdown sensors and shutdown controller
    • Jacket water connections (keel cooled)
    • Glow plugs
    • Jacket water heater
    • Oil & Coolant sample points
    • EMCP engine control panel
    • Double wall high pressure fuel lines
    • Exhaust elbow and bellows
    • Rear mounting feet
