Mobile Gas Solutions

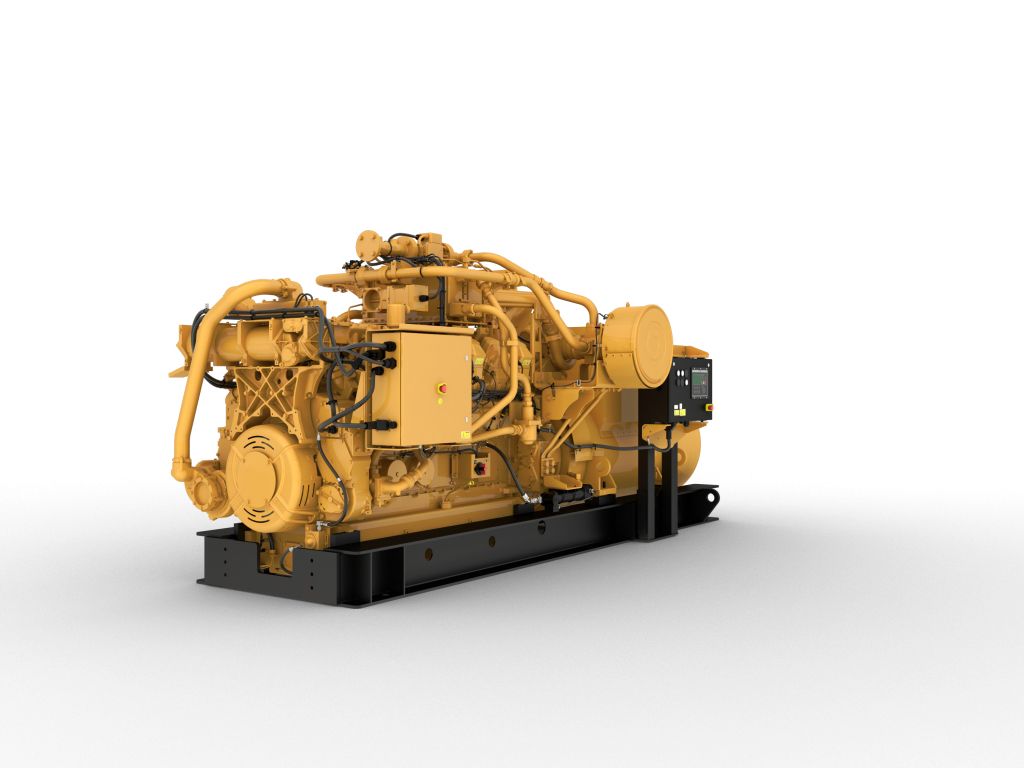

G3512

Request A Quote
US
Metric

Overview

Production of oil and gas in remote oilfields can be a challenge when utility power is not available. The Caterpillar product line of oilfield gas generator sets provides the ideal solutions for this challenge. Engines are designed to run on low to no-cost well site gas without sacrificing on performance. These generator sets allow customers to significantly reduce fuel cost and avoid the expense and logistics of diesel fuel deliveries. Plus, they are designed to withstand the harsh conditions in the oilfield and feature a heavy-duty construction ideal for loading and unloading operations. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.Ratings: 1095 bkW (1468 bhp) @1800 rpm.

Engine Specifications

Emissions/Fuel Strategy
U.S. EPA Tier 2 S.I. Non Road Mobile
Aspiration
Turbocharged-2 stage after cooled
Bore
6.70 in
170.00 mm
Stroke
7.50 in
190.00 mm
Displacement
3173.00 in³
52.00 l
Engine Control and Protection
Electronic (ADEM 4)
Generator Set Control
EMCP 4.4 Control Panels
Frequency - Speed
60 Hz

Dimensions

Length
196.00 in
4979.30 mm
Width
84.80 in
2154.40 mm
Height
89.60 in
2277.10 mm

Engine Specifications

Fuel System
Electronic Fuel Control Valve
Features

Genset Design

  • Meets U.S. EPA Large SI Tier 2.*
  • Genset designed to be paired with the Cat® energy storage system for a complete drilling factory solution
  • Engine design built on the G3500 platform with proven reliability and durability
  • EMCP 4.4 shipped standard • Jacket water and lube oil heaters shipped standard
  • Rugged package base designed for oil fields

Emissions

Lean air/fuel mixture provides best available emissions and fuel efficiency for engines of this bore size

Advanced Digital Engine Management

ADEM™4 (A4) engine management system integrates speed control, air/fuel ratio control, and ignition/detonation controls into a complete engine management system. The ADEM™4 (A4) has an improved: user interface, display system, shutdown controls, and system diagnostics.

Full Range of Attachments

Large variety of factory-installed package attachments reduces packaging time

Testing

Every genset is full-load tested to ensure proper package performance.

Standard Equipment
  • Air Inlet System
    • Air cleaner, intermediate duty, with service indicator and air filter differential pressure sensors
  • Cooling System
    • Jacket water outlet- right hand flange connection
    • Jacket water pump, gear driven, centrifugal, non - priming
  • Exhaust System
    • Dry exhaust manifold
  • Fuel System
    • 10-35 kPag gas supply
  • Instrumentation
    • EMCP 4.4
    • ADEM™4
  • Lubrication System
    • Crankcase breather - top mounted
    • Prelube pump
    • Simplex oil filter
    • Standard Oil Pan
Optional Equipment
  • Air Inlet System
    • Pre-cleaners
  • Charging Alternator
    • Charging alternator 24V, 35A
  • Connections
    • Left hand flanged jacket water connection
  • Exhaust System
    • Exhaust weld flange
  • Fuel System
    • Gas train
  • Lubrication System
    • Electric prelube
    • Air prelube
    • Oil level regulator
    • Oil drain
  • Starting System
    • Barring group
    • Right hand air starter
