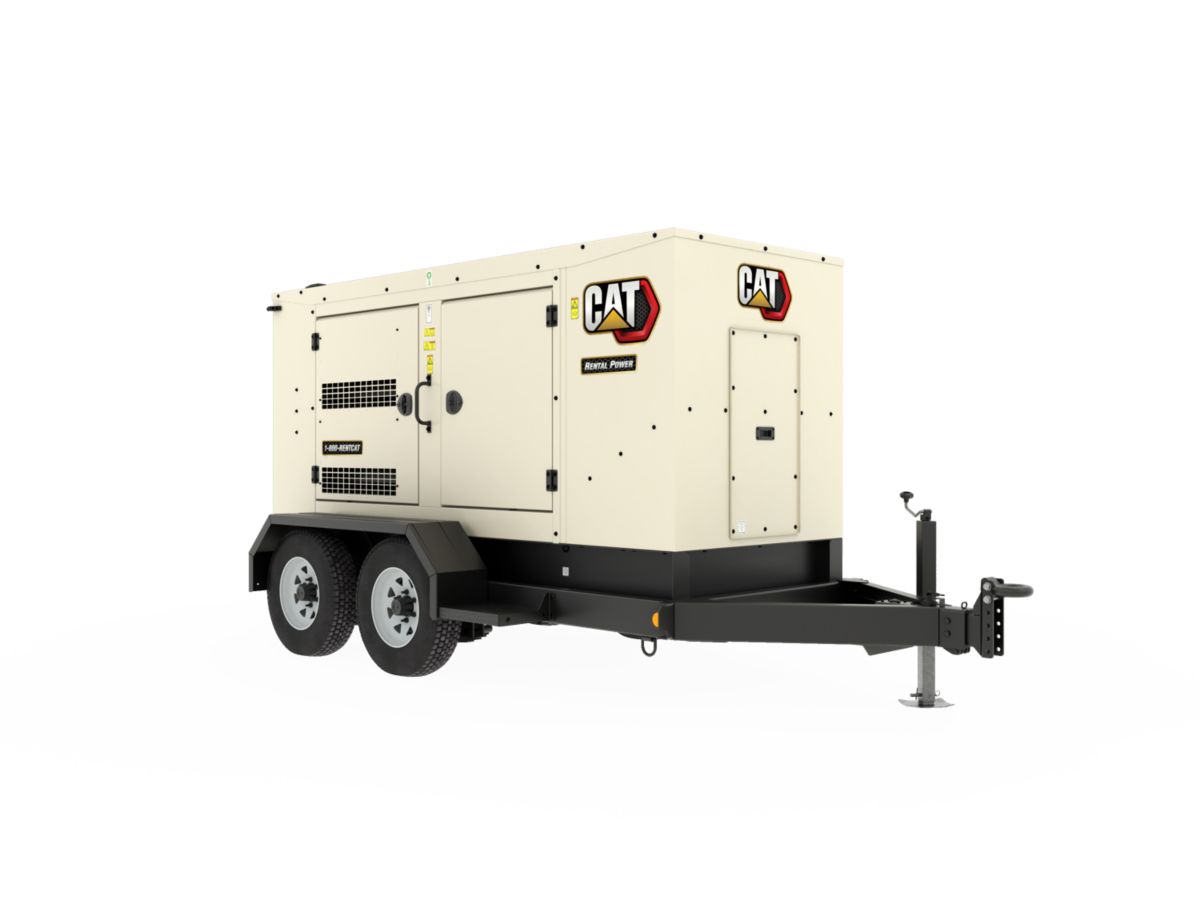

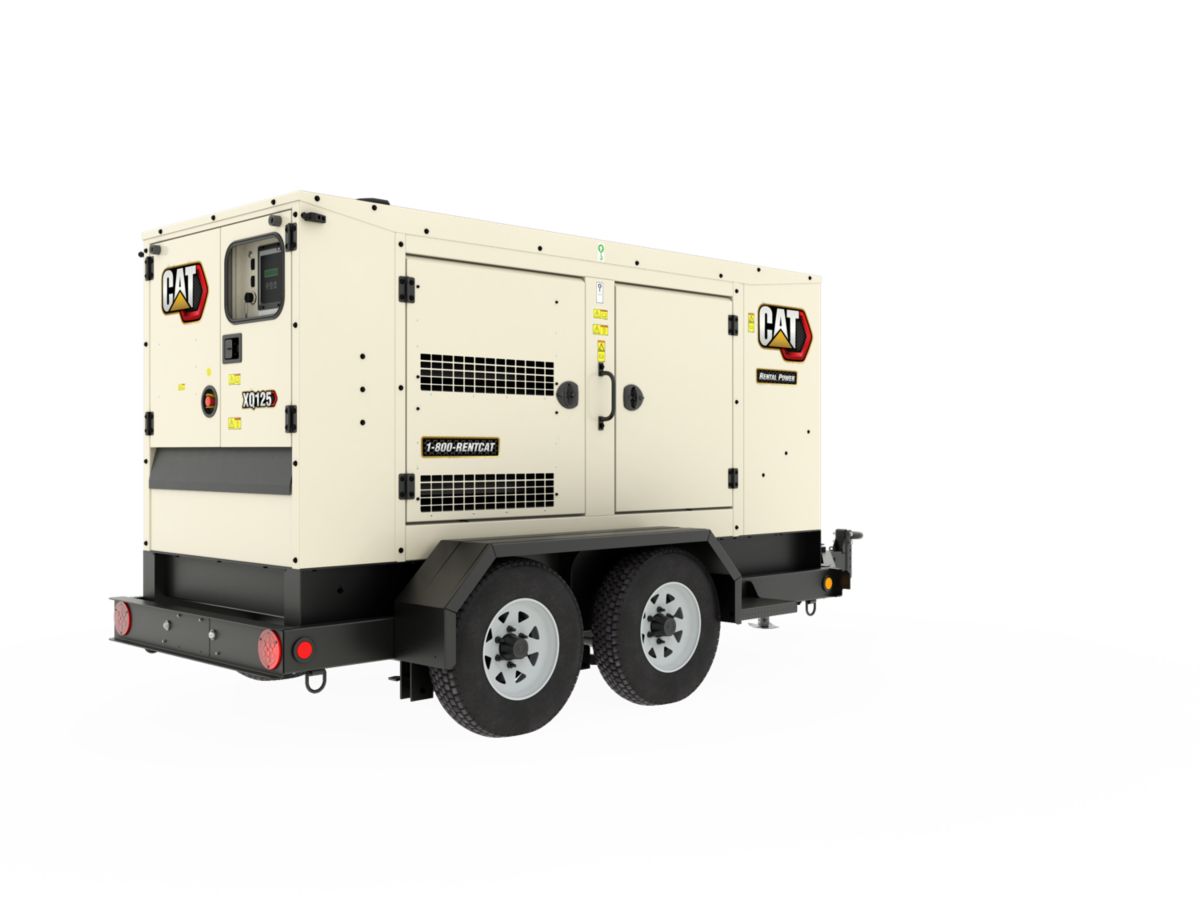

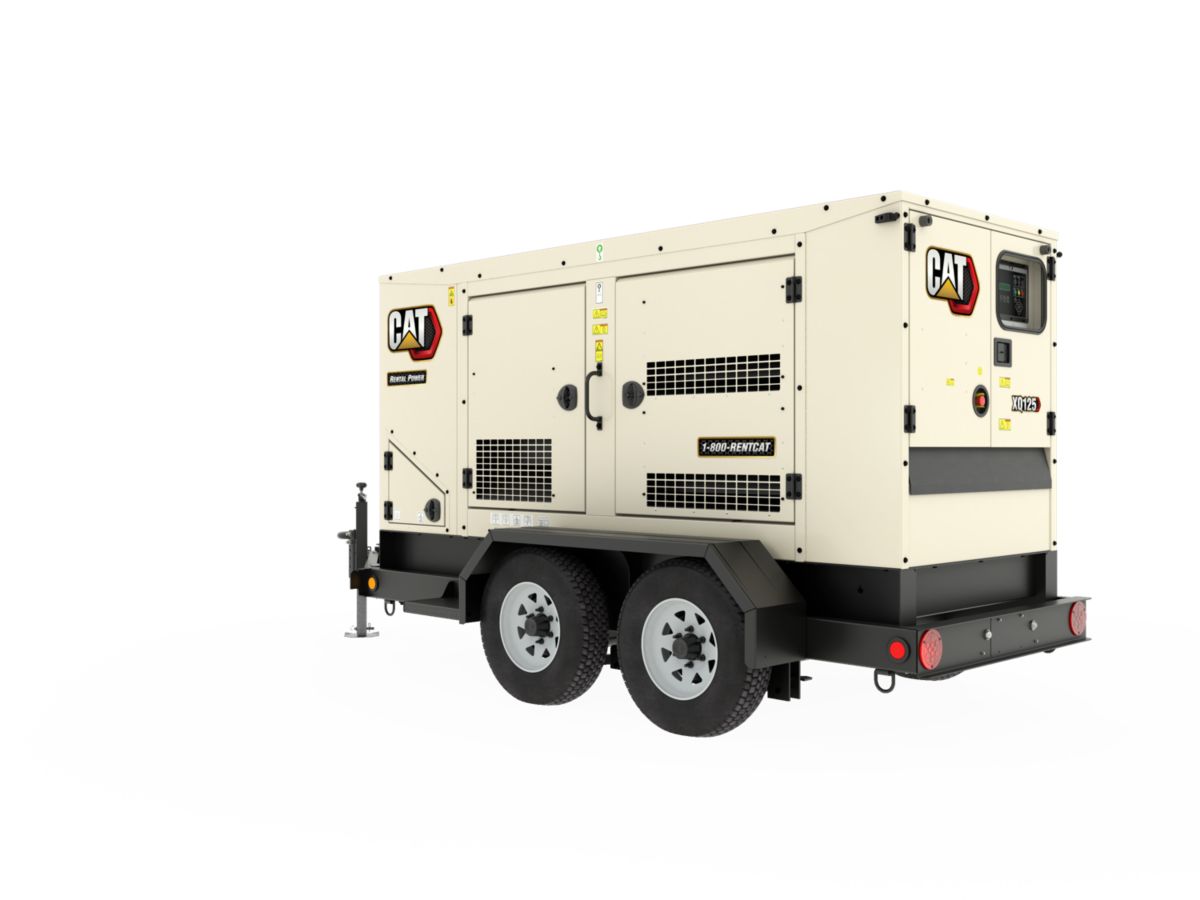

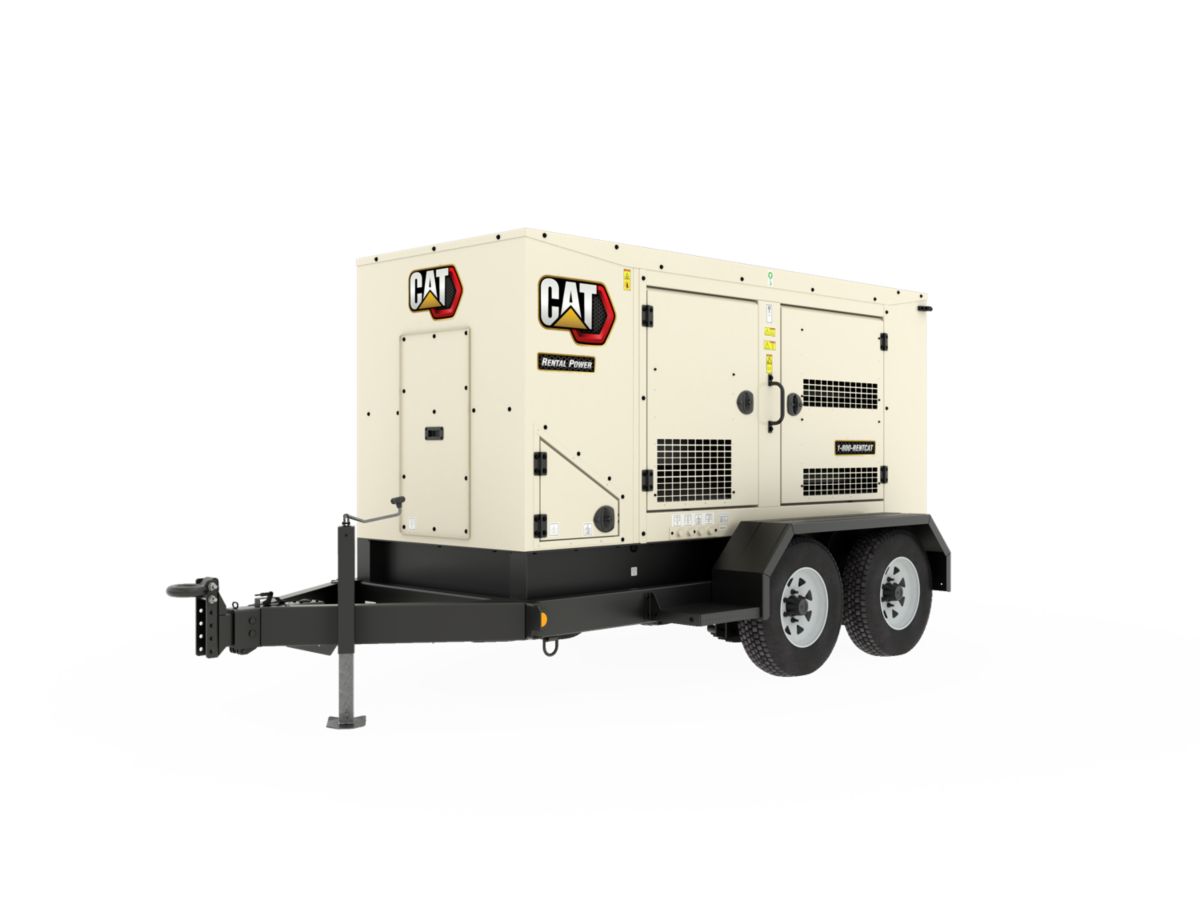

XQ125 Rental Power
US
Metric
Overview
Generator
Rating
80 ekW (125 kVA) Prime
Voltage
120 - 480 V
Generator Set
Frequency
60 Hz
Engine
Engine
C4.4 ACERT
Fuel
Diesel
Dimensions
Width
49.00 in
1244.60 mm
Height
73.00 in
1854.20 mm
Length
127.00 in
3225.80 mm
Weight
5230.00 lb
2372.30 kg
Generator
Rating
100 ekW (125 kVA)
Generator Set
Voltage
120 - 600V
Dimensions
Width
49.00 in
1244.60 mm
Height
73.00 in
1854.20 mm
Length
127.00 in
3225.80 mm
Weight
5230.00 lb
2372.00 kg
Generator
Rating Standby
110 ekW (137 kVA)
Dimensions
Height - Without Trailer
73.00 in
1858.00 mm
Length - Without Trailer
127.00 in
3222.00 mm
Width - Without Trailer
49.00 in
1244.00 mm
Fuel Consumption Prime
100% Load 60Hz Prime
7.50 gal/hr
28.40 l/hr
75% Load 60Hz Prime
5.51 gal/hr
20.90 l/hr
50% Load 60Hz Prime
3.80 gal/hr
14.40 l/hr
Fuel Consumption Standby
100% Load 60Hz Standby
8.30 gal/hr
31.30 l/hr
Generator
IPP Rated 60Hz
65 dB(A)
Noise rating (with enclosure)
Sound Power @ 7 meters (23 feet) @ Standby Rating
66 dB(A)
Sound Power @ 7 meters (23 feet) @ Standby Rating
66 dB(A)
Generator Set
Rating Prime
100 ekW (125 kVA)
Rating Standby
110 ekW (137 kVA)
Fuel Consumption
100% Load 60Hz
7.50 gal/hr
28.40 l/hr
75% Load 60Hz
5.51 gal/hr
20.90 l/hr
50% Load 60Hz
3.80 gal/hr
14.40 l/hr
100% Load 60Hz
8.30 gal/hr
31.30 l/hr
Noise rating (with enclosure)
Sound Power @ 7 meters (23 feet) @ Prime Rating
65 dB(A)
Sound Power @ 7 meters (23 feet) @ Standby Rating
66 dB(A)
Dimensions
Weight with Lube Oil and Coolant, Without Trailer
5230.00 lb
2372.00 kg
Features
Rental ready
Robust, durable product with a range of rental ready features to meet job requirements and applications.
Fuel/Emissions Strategy
Meets U.S. EPA Tier 4 Final emission standards and CARB certified for non-road mobile applications at all 60 Hz ratings
Cat C4.4 Diesel Engine
Industry proven reliability
CAT EMCP4.2B digital controls
Easy to use digital controls
Cat LC Series Generator
Integrated voltage regular for fast response in demanding applications
Sound Isolated Operator panel
Improved operator comfort
Cat Connect
Remote monitoring for fleet management and asset tracking
Factory designed, built and tested
Single-source Supplier
World Wide Product Support
Supported by an industry leading global dealer network
500 hr oil change intervals
Reducing operating costs and producing less waste
Improved transportability
Lifting frame, 4 point lift and trailers
Power Distribution
Distribution sockets
Additional options
Synchronising controls.
Extended Service interval kits
600V generator
208V 3-phase NEMA Sockets
Standard Equipment
- CAT C4.4 Diesel Engine
- Heavy-duty.
Turbocharged.
After treatment.
- Heavy-duty.
- Generator
- LC3114F frame.
- Control Panel
- Digital EMCP4.2B set mounted controller.
- Cat Connect remote monitoring
- Provides package monitoring and management.
- Cooling System
- Package mounted radiator with vertical air discharge.
Filled from factory.
- Package mounted radiator with vertical air discharge.
- Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator.
- Fuel System
- 24hr dual wall fuel tank with 3 way directional valve for external supply.
- Air Filter
- Cyclonic/paper with dust cup and service indicator.
- Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
- Structure
- Heavy Duty steel base frame with integral fuel tank.
Lifting frame and 4 point lift.
Base frame is wider than enclosure to protect generator set during transportation.
- Heavy Duty steel base frame with integral fuel tank.
- Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
- Exhaust
- Integrated spark arresting silencer.
- Lube Oil
- On engine primary and secondary oil filters. Filled from factory.
- General
- Factory tested and inspected.
