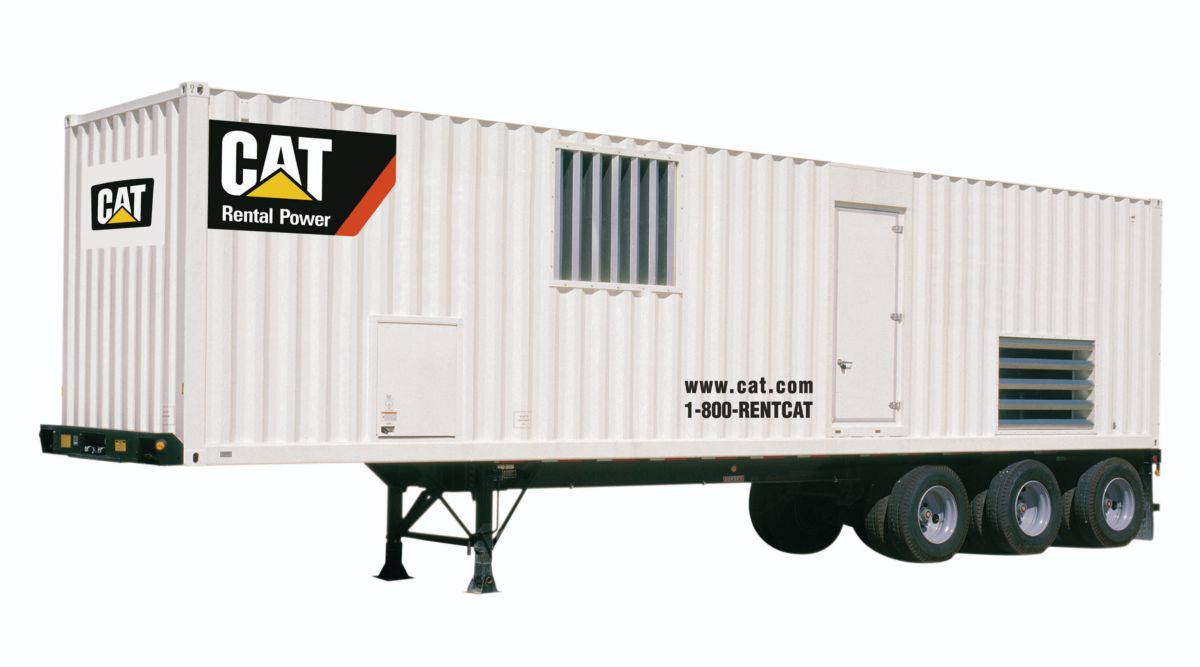

XQ2000
US
Metric
Overview
Generator
Rating (1)
1400 ekW (1750 kVA) Continuous
Rating (2)
1600 ekW (2000 kVA) Prime
Frequency
50 Hz
Voltage
240 - 480 V
Dimensions
Height - With Chassis
168.00 in
4267.00 mm
Height - Without Chassis
114.00 in
2896.00 mm
Length - Without Chassis / With Chassis
480.00 in
12192.00 mm
Weight - With Chassis, Lube Oil and Coolant
74000.00 lb
33638.00 kg
Weight - Without Chassis, With Lube Oil and Coolant
64000.00 lb
29021.00 kg
Width - Without Chassis / With Chassis
97.50 in
2438.00 mm
Engine
Emissions
Non-Certified
Fuel System
EUI
Governor Type
Cat ADEM A4 Control System
Features
Single Source Supplier
- Generator set manufactured in ISO 9001:2000 compliant facility
- Package factory designed and production tested
- Generator set and components meet or exceed the following specifications: AS1359, AS2789, BS4999, DIN6271, DIN6280, EGSA101P, JEM1359, IEC 34/1, ISO3046/1, ISO8528, NEMA MG1-22
Worldwide Product Support
- Cat® dealers provide extensive post sale support including maintenance and repair agreements
- Supported 100% by your Cat dealer with warranty on parts and labor
Reliable, Fuel Eficient Diesel Engine
- The compact, four-stroke-cycle Cat 3516B turbocharged-aftercooled diesel engine combines durability while providing dependability and economy
- Stainless steel engine aftercooler core to extend component, oil, and overall engine life when using gaseous fuels with elevated H2S levels
- Fuel system operates on a variety of gaseous fuels
- Integral gas train, gas filter, and isolation valve
- Includes methane detection system and related safeties
Cat Generator
Cat SR4B 826 frame generator designed to match the performance and output characteristics of the Cat diesel engine
Double bearing, wye-connected, static regulated, brushless, permanent magnet excited
Reduced Environmental Impact
- 110% spill containment of onboard engine fluids
- Positive crankcase fumes ventilation
Sound Attenuated Container
- Provides 9-high stack CSC rated enclosure for ease of transportation and protection
- Meets 75 dB(A) at 15 meters or below per SAE J1074 measurement procedure at prime rating
Dynamic Gas Blending (DGB) System
- Requires gas inlet pressure range of 5-35 psi (34-241 kPa)
- Achieves up to 70% substitution, depending on gas quality, while maintaining diesel performance and safe engine operation
- Closed loop control system enables maximum substitution over the widest load range in the industry
- Maintains traditional diesel generator set power and transient response performance
- DGB system, when enabled, can automatically activate when gas supply is detected
- Accepts a wide range of gas quality and automatically adjusts to fuel quality changes, eliminating the need for field calibration
- Leverages current hardware from G3516 product line while minimizing changes to core diesel engine
- Fully integrated diesel and gas controls into single engine control unit with single point operation for generator set and DGB system
Cat Cooling System
- Horizontally mounted radiator with vertical discharge with high efficiency fan
- Provides 43C (110F) ambient capability
- Variable frequency drive fan controls improve partial load fuel consumption
On-Package Paralleling Control System
- Provides auto paralleling using package mounted controls
- EMCP 4.3 offers engine and generator monitoring and protection, including DGB enable and substitution level set points
- AGC-4 provides paralleling, load sharing, VFD control, and primary generator protection
Digital Voltage Regulator (Cat DVR)
- 3 phase sensing and adjustable V/Hz regulation
- Provides precise control, excellent block loading, and constant voltage in the normal operating range
Standard Equipment
- Engine
- Cat 3516B heavy duty flex fuel engine
- Heavy duty, single element canister type air cleaner with service indicator
- Fuel filters – primary and duplex secondary with integral water separator and change-over valve
- Spin on, full flow oil filters with water cooled oil cooler. Requires API CF-4 lube oil
- Stainless Steel Aftercooler core
- Jacket water heater, 9kW, 400V, 50 Hz, 3-phase w/isolation valves
- Fuel cooler and priming pump
- Electronic ADEM™ A4 controls
- Integrated Sensor Module (ISM) for combustion sensing and exhaust gas sensing
- Dual 24V electric starting motors
- Generator
- Double bearing SR-4B brushless, form wound, permanent magnet excited, three-phase with Cat digital voltage regulator (Cat DVR), space heater, 6-lead design, Class H insulation operating at Class F temperature for extended life, winding temperature detectors and anti-condensation space heaters (120/240V 1.2 kW).
- Generator equipped with System 4 insulation protection.
- Containerized Module
- 40' ISO high cube container, 9-High stack CSC certified
- Four (4) sound attenuated air intake louvers and 3 lockable personnel doors with panic release
- Interior walls and ceilings insulated with 100 mm of acoustic paneling
- Floor of container insulated with acoustic glass and covered with galvanized steel
- Side bus bar access door, external access load connection bus bars
- Shore power connection via distribution block connections for jacket water heater, battery charger, space heaters, and generator condensate heaters
- Six (6) DC lights
- 1,250 gal fuel tank, UL listed, double wall, >13 hr runtime @ Continuous rating
- Solenoid diesel fuel fill control valve
- Lube oil level regulator with makeup tank
- Sound attenuated 75 dB(A) @ 15 m (50 ft)
- Four (4) oversized maintenance-free batteries, battery rack and 20-Amp battery charger
- Critical grade exhaust silencer with dual 2 m (6.5 ft.) exhaust stacks for increased site power density
- Vibration isolators, stainless steel fastening hardware and hinges
- External drain access to standard fluids
- One 4.5 kg (10lb) carbon dioxide fire extinguisher
- Standard Cat rental decals and painted standard Cat power module white
- 110% spill containment system for on-board engine fluids
- Methane Leak Detection
- Gaseous Fuel System
- Low pressure regulator
- Electronically actuated fuel control valve
- Gaseous fuel heater
- Electronically controlled gas shut-off valve
- Gas induction nozzles
- 1 micron gas fuel filter with dP sensors and isolation ball valve with 1” BSP drain plug for fluid build-up
- CSA certified gas electronic components
- Cooling
- Standard cooling provides 43C (110F) ambient capability at 100% Prime
- Horizontally mounted radiator with vertical air discharge
- Variable frequency fan drive (VFD) for optimal partial load fuel consumption
- Generator Controls and Protection
- Controls provide auto paralleling AGC-4 controller, voltage and frequency adjust, base load / PF / load sharing / synchronizer, auto start / stop control & generator CB control, SCADA Interface (Ethernet), fuel level indications & alarms, fuel tank fuel transfer control
- EMCP 4.3 genset mounted controller
- Automatic start/stop with cool down timer
- Generator Protection features: 25, 32, 40, 50/51, 27/59, 81 O/U
- Reverse compatibility for interface to legacy power modules
- 3000A UL rated generator circuit breaker with LSIG trip unit w/ammeter
- Multi-mode operation (island, multi-island and utility parallel), load sharing (multi-unit only)
- Manual and automatic paralleling capability
- Metering display: voltage, current, frequency, power factor, kW, WHM, kVAR, and synchroscope
- Quality
- Factory testing of standard generator set and complete power module
- UL, NEMA, ISO and IEEE standards
- O&M manuals
- EMCP 4.3 Local Control Panel
- Generator mounted EMCP 4.3 provides power metering, protective relaying and engine and generator control and monitoring.
- Convenient service access for Cat service tools (not included).
- Integration with the Cat DVR provides enhanced system monitoring.
- Ability to view and reset diagnostics of all controls networked on J1939 datalink eliminates need for separate service tools for troubleshooting.
- Real-time clock allows for date and time-stamping of diagnostics and events.
- Customer communication through Modbus TCP
- True RMS AC metering, 3 phase: L-L volts, L-N volts, Phase, Amps, Hz, ekW, kVA, kVAR, kWHr, % kW, PF
- EMCP 4.3 Engine Operator Interface
- Graphical display with positive image, transflective LCD, adjustable white backlight/contrast.
- Digital indication for
- RPM
- DC Volts
- Operating hours
- Oil pressure
- Coolant Temperature
- Oil Temperature
- Gas Pressure
- Gas Substitution %
- Gas Shutoff Valve status
- DGB Activation
- Two LED status indicators (1 red, 1 amber)
- Engine cool-down timer
- Engine cycle crank
- Three engine control keys and status indicators (Run/Auto/Stop).
- Lamp test and Alarm acknowledgement keys
- Warnings/shutdowns with indicating text for:
- Low oil pressure
- Overspeed
- High Oil Temperature
- Overcrank
- Emergency stop
- AGC-4
- Emergency stop pushbutton
- Display navigation keys including two shortcut keys for Engine Parameters or Generator Parameters
- Container
- 40' ISO high cube container, CSC 9-High Stack Certified
- Painted standard Cat Power Module White per Caterpillar Specifications
- Standard air intake louvers
- Three (3) lockable personnel doors with panic release
- Fire extinguisher
- 110% spill containment system for on-board engine fluids
- AGC-4/EMCP 4.3 Protective Relaying
- Generator protective features
- 25 sync-check ( AGC-4)
- 32 rev. power (EMCP 4.3 and AGC-4)
- 40 loss of excitation (Cat DVR and AGC-4 impedance based)
- 50/51 Inst. and time overcurrent (GCB trip unit and AGC-4)
- 47 Negative Voltage Sequence (AGC-4)
- 46 Negative Sequence Current (AGC-4)
- 27/59 phase under/over voltage (EMCP 4.3 and AGC-4)
- 81O/U under/over frequency (EMCP 4.3 and AGC-4)
- Package mounted AGC-4 controls provides auto paralleling, CAN-bus, Ethernet communications, PWM and Analog outputs, and legacy analog load sharing (real and reactive)
- AGC-4 main display/ AOP secondary display
- Generator protective features
- Voltage Regulation and Power Factor Control Circuitry
- Generator mounted automatic voltage regulator, microprocessor based.
- Manual raise/lower voltage adjust capability and VAR/power factor control circuitry, all via AGC- 4, for maintaining constant generator power factor while paralleled with utility
- Includes RFI suppression, exciter limiter and exciter diode monitoring.
- Current Transformers
- CT's rated 3000:5 with secondaries wired to shorting terminal strips.
- Circuit Breaker
- 3000A fixed type, 3 poles, genset mounted, electrically operated, insulated UL489 CB.
- Solid state trip unit for overload (time overcurrent) and fault (instantaneous) overcurrent protection. LSIG is standard.
- Includes DC shunt trip coil activated on any monitored engine or electrical fault, 100 KAinterrupting capacity at 480 VAC.
- Undervoltage Release 24vdc
- Optional External Ground fault sensing/trip (requires additional ground CT)
- Internal Lighting
- Six (6) internal 24VDC LED lights with timers located at the control area personnel door
- One (1) duplex service receptacle
- Battery Charger and Batteries
- 24 VDC/20A battery charger with float/equalize modes and charging ammeter
- Four oversized maintenance free batteries
- Emergency Stop Pushbutton
- Single emergency stop pushbuttons (ESP) located on rear face of generator set controls area
- Emergency Stop pushbutton located on the container exterior at each personnel door(3)
- Exhaust Silencer
- Critical grade, internally mounted, dual cylindrical exhaust silencers
- 2 m high vertical discharging exhaust stack located in radiator discharge area
- Fuel Tank
- UL Listed 1250 gallon double walled tank
- Fuel solenoid valve system
- Triple fuel/water separators
- Modes of Operation
- Provides for single unit stand-alone operation, island mode paralleling and load sharing with other power modules, and single unit-to-utility mode paralleling for base load control (with open transition between paralleling modes)*
- Island mode paralleling features:
- AGC-4 control allows single unit to connect to a dead bus
- Auto synchronization (voltage & phase matching)
- Load sharing (kW) analog signal (like units & legacy compatible)
- Load sharing (kVAR) analog signal (like units only)
- Utility mode paralleling features:
- Auto synchronization (voltage & phase matching)
- Base-load control (selectable: programmable set-point or potentiometer adjust)
- Soft load/unload (programmable, shared setpoint)
- Power Factor control (programmable setpoint)
- Bus Bars
- Three phase, plus full rated neutral, bus bars are tin-plated copper with NEMA standard hole pattern for connection of customer load cables and generator cables.
- Bus bars are sized for full load capacity of the generator set at 0.8 power factor.
- Includes ground bus, tin-plated copper, for connection to the generator frame ground and field ground cable.
- AC Distribution
- 3 phase, 400VAC, 50 Hz, 50 amp input which can be derived from either the Power Module main output bus (Internal) or customer supplied shore power (External) via selector switch.
- Onboard 50 Hz Transformer for the Power Module AC auxiliaries provides 240/120 VAC for all module accessories except Jacket water heater (400V). Includes controls to de-energize jacket water heaters and generator space heater when the engine is running
- Lube Oil Make-Up System
- Includes oil pan-mounted oil level regulator and 114 L (30 gal) oil tank for maintaining oil pan levels in extended run applications. Oil tank can be remotely filled without shutting down the engine.
Optional Equipment
- Trailer
- Three axle with Anti-lock brake system
- Goodyear G314 295/75R225 Load Range G
