Overview

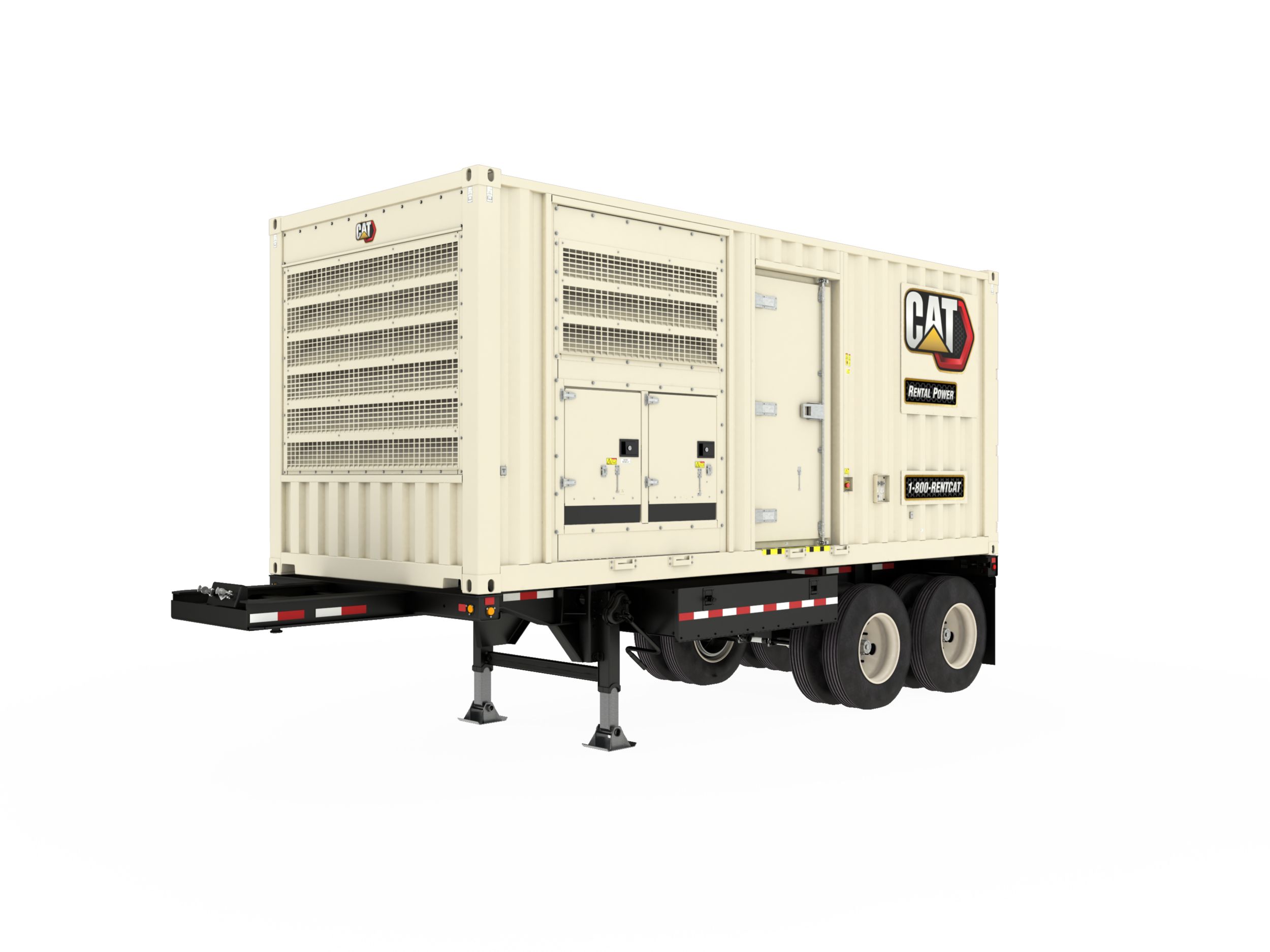

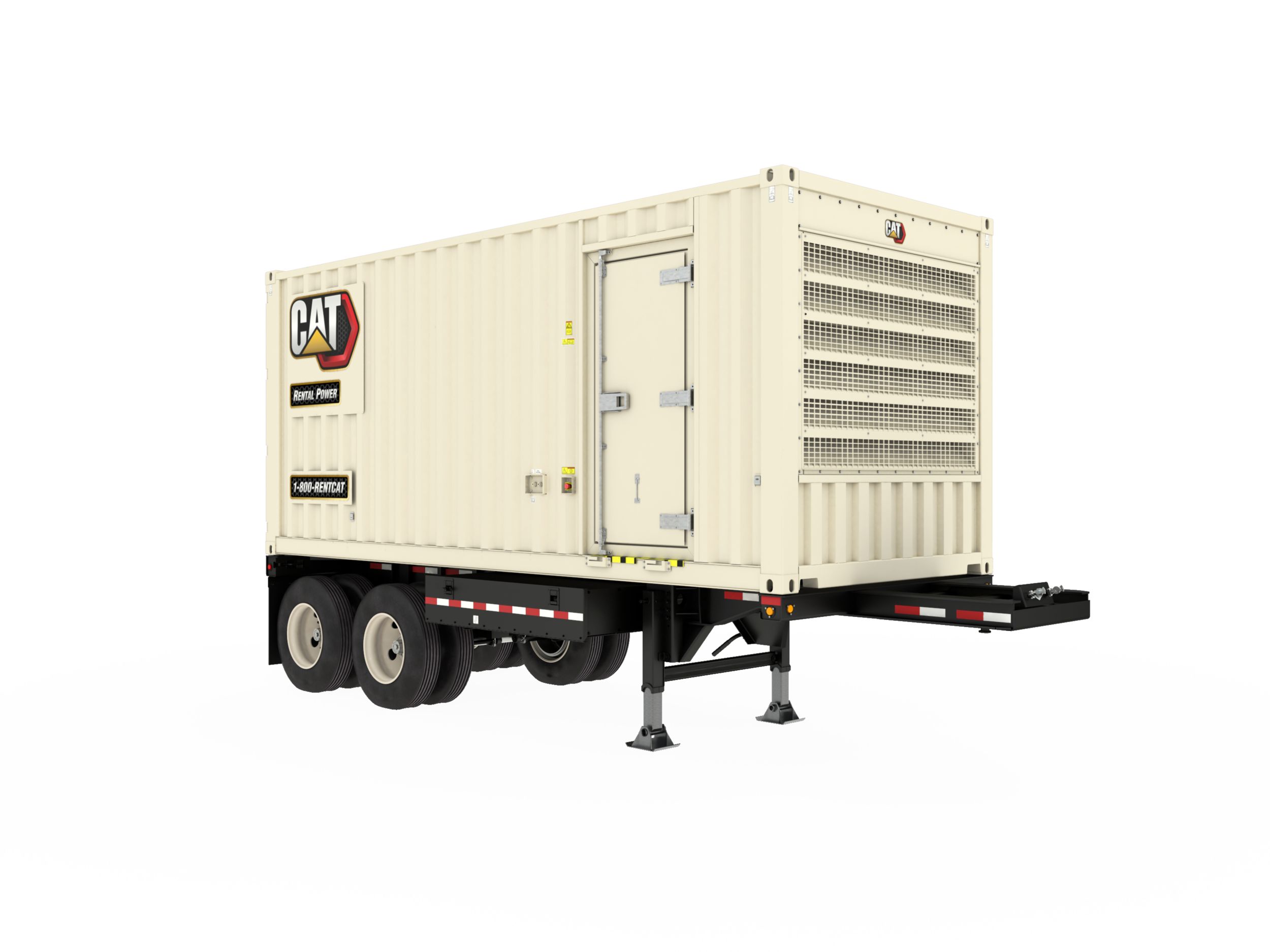

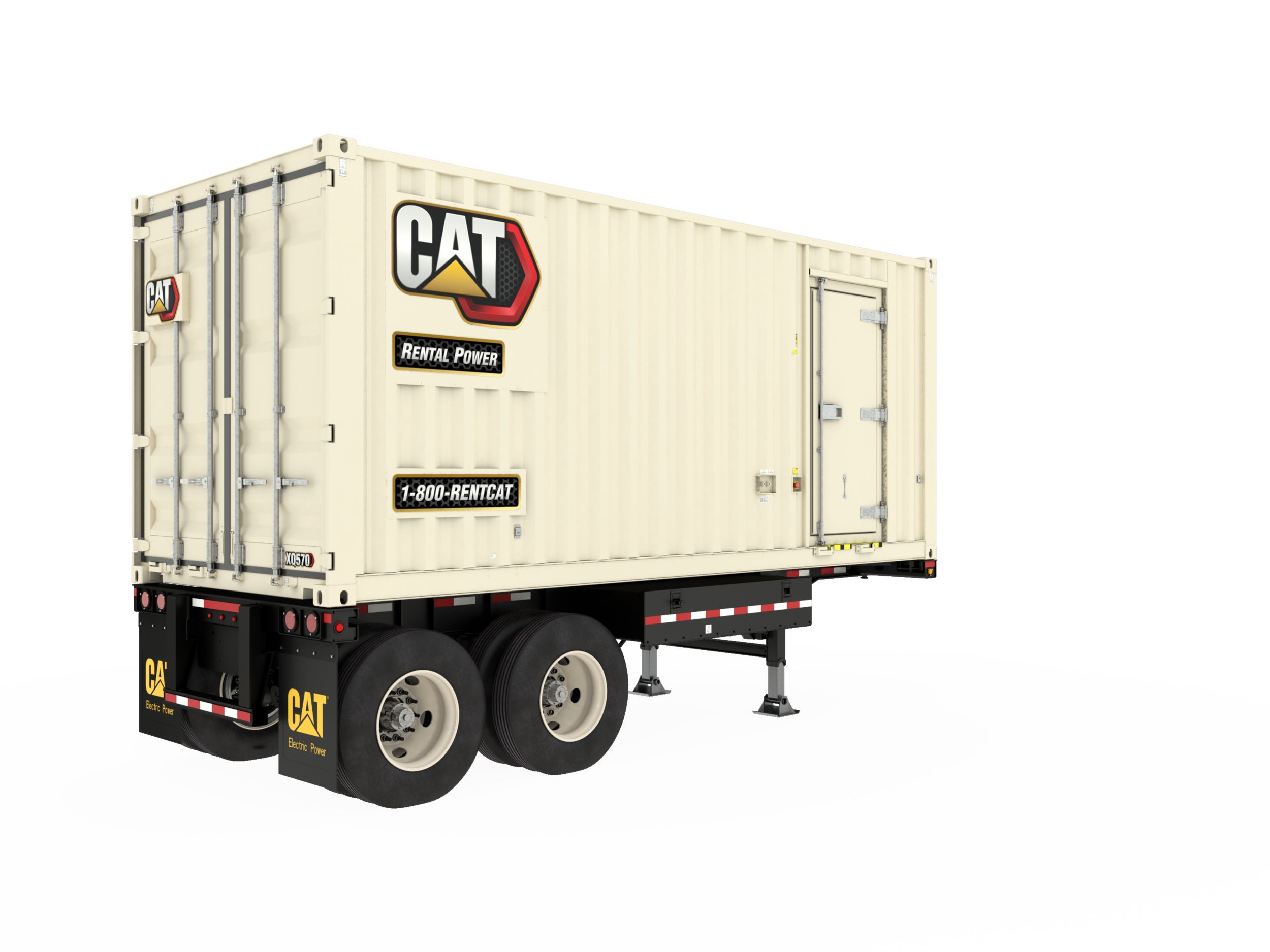

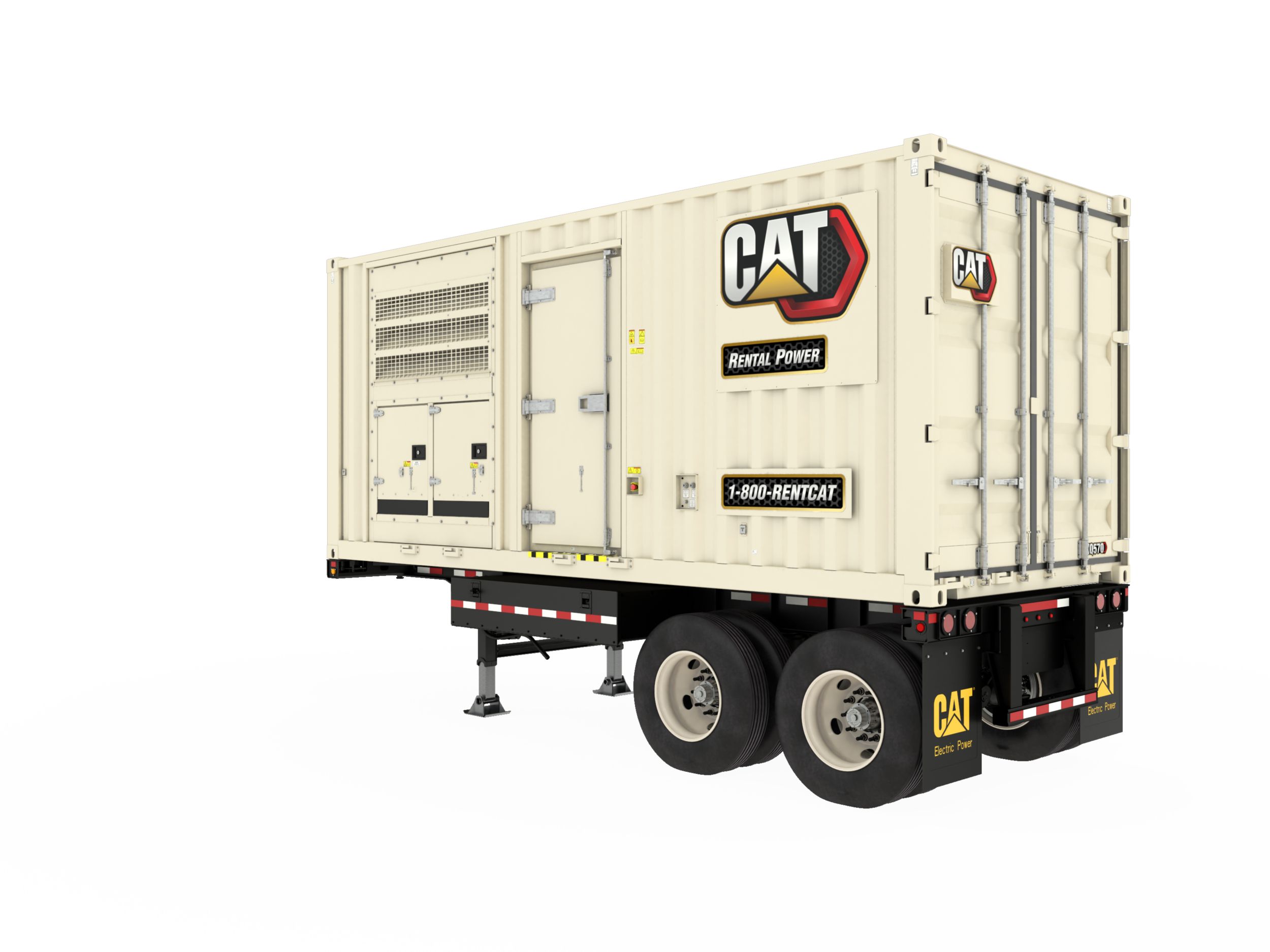

XQ570 Rental Power Genserator Set.

Generator

Rating
455 ekW (568 kVA) Prime

Generator Set

Voltage
120 - 600V
Frequency
60 Hz

Engine

Engine
C18 ACERT

Dimensions

Width
96.00 in
2438.00 mm
Height
102.00 in
2591.00 mm
Length
282.00 in
7182.00 mm

Generator

Rating
455 ekW (568 kVA)

Dimensions

Width
96.00 in
2438.00 mm
Height
102.00 in
2591.00 mm
Length
282.00 in
7182.00 mm

Generator

Rating Standby
500 ekW (625 kVA)

Engine

Fuel
Diesel

Dimensions

Height - Without Trailer
102.00 in
2591.00 mm
Length - Without Trailer
240.00 in
6096.00 mm
Width - Without Trailer
96.00 in
2438.00 mm
Weight
24450.00 lb
11021.00 kg

Fuel Consumption Prime

100% Load 60Hz Prime
33.20 gal/hr
126.00 l/hr
75% Load 60Hz Prime
26.20 gal/hr
99.00 l/hr
50% Load 60Hz Prime
19.00 gal/hr
72.00 l/hr

Fuel Consumption Standby

100% Load 60Hz Standby
35.90 gal/hr
136.00 l/hr
75% Load 60Hz Standby
28.30 gal/hr
107.00 l/hr
50% Load 60Hz Standby
20.50 gal/hr
78.00 l/hr

Generator

IPP Rated 60Hz
74 dB(A)
IPP Rated 60Hz
74 dB(A)

Generator Set

Rating Prime
455 ekW (568 kVA)
Rating Standby
500 ekW (625 kVA)

Fuel Consumption

100% Load 60Hz
33.20 gal/hr
126.00 l/hr
75% Load 60Hz
26.20 gal/hr
99.00 l/hr
50% Load 60Hz
19.00 gal/hr
72.00 l/hr
100% Load 60Hz
35.90 gal/hr
136.00 l/hr
75% Load 60Hz
28.30 gal/hr
107.00 l/hr
50% Load 60Hz
20.50 gal/hr
78.00 l/hr

Noise rating (with enclosure)

Sound Power @ 7 meters (23 feet) @ All Ratings
74 dB(A)

Dimensions

Weight with Lube Oil and Coolant, Without Trailer
24125.00 lb
11396.00 kg
Features

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

Meets U.S. EPA Tier 4 Final emission standards and CARB certified for non-road mobile applications at all 60 Hz ratings

Cat C18 Diesel Engine

Industry proven reliability

CAT EMCP4.4 digital controls

Easy to use digital controls

Cat LC Series Generator

Integrated voltage regular for fast response in demanding applications

Sound Isolated Operator panel

Improved operator comfort

Cat Connect

Remote monitoring for fleet management and asset tracking

Factory designed, built and tested

Single-source Supplier

World Wide Product Support

Supported by an industry leading global dealer network

500 hr oil change intervals

Reducing operating costs and producing less waste

Improved transportability

Lifting frame, 4 point lift and trailers

Power Distribution

Distribution sockets

Additional options

Synchronising controls.
Extended Service interval kits
600V generator

Standard Equipment
  • CAT C18 Diesel Engine
    • Heavy-duty.
      Turbocharged.
      After treatment.
  • Generator
    • LC6134G frame.
  • Control Panel
    • Digital EMCP4.4 set mounted controller.
  • Cat Connect remote monitoring
    • Provides package monitoring and management.
  • Cooling System
    • Package mounted radiator with vertical air discharge.
      Filled from factory.
  • Charging / Starting System
    • 12V heavy duty starting motor and charging alternator c/w battery isolator.
  • Fuel System
    • 24hr dual wall fuel tank with 3 way directional valve for external supply.
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator.
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
  • Structure
    • Heavy Duty steel base frame with integral fuel tank.
      Lifting frame and 4 point lift.
      Base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
  • Exhaust
    • Integrated spark arresting silencer.
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory.
  • General
    • Factory tested and inspected.
Optional Equipment
  • Trailer
    • Full frame support Independent tandem axle trailer frame with tongue Electric actuated hydraulic brakes with rechargeable battery backup breakaway system. Overcenter mechanical parking brake Full length fenders Non-skid surface on steps Heavy duty safety chains and grab hooks Reinforced 4540 kg (10,000 lb) top wind drop jack.
