Overview

From planned events to unplanned power outages, having a temporary power plan in place is crucial to ensuring the power you need is there when you need it. Cat® Rental Power is always standing by to get you set up and running quickly with the largest fleet of generator sets and ancillary equipment. Plus, we have over 1,600 worldwide locations to support you along the way. Whatever your business, whatever your needs, count on Cat Rental Power.

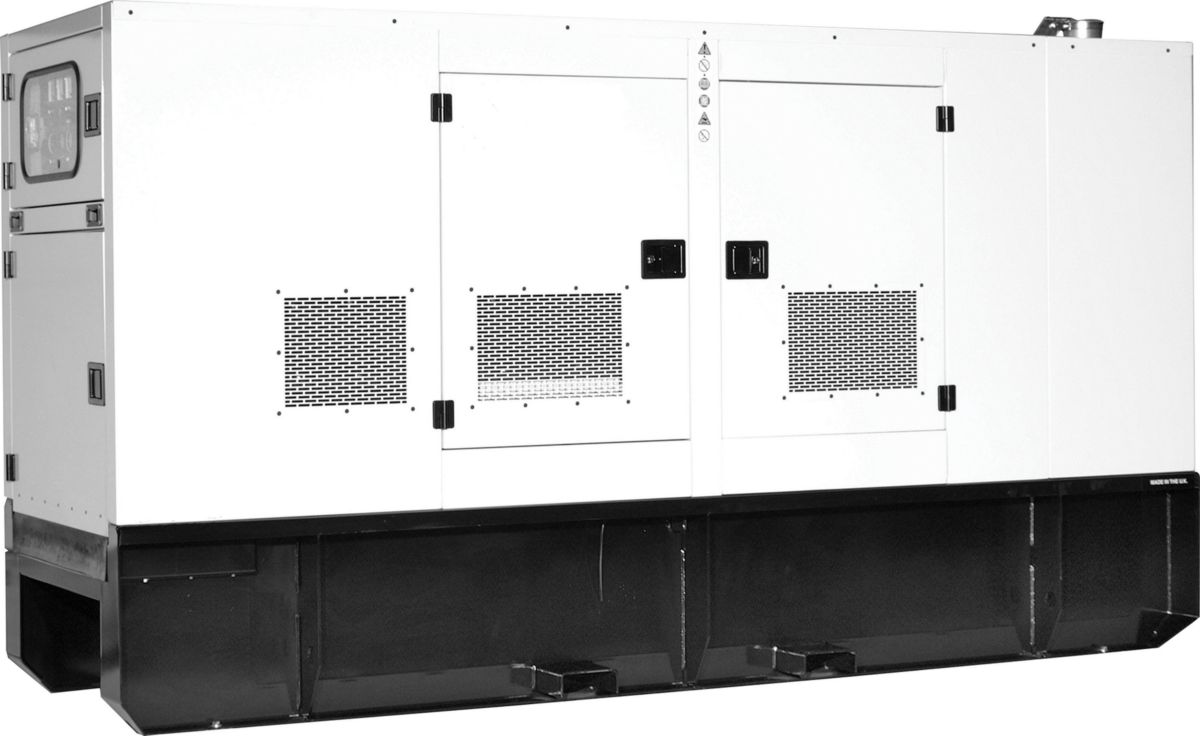

Generator Set

Frequency
50/60 Hz
Standby Run Time (Full Load)
7.3 Hours
Prime Run Time - Full Load
7.3 Hours
Prime Rating
20 kVA (16 kW) Prime

Generator

Standby Rating
20 kVA (16 kW)

Engine

Engine
404D-22G
Fuel
Diesel

Dimensions

Width
33.90 in
860.00 mm
Height
49.30 in
1253.00 mm
Length
66.30 in
1684.00 mm
Weight
1585.00 lb
719.00 kg

Engine

Fuel
Diesel

Generator Set

Voltage
220 - 415V

Engine

Fuel
Diesel
Features

Fuel / Emissions Strategy

GENERATOR SET

ENGINE

GENERATOR

CONTROL SYSTEM

MULTI-VOLTAGE DISTRIBUTION PANEL

CIRCUIT BREAKER

MOUNTING ARRANGEMENT

SOUND ATTENUATED ENCLOSURE

EQUIPMENT FINISH

DOCUMENTATION

Standard Equipment
  • 24 Hour Fuel Tank
    • Low Fuel Level Shutdown
Optional Equipment
  • ENGINE
    • Fuel tank - UL listed double wall tank base with 24 hour minimum supply
    • Battery charger
    • Electronic Governor required for operation at 60 Hz
  • GENERATOR
    • Anti-Condensation Heater
  • COOLING SYSTEM
    • Engine Water heaters
  • MISCELLANEOUS ACCESSORIES
    • Additional operator's manual pack
