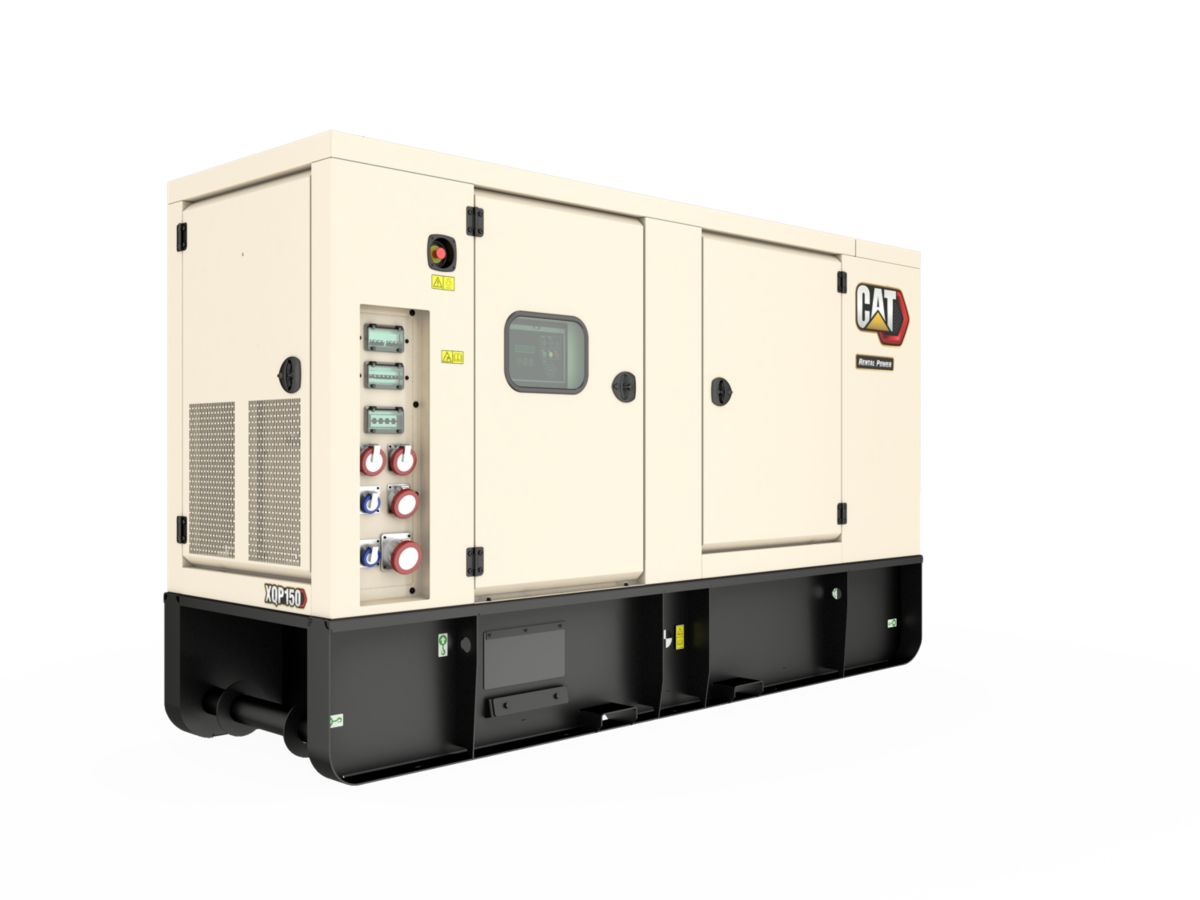

Mobile Generator Sets

XQP150

Request A Quote
US
Metric

Overview

Generator

Rating
150 kVA Prime

Generator Set

Frequency
50/60 Hz
Voltage
127 - 480 V

Engine

Engine
C7.1 Diesel Engine or C7.1 ACERT Diesel Engine
Fuel
Diesel

Dimensions

Width
44.10 in
1120.00 mm
Height
87.60 in
2226.00 mm
Length
138.60 in
3520.00 mm
Weight
5615.00 lb
2547.00 kg

Generator

Prime Power
9.90
37.50

Fuel Consumption EU Stage IIIA

100% Load 60Hz
11.20 gal/hr
42.30 l/hr
75% Load 50Hz
7.80 gal/hr
29.60 l/hr
75% Load 60Hz
9.20 gal/hr
34.70 l/hr
50% Load 50Hz
5.40 gal/hr
20.30 l/hr
50% Load 60Hz
6.30 gal/hr
23.80 l/hr

Fuel consumption Best Fuel Efficiency

100% Load 50Hz
8.80 gal/hr
33.30 l/hr
100% Load 60Hz
10.50 gal/hr
38.20 l/hr
75% Load 50Hz
6.50 gal/hr
24.70 l/hr
75% Load 60Hz
7.70 gal/hr
29.10 l/hr
50% Load 50Hz
4.30 gal/hr
16.40 l/hr
50% Load 60Hz
5.00 gal/hr
19.10 l/hr

Generator

IPP Rated 60Hz
73.1 dB(A)

Noise rating (with enclosure) EU Stage IIIA

Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)
76.4 dB(A)

Noise rating (with enclosure) Best Fuel Efficiency

Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)
74.7 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)
78.3 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)
78.3 dB(A)

Generator Set

Rating Prime
150 kVA

Fuel Consumption EU Stage IIIA

100% Load 50Hz
9.90 gal/hr
37.50 l/hr
100% Load 60Hz
11.20 gal/hr
42.30 l/hr
75% Load 50Hz
7.80 gal/hr
29.60 l/hr
75% Load 60Hz
9.20 gal/hr
34.70 l/hr
50% Load 50Hz
5.40 gal/hr
20.30 l/hr
50% Load 60Hz
6.30 gal/hr
23.80 l/hr

Fuel consumption Best Fuel Efficiency

100% Load 50Hz
8.80 gal/hr
33.30 l/hr
100% Load 60Hz
10.50 gal/hr
38.20 l/hr
75% Load 50Hz
6.50 gal/hr
24.70 l/hr
75% Load 60Hz
7.70 gal/hr
29.10 l/hr
50% Load 50Hz
4.30 gal/hr
16.40 l/hr
50% Load 60Hz
5.00 gal/hr
19.10 l/hr

Noise rating (with enclosure) EU Stage IIIA

Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)
73.1 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)
76.4 dB(A)

Noise rating (with enclosure) Best Fuel Efficiency

Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)
74.7 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)
78.3 dB(A)

Dimensions

Weight - With Lube Oil and Coolant
5615.00 lb
2547.00 kg
Features

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

Emissions Equivalent to R96 EU Stage IIIA or Best Fuel Efficiency.

Cat C7.1 Diesel Engine

Industry proven reliability.

Cat EMCP 4.2B Control Panel

Easy to use digital controls.

Cat LC3114J Generator

Integrated voltage regular for fast response in demanding applications.

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Sound Isolated Operator Panel

Improved operator comfort.

Cat Connect

Remote monitoring for fleet management and asset tracking.

Factory Designed, Built and Tested

Single-source Supplier

World Wide Product Support

Supported by an industry leading global dealer network.

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.

Additional Options Available

Synchronising controls. Distribution sockets. Extended Service interval kits.

Standard Equipment
  • CAT C7.1 Diesel Engine
    • Turbo charged.
  • Generator
    • LC3114J frame.
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator.
  • Cat Connect remote monitoring
    • Provides package monitoring and management.
  • Cooling System
    • Package mounted radiator with vertical air discharge. Filled from factory.
  • Charging / Starting System
    • 12V heavy duty starting motor and charging alternator c/w battery isolator.
  • Fuel System
    • 24hr dual wall fuel tank with 3 way directional valve for external supply.
  • Control Panel
    • Digital EMCP4.2B set mounted controller.
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
  • Structure
    • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. Base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
  • Exhaust
    • Integrated spark arresting silencer.
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory.
  • General
    • Factory tested and inspected.
