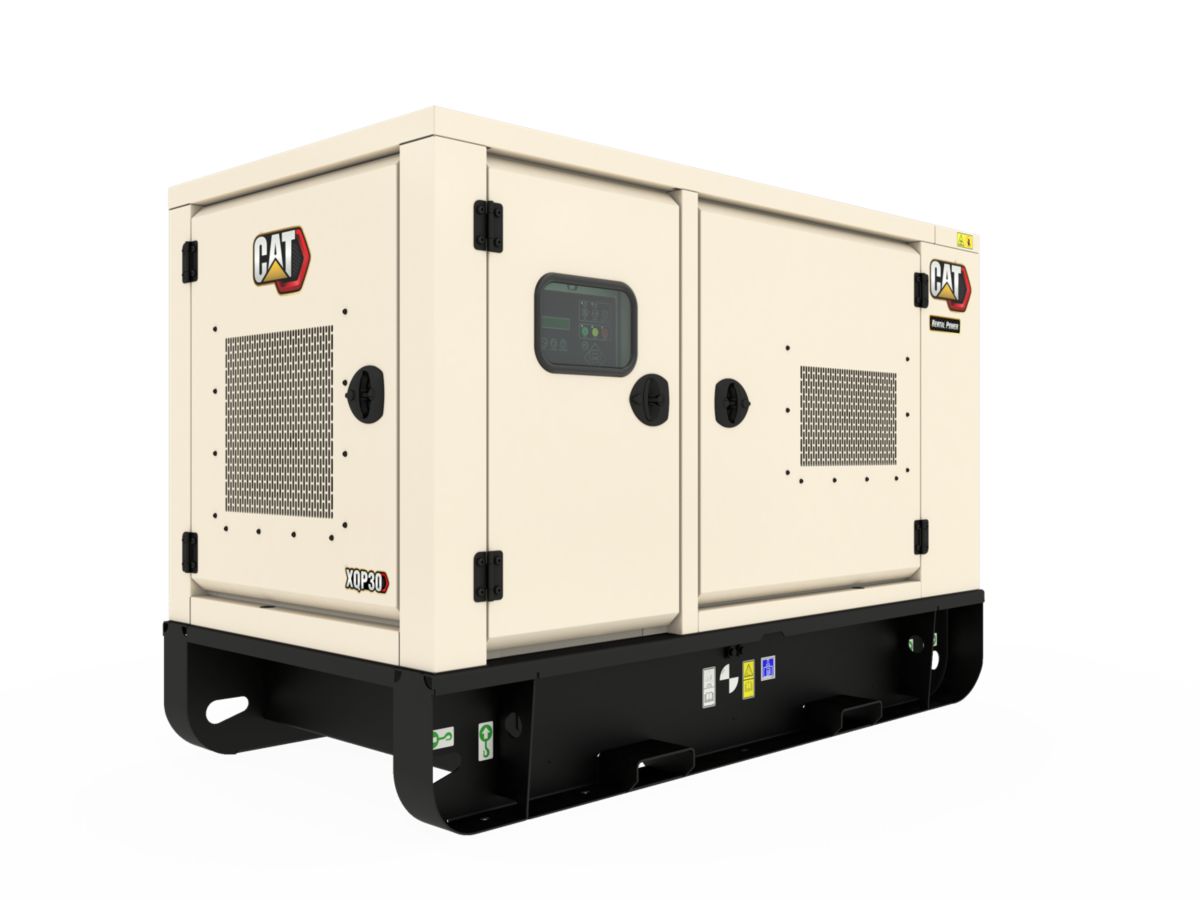

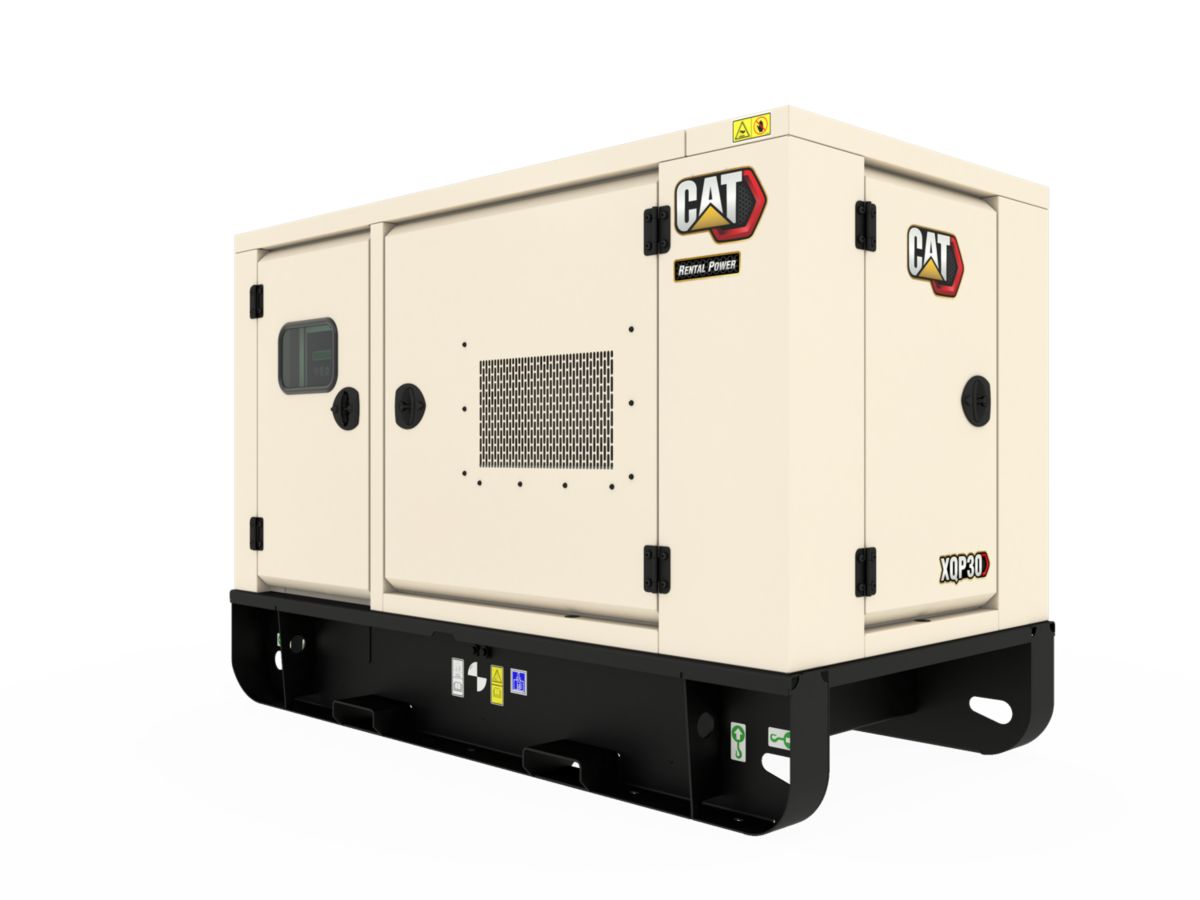

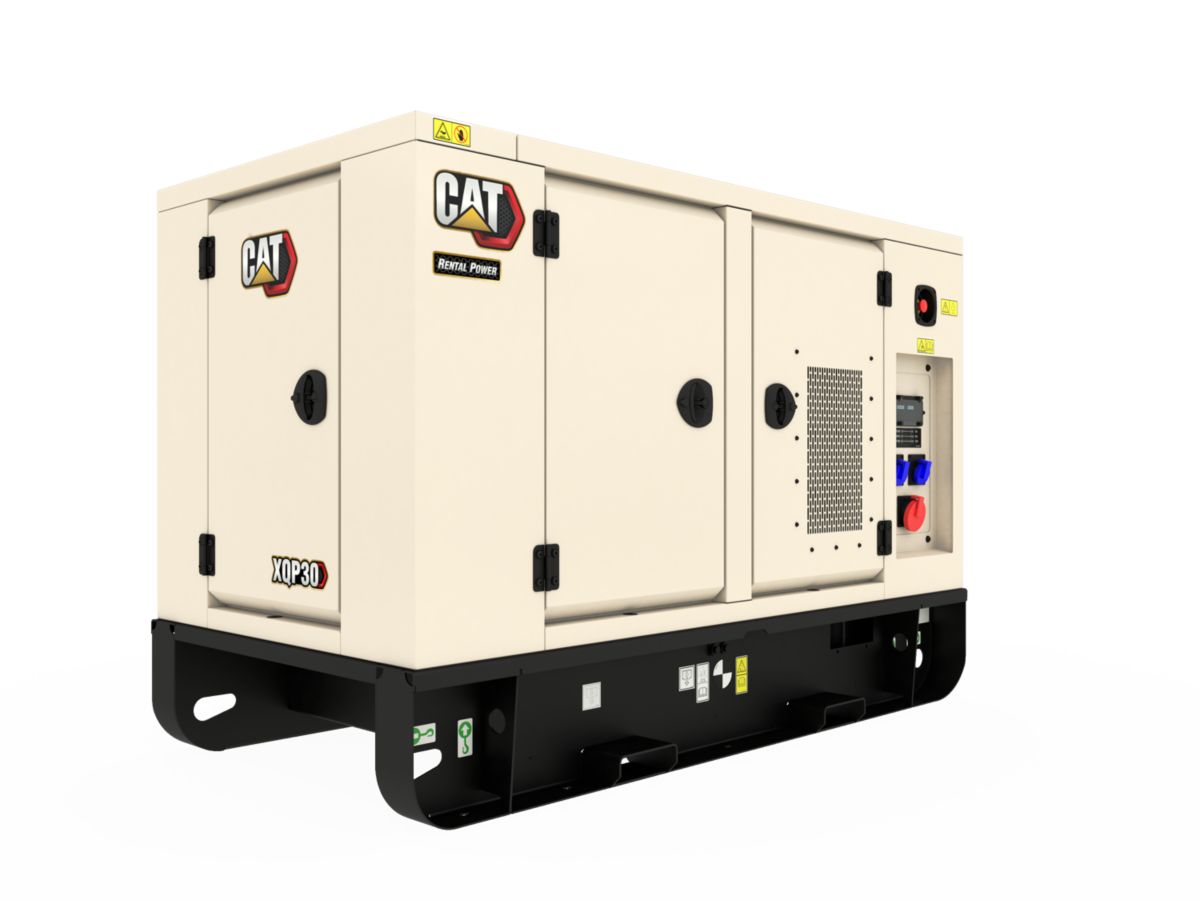

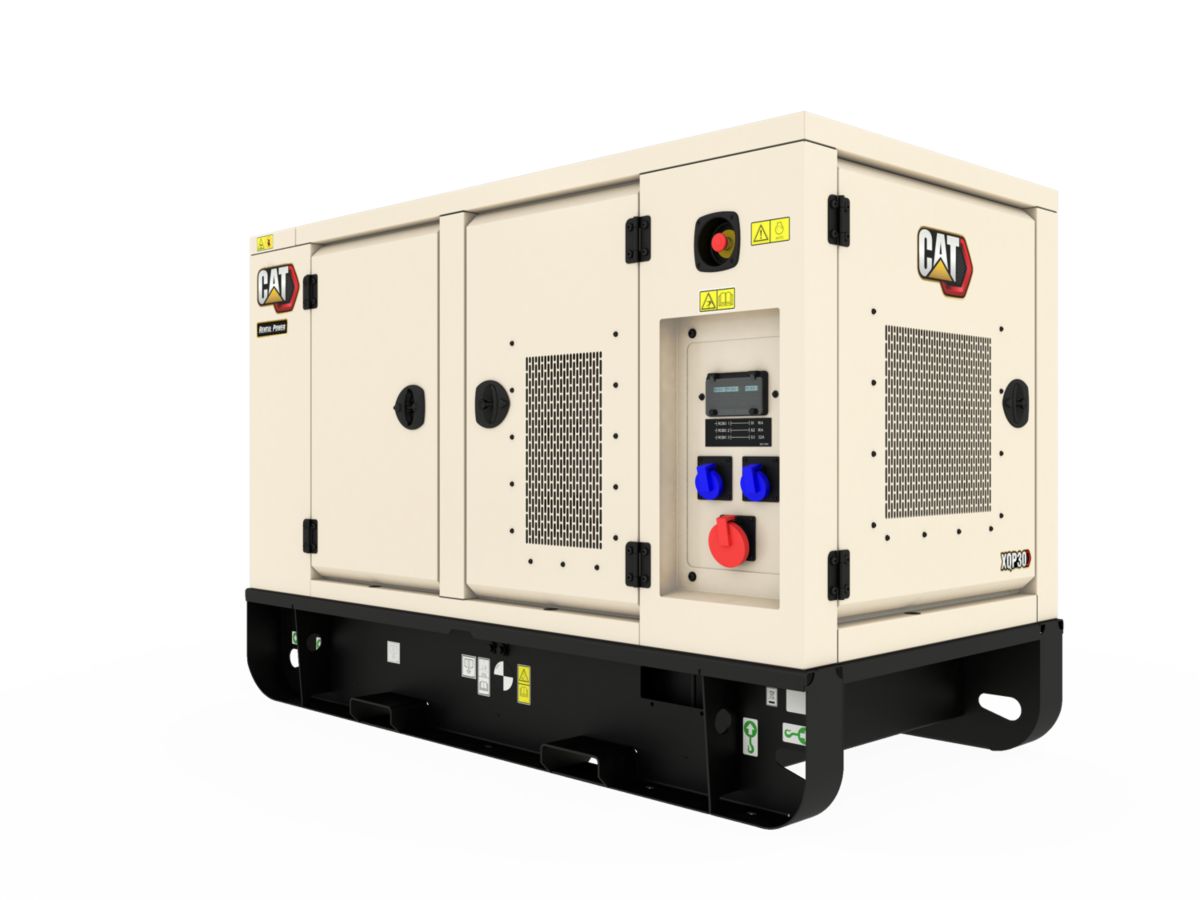

XQP30 - Diesel
Overview
Generator
Generator Set
Engine
Dimensions
Generator
Fuel Consumption EU Stage IIIA
Fuel consumption Best Fuel Efficiency
Generator
Noise rating (with enclosure) EU Stage IIIA
Noise rating (with enclosure) Best Fuel Efficiency
Generator Set
Fuel Consumption EU Stage IIIA
Fuel consumption Best Fuel Efficiency
Noise rating (with enclosure) EU Stage IIIA
Dimensions
Noise rating (with enclosure) Best Fuel Efficiency
Rental ready
Robust, durable product with a range of rental ready features to meet job requirements and applications.
Fuel/Emissions Strategy
Emissions Equivalent to R96 EU Stage IIIA or Best Fuel Efficiency.
Cat C3.3 Diesel Engine
Industry proven reliability.
Cat EMCP 4.2B Control Panel
Easy to use digital controls.
Cat LC1500 Generator
Integrated voltage regular for fast response in demanding applications.
Robust Galvanised Enclosure
Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.
Sound Isolated Operator Panel
Improved operator comfort.
Cat Connect
Remote monitoring for fleet management and asset tracking.
Factory Designed, Built and Tested
Single-source Supplier
World Wide Product Support
Supported by an industry leading global dealer network.
500 hr Oil Change Intervals
Reducing operating costs and producing less waste.
Improved Transportability
Drag bars, Lifting frame, Fork lift pockets and 4 point lift.
Additional Options Available
Synchronising controls. Distribution sockets. Extended Service interval kits. Deepsea DSE7320 MkII control panel
- CAT C3.3 Diesel Engine
- Naturally aspirated
- Generator
- LC1514F frame.
- Air Filter
- Cyclonic/paper with dust cup and service indicator.
- Cat Connect remote monitoring
- Provides package monitoring and management.
- Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory.
- Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator.
- Fuel System
- 24hr dual wall fuel tank with 3 way directional valve for external supply.
- Control Panel
- Digital EMCP4.2B set mounted controller.
- Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
- Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. Base frame is wider than enclosure to protect generator set during transportation.
- Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
- Exhaust
- Integrated spark arresting silencer.
- Lube Oil
- On engine primary and secondary oil filters. Filled from factory.
- General
- Factory tested and inspected.
