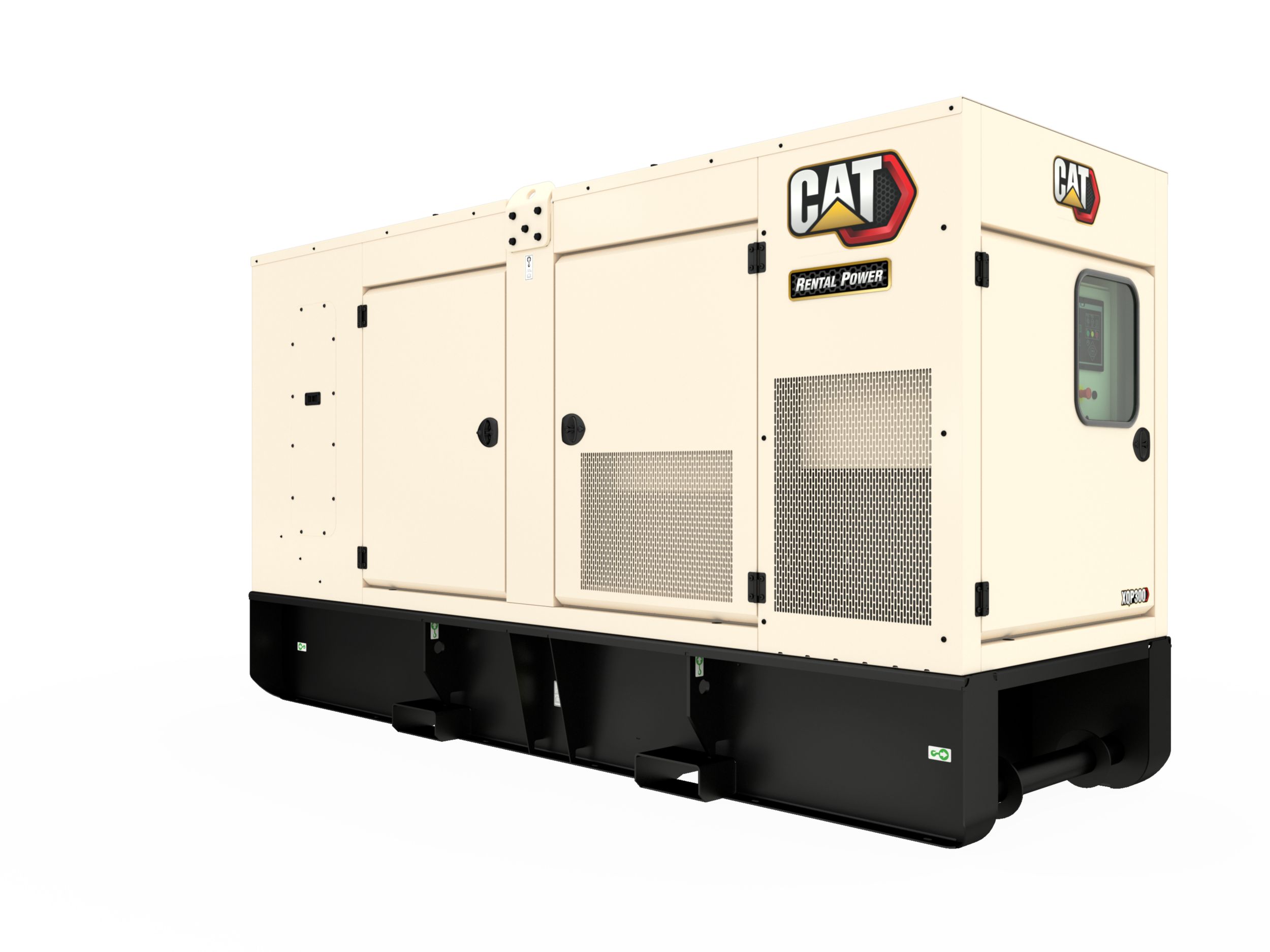

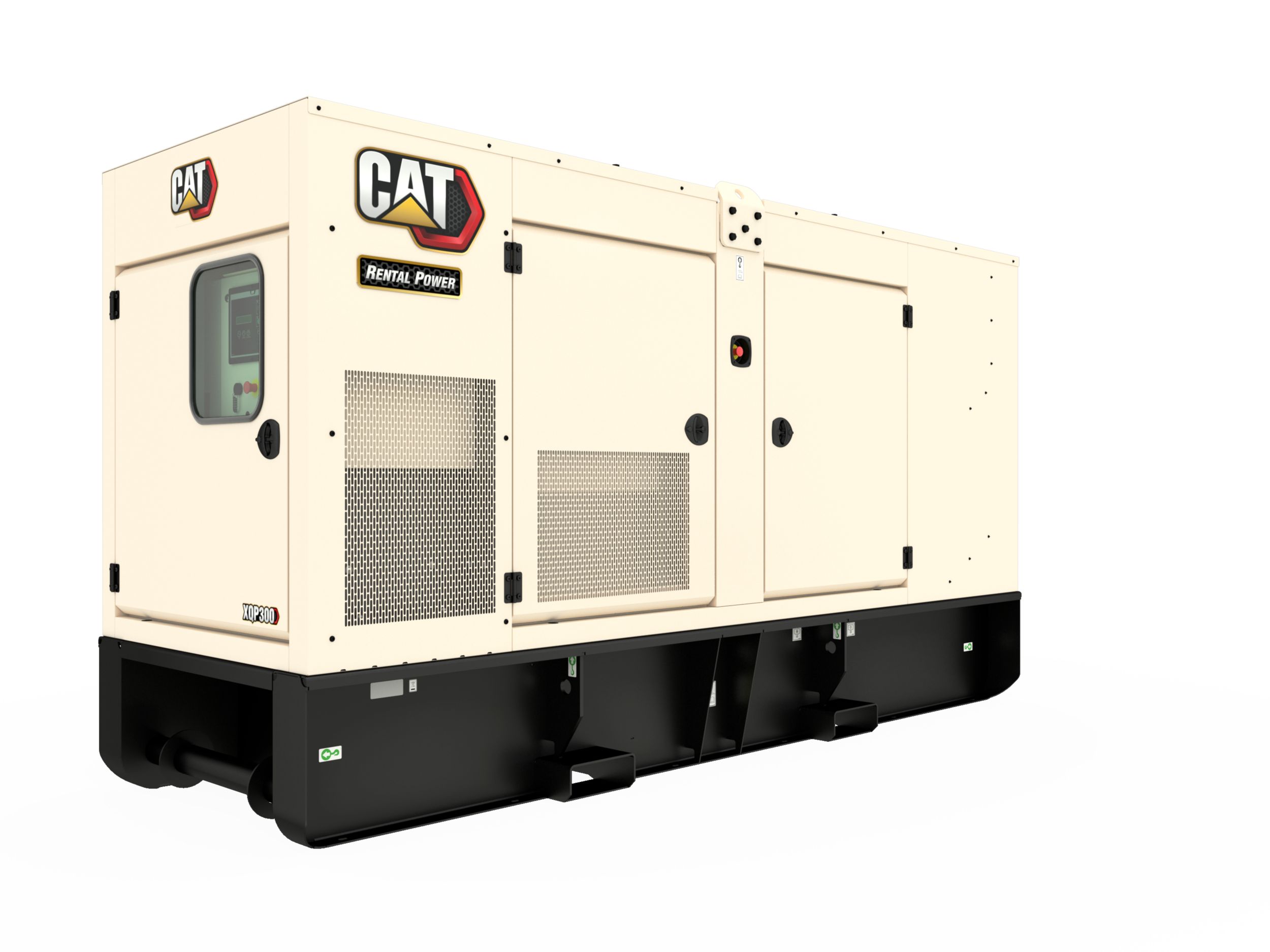

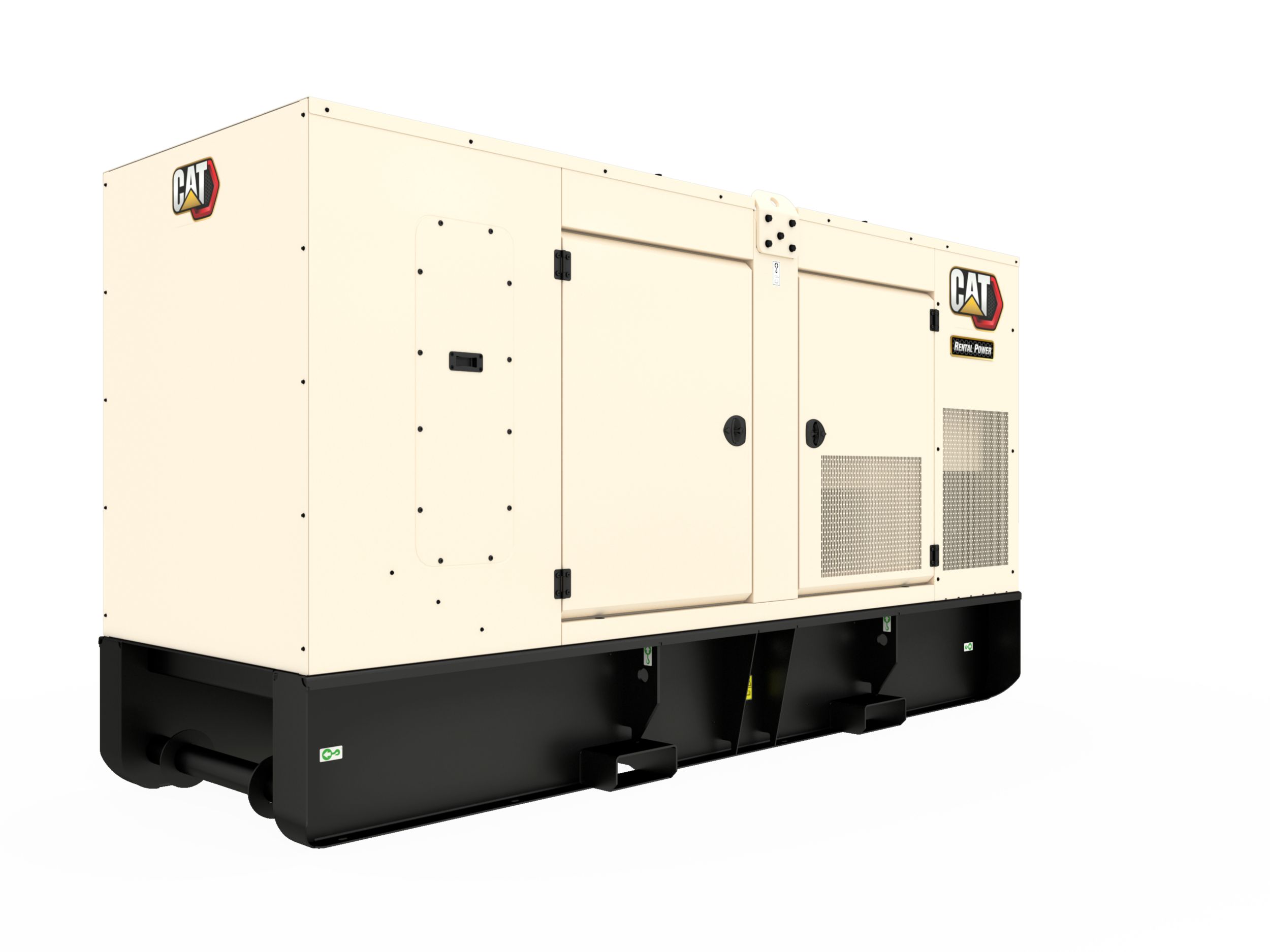

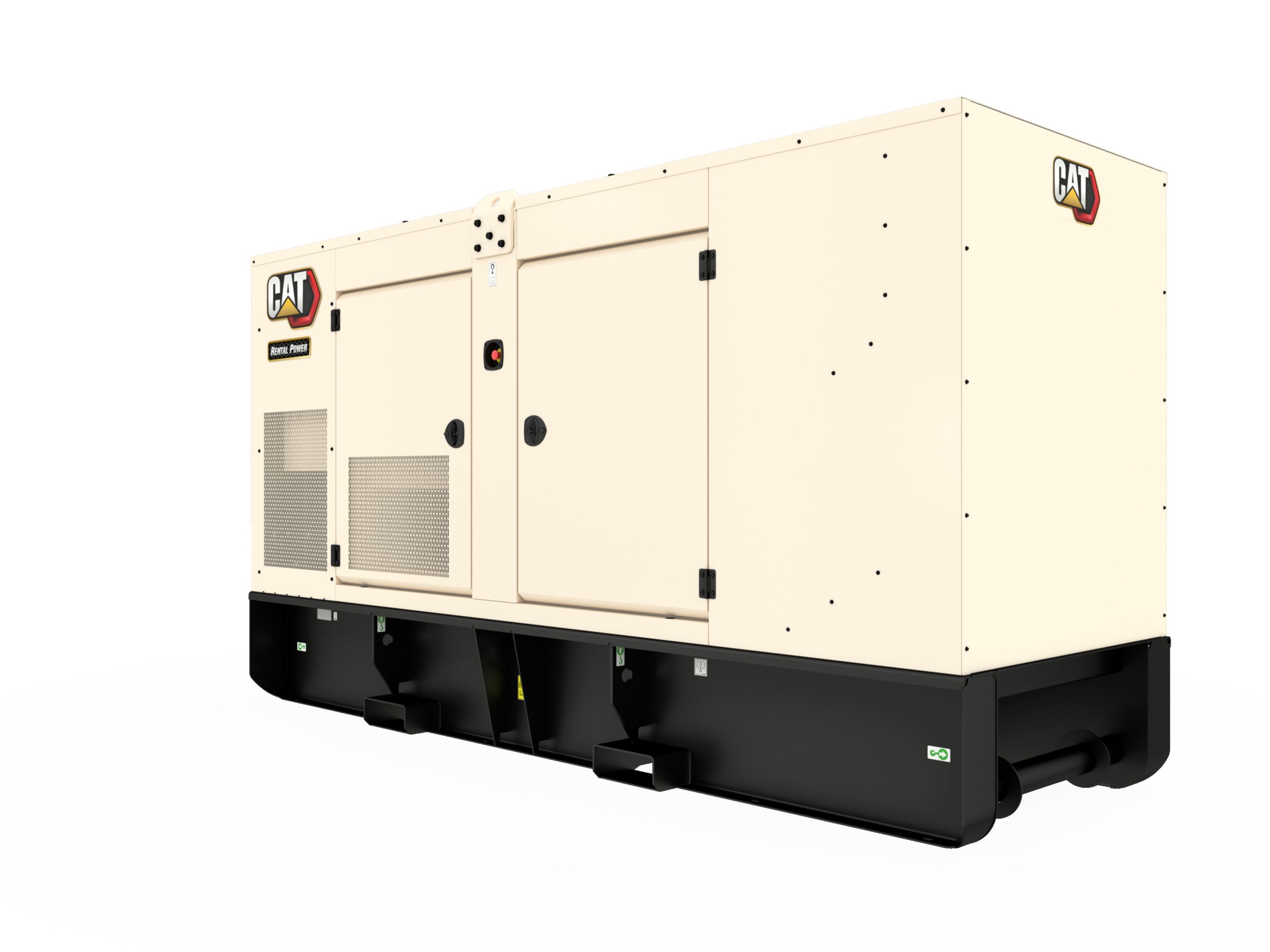

Mobile Generator Sets

XQP300

Request A Quote
US
Metric

Overview

Generator

Rating
300 kVA Prime

Generator Set

Frequency
50/60 Hz
Voltage
127 - 480 V

Engine

Engine
Cat C9 ACERT Diesel Engine
Fuel
Diesel

Dimensions

Width
55.00 in
1400.00 mm
Height
84.00 in
2124.00 mm
Length
160.00 in
4065.00 mm
Weight
8553.00 lb
3880.00 kg

Fuel consumption Best Fuel Efficiency

100% Load 50Hz
16.50 gal/hr
62.50 l/hr
100% Load 60Hz
19.40 gal/hr
73.50 l/hr
75% Load 50Hz
12.50 gal/hr
47.30 l/hr
75% Load 60Hz
14.70 gal/hr
55.80 l/hr
50% Load 50Hz
8.90 gal/hr
33.80 l/hr
50% Load 60Hz
10.60 gal/hr
40.10 l/hr

Engine

Fuel
Diesel

Fuel consumption Best Fuel Efficiency

100% Load 50Hz
16.50 gal/hr
62.50 l/hr
100% Load 60Hz
19.40 gal/hr
73.50 l/hr
75% Load 50Hz
12.50 gal/hr
47.30 l/hr
75% Load 60Hz
14.70 gal/hr
55.80 l/hr
50% Load 50Hz
8.90 gal/hr
33.80 l/hr
50% Load 60Hz
10.60 gal/hr
40.10 l/hr

Generator Set

Rating Prime
300 kVA

Dimensions

Weight - With Lube Oil and Coolant
8553.00 lb
3880.00 kg
Features

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

Best Fuel Efficiency.

Cat C9 Diesel Engine

Industry proven reliability.

Cat EMCP 4.2B Control Panel

Easy to use digital controls.

Cat LC5100 Generator

Integrated voltage regular for fast response in demanding applications.

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Sound Isolated Operator Panel

Improved operator comfort.

Cat Connect

Remote monitoring for fleet management and asset tracking.

Factory Designed, Built and Tested

Single-source Supplier

World Wide Product Support

Supported by an industry leading global dealer network.

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.

Additional Options Available

Synchronising controls. Extended Service interval kits.

Standard Equipment
  • CAT C9 Diesel Engine
    • Turbo charged.
  • Generator
    • LC5114N frame.
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator.
  • Cat Connect remote monitoring
    • Provides package monitoring and management.
  • Cooling System
    • Package mounted radiator with vertical air discharge. Filled from factory.
  • Charging / Starting System
    • 24V heavy duty starting motor and charging alternator c/w battery isolator.
  • Fuel System
    • Dual wall fuel tank with 3 way directional valve for external supply.
  • Control Panel
    • Digital EMCP4.2B set mounted controller.
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
  • Structure
    • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. Base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
  • Exhaust
    • Integrated spark arresting silencer.
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory.
  • General
    • Factory tested and inspected.
