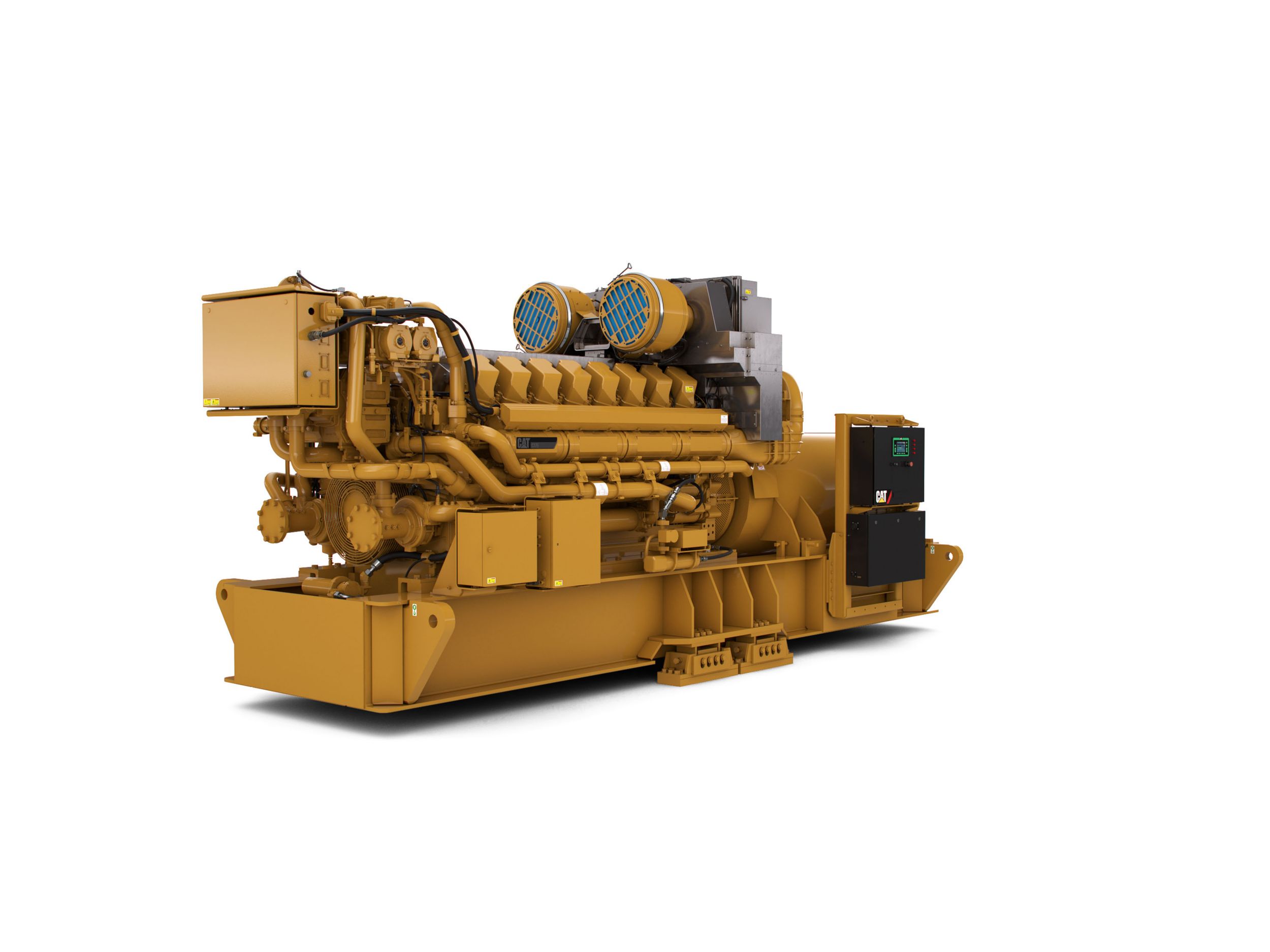

C175-16 Offshore Generator Set
Overview
Engine Specifications
Dimensions
Capacity for Liquids
Engine Specifications
Dimensions
Capacity for Liquids
Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.
Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.
Full Range of Attachments
Large variety of factory-installed attachments increases application flexibility and reduces installation time.
Testing
- Every unit is full-load tested to ensure proper package performance - Full range of factory tests and reports are available including performance, torsional-vibration analysis, fuel consumption, engine, and generator special tests
Unmatched Product Support Offered Through the Worldwide Cat Dealer Network
- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your Cat product - Caterpillar parts and labor warranty - Preventive maintenance agreements available for repair before failure. - S•O•SSM program matches your oil sample to Caterpillar set standards to determine: • Internal engine component condition • Presence of unwanted fluids and combustion by-products • Site-specific oil change interval
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Web Site
For all your petroleum power requirements, visit www.catoilandgas.cat.com.
- Air Inlet System
- Dual turbochargers
- Corrosion-resistant aftercooler core
- Air cleaners — single or dual element
- Exhaust System
- Dry exhaust manifolds with thermo-laminated heat shields
- Dual turbochargers with water-cooled bearings and thermo-laminated heat shields
- Vertical exhaust outlet
- Flange and exhaust expanders
- Cooling System
- Separate-circuit-aftercooler (SCAC) and jacket water (JW) circuit cooling system
- Gear-driven centrifugal pumps, one for each circuit
- SCAC electronic thermostat, outlet-controlled with aftercooler inlet temperature sensing
- JW electronic thermostat, outlet-controlled with outlet temperature sensing
- Engine oil cooler in JW circuit
- Fuel System
- Cat common rail high-pressure fuel system with electronically controlled unit injectors
- Duplex primary fuel filter with water separator
- Duplex secondary/tertiary fuel filters
- Electric fuel priming pump
- Gear-driven low pressure transfer pump
- Gear-driven high pressure transfer pump
- Double-walled high pressure fuel lines
- Fuel pressure, temperature, and leak detection sensors
- Lubrication System
- Engine-driven, gear-type oil pump
- Integral lube oil cooler
- Front-mounted oil drain lines and valve
- Oil sampling valve
- Filler and dipstick
- Four-canister simplex oil filter
- Prelube pump — electric, air, or custom
- Fumes disposal with crankcase breathers
- Crankcase explosion relief valves
- Engine Control and Protection
- Dual ADEM A4 engine control unit (ECU) for redundancy
- Software monitors engine parameters and performs alarm, derate, and shutdown functions
- Rigid wiring harness
- Marine Power Display 3.0 (MPD 3.0)
- Mounting
- Inner-outer base with vibration isolators
- Generator
- Kato brushless permanent magnet 6P6.6-3200 HR
- 2-bearing, close-coupled arrangement
- 60 Hz, 600V, 0.7 PF
- UL/CSA listed, IP23
- Flywheel and Coupling
- Flywheel housing, SAE No. 00
- Flywheel, SAE No. 00
- ABS certified, non-certified, or custom-coupling and coupling mounting
- Free-standing or close-coupled generator set arrangements
- Starting System
- Turbine air starter or
- Dual electric starting motors or
- Air and electric starting motors (redundant)
- General
- Power distribution box — 24V or custom
- 20A battery charger
- Cat yellow paint
- Offshore oil field sub-base
- Integral spring isolators with limit stop
- Lift provisions on base
- Oil drain extension
- Engine length drip pan with drain
- Torsional dampened driveline couplings
- Air Inlet System
- Air cleaner service indicator
- Cooling System
- 9 kW, 240V, 60 hz jacket water heater
- Custom jacket water heater
- Fuel System
- Four canister duplex oil filter
- Engine Control and Protection
- Cat Alarm and Protection System
- Communication module PL1000T/E
- Direct-rack control
- Thermocouples
- Metal particle detector
- SOLAS spray shielding
- Mounting
- Custom I-beam base with vibration isolators
- Generator
- Custom generator
- General
- TVA report
- Special tests
- Project-specific installation drawings
- P&ID-electrical drawings
- Spare parts kit
- Barring group
- Engine lifting group
- Custom generators and radiators
