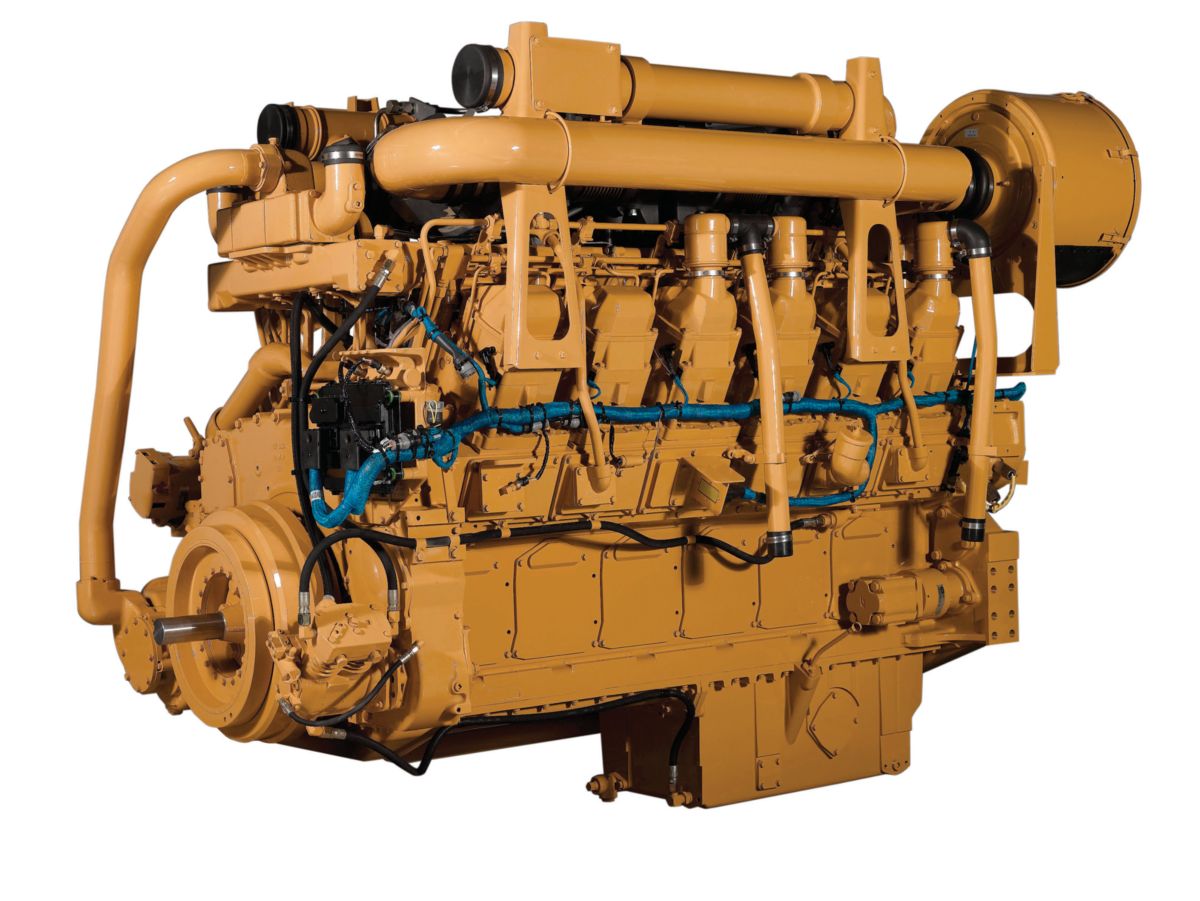

3512C (HD) Well Stimulation Engine with Dynamic Gas Blending Kit
Overview
General Specifications
Emissions
Dimensions
Engine Mounted Transmission Oil Cooler —
Integration with engine cooling system allows ease of installation and a tighter overall engine package
Advanced Digital Engine Management
ADEM A3 engine management system integrates speed control, air/fuel ratio control and ignition/detonation controls into a complete engine management system with integrated digital ignition, engine protection and monitoring
Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.
Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.
Full Range of Attachments
Large variety of factory-installed engine attachments reduces packaging time
Testing
Every engine is full-load tested to ensure proper engine performance
Product Support
- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your petroleum engine - Cat parts and labor warranty - Preventive maintenance agreements available for repair-before-failure options - S•O•SSM program matches your oil and coolant samples against Caterpillar set standards to determine: • Internal engine component condition • Presence of unwanted fluids • Presence of combustion by-products • Site-specific oil change interval
Over 80 Years of Engine Manufacturing Experience
- Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products. • Cast engine blocks, heads, cylinder liners, front and flywheel housings • Machine critical components • Assemble complete engine
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
- Air Inlet System
- Air-to-air aftercooled (ATAAC) (512DW04, 512DW05, 512DW06, 512DW07)
- Air cleaners (single element w/service indicator)
- Control System
- ADEM A3 ECU, LH
- With electronic fuel injector fuel system (10 amp DC power required to drive electronic engine control module)
- Cooling System
- ATAAC (512DW04, 512DW05, 512DW06, 512DW07)
- Torque converter connections
- Thermostats and housing, jacket water pump, gear-driven centrifugal (gear-driven centrifugal pumps)
- Connections for radiator cooling
- Dual outlets: 88.9 mm O.D. (3.5 in) elbow hose connections
- Exhaust System
- Land Well Service Engine:
- Offshore Well Service Engine:
- Flywheels & Flywheel Housing
- Flywheel, SAE No. 0, 151 teeth
- Flywheel housing, SAE No. 0
- Fuel System
- Primary fuel filter
- Fuel priming pump
- Fuel filter, RH spin-on type
- Fuel transfer pump
- Electronically controlled unit injectors
- Instrumentation
- No standard instrumentation
- Optional — remote instrumentation available Service meter
- Lube System
- Crankcase breather — top-mounted
- Oil cooler
- Oil filler and dipstick — RH
- Oil pump
- Oil filter — RH spin-on type
- Rear sump oil pan, 250-hour change interval
- Oil pan drain valve, 3/4" NPT female connection
- Fumes disposal
- Scavenger pump
- Mounting System
- Trunion front support
- Power Take-Offs
- ATAAC (512DW04, 512DW05, 512DW06, 512DW07)
- Front housing, two-sided
- Protection System
- ADEM A3 ECU system to provide customer programmable engine deration strategies to protect against adverse operating conditions
- Emergency stop logic inputs provided at 40-pin customer interface connection
- ATAAC (512DW04, 512DW05, 512DW06, 512DW07)
- Single Air inlet shutoff
- General
- Paint, Cat yellow
- Vibration damper and guard
- Lifting eyes
- Air Inlet System
- Air cleaner
- Remote air inlet adapters
- Air inlet heater
- Charging System
- Battery chargers
- Charging alternators
- Control System
- Throttle position sensors
- Cooling System
- Coolant level sensor
- Coolant conditioner
- Connections
- Emissions Certifications
- IMO Certification and European Union Certification
- Exhaust System
- Flexible exhaust fitting
- Elbows
- Flange
- Flange and exhaust adapters
- Manifold
- Mufflers
- Fuel Systems
- Flexible fuel lines
- Fuel cooler
- Fuel priming pumps
- Water/fuel separator
- Fuel level switch
- Gauges and Instrument Panels
- Engine mount premium panel
- Remote instrumentation
- Lube System
- RH oil filters
- Oil pan accessories
- Oil pan front sump — 250 hrs
- High capacity oil pan — 500 hrs
- Power Take-Offs
- Front Accessory Drives
- Auxiliary Drive Shaft
- Auxiliary Drive Pulleys
- Front Stub Shaft
- Front Crankshaft Adapter
- Pulleys
- Protection System
- Corrosion Protection
- Starting System
- Air starting motors
- Air pressure regulator
- Air silencer
- Hydraulic starter
- Battery sets— 24V
- Battery cable
