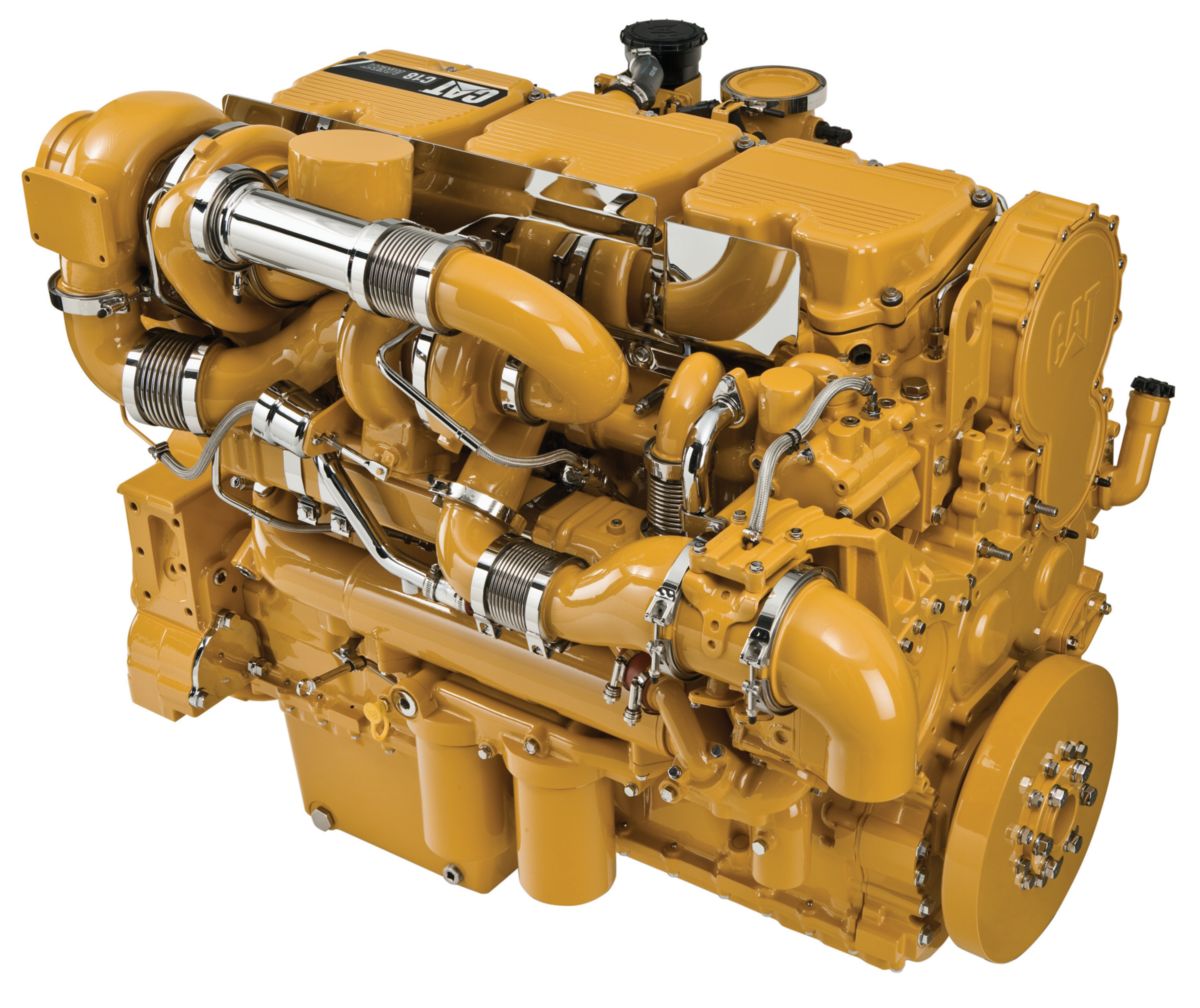

C18 ACERT™ Tier 4 Interim Engine

US
Metric

Overview

Cat C18 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C15 ACERT engines to deliver excellent performance with low operating costs while meeting tight environmental requirements. This is an ideal engine for applications that require Tier 4 Interim or EU Stage IIIB emissions certifications in well service applications such as pump skids, nitrogen units, acidizing units, cementing units, blenders, and hydraulic power units. Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C18 ACERT engines with ratings: 447-522 bkW (600-700 bhp)@ 1800-1900 rpm meet U.S. EPA Tier 4 Interim, EU Stage IIIB emission standards. Rating 563 bkW (755 bhp) @ 1800-1900 rpm meets U.S. EPA Tier 4 Interim emission standards. This information about Emissions describes the particular rating's emissions technology. For more information about emissions certification, please contact your local Cat dealer.

General Specifications

Minimum Rating
600.00 BHP
447.00 bkW
Maximum Rating
755.00 BHP
563.00 bkW
Governor and Protection
Electronic ADEM™ A4
RPM
1900.00 r/min
1800.00 r/min
Aspiration
Turbocharged-Aftercooled
Displacement
1104.50 in³
18.10 l
Flywheel and Flywheel Housing
SAE No. 0 or SAE No. 1
Flywheel Teeth
136 (SAE 0), 113 (SAE 1)
Rotation from Flywheel End
Counterclockwise
Stroke
7.20 in
183.00 mm
Bore
5.70 in
145.00 mm

Emissions

Emissions
U.S. EPA Tier 4 Interim, EU Stage IIIB

Dimensions

Length
60.20 in.
1530.00 mm
Width
37.80 in.
961.00 mm
Height
51.00 in.
1282.00 mm
Weight
3482.00 lb
1580.00 kg

Capacity for Liquids

Cooling System
7.10 gal (US)
26.90 l

Dimensions

Length
60.20 in
1530.00 mm
Width
37.80 in
961.00 mm
Height
51.00 in
1282.00 mm
Weight
3482.00 lb
1580.00 kg
Features

Features

Standard Equipment
  • Air Inlet System
    • Turbocharged Aftercooled
  • Control System
    • Electronic control system, over-foam wiring harness, automatic altitude compensation, power compensated for fuel temperature, configurable software features, engine monitoring system SAE J1939 broadcast and control, integrated Electronic Control Unit (ECU) remote fan control
  • Cooling System
    • Vertical outlet thermostat housing, centrifugal water pump, guidance on cooling system design available to ensure machine reliability
  • Exhaust System
    • Clean Emissions Module (CEM) that includes Diesel Particulate Filter (DPF), Diesel Oxidation Catalyst (DOC), and Cat Regeneration System, optional exhaust outlet
  • Flywheels and Flywheel Housing
    • SAE 0 and SAE 1 flywheel housing
  • Fuel System
    • MEUI injection; primary fuel filter, secondary fuel filters, fuel transfer pump, electronic fuel priming
  • Lube System
    • Open crankcase ventilation system, oil cooler, oil filler, oil filter, oil dipstick, oil pump (gear driven), choice of sumps (front, rear, and center)
  • Power Take Off
    • SAE B and SAE C drives available, engine power can also be taken from the front of the engine on some applications
  • General
    • Paint: Cat yellow; vibration damper; lifting eyes
