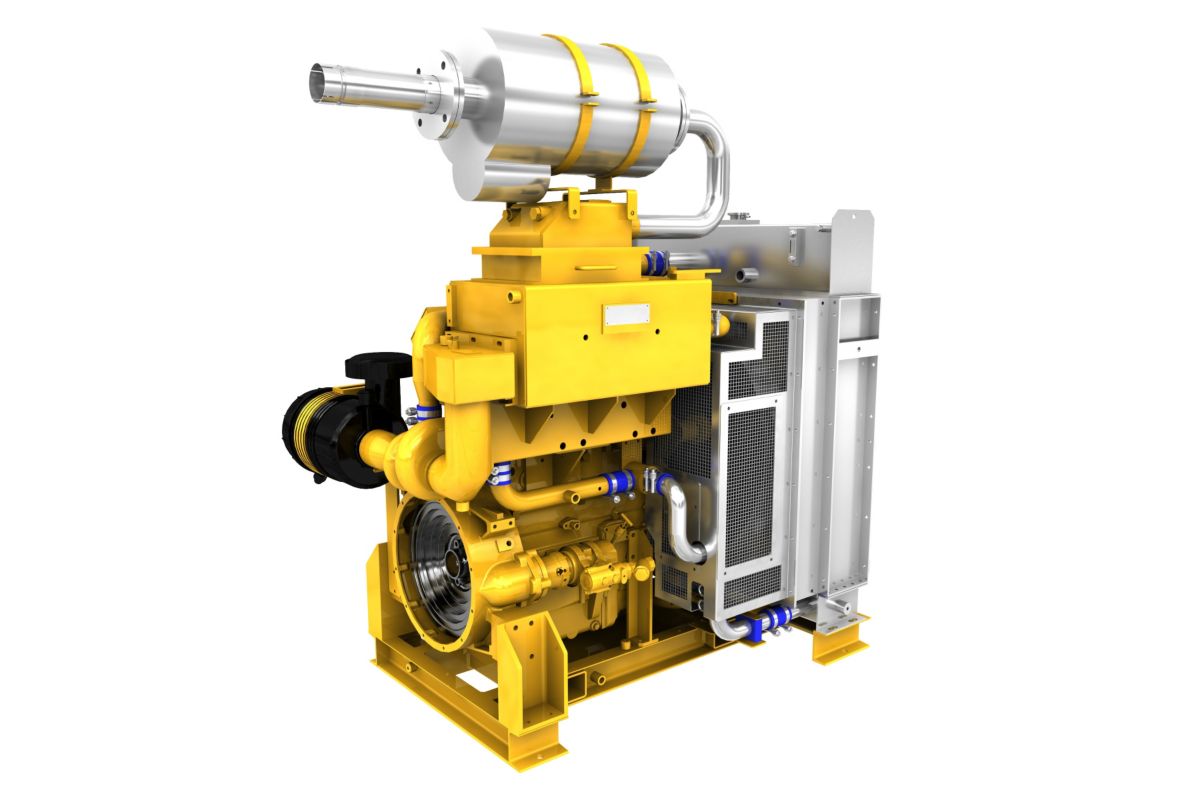

C4.4 Well Servicing HazPak
Overview
Package Specifications
Capacity for Liquids
Making Your Investment Work Harder
• Factory-certified package for hazardous location applications allow simplified rig certification for OEM • Maintains high power over broad range of operating speeds, improving performance • Steady torque rise provides superior load acceptance • Optimized ambient and altitude capabilities for operating flexibility
Committed to Sustainable Development
• Meets today's emission standards for well service applications - CCNR Stage 2/U.S.A. 40 CFR Part 94 Marine Tier 2
Driving Down Total Cost of Ownership
• Improved serviceability versus the competition • Industry-leading component overhaul life • Rugged Caterpillar testing on all components improves uptime
Product Support Offered Through Global Cat Dealer
• More than 2,200 dealer outlets • Caterpillar factory-trained dealer technicians service every aspect of your petroleum package • Caterpillar parts and labor warranty
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
- Air Inlet System
- ATEX designed and tested inlet system, compliant to EN 1834-1; stainless steel flame arrestor; integrated air shutdown valve, activates on overspeed and emergency stop; available in hydraulic, pneumatic, electric configurations; air cleaner, single element canister type with service indicator and rain cap; dry aluminum compressor housing
- Cooling System
- Closed cooling system with air blast radiator and charge air cooling, marine radiator with full solderdipped core, radiator cooled packages sized for 45°C ambient air temp, gear-driven centrifugal jacket water pump, de-aeration expansion tank, exhaust gas heat exchanger (cooler), additional heat load from exhaust heat exchanger included in cooling circuit
- Exhaust System
- ATEX designed and tested exhaust system, compliant to EN 1834-1; comprised of exhaust gas heat exchanger (cooler); stainless steel flame arrestor; stainless steel spark arrestor; water-cooled exhaust manifold, watercooled turbocharger
- Fuel System
- Mechanical fuel injection, primary fuel filter/water separator with 1/4” BSPP connectors (LH), secondary fuel filter (LH), fuel priming pump manual, fuel shutoff valve
- General
- Package ambient capability is -20°C to 45°C; mechanical systems are designed for Gas Group IIA; electrical systems are designed for Gas Group IIC; all systems meet temperature class T3 (200°C limit); includes a declaration of conformity for the entire package scope; radiator package, engine, and exhaust system fitted to sub-frame; air filter, fuel/water separator, remote oil filter installed and mounted; earth bonding per standard EN 60079-14
- Lube System
- Oil filter (LH), dipstick (LH), fs disposal (closed system)
- Air Compressor
- Single cylinder, 225 CC with head unloader
- Charging System
- 12V, 45A alternator with 75AH battery pack
- 24V 16A alternator with 75AH battery pack
- 24V 25A alternator with 75AH battery pack
- Control System
- Local panel at side of engine, includes: coolant temperature gauge, lube oil pressure gauge, exhaust gas temperature gauge, exhaust gas backpressure gauge, engine speed gauge, stop switch
- Exhaust System
- 18 dBA spark arrestor/muffler, ATEX approved
- Fuel System
- Fuel cooler, installed, maintains acceptable fuel temperature when running from day tank
- Starting System
- Air, electric, and hydraulic starters available
