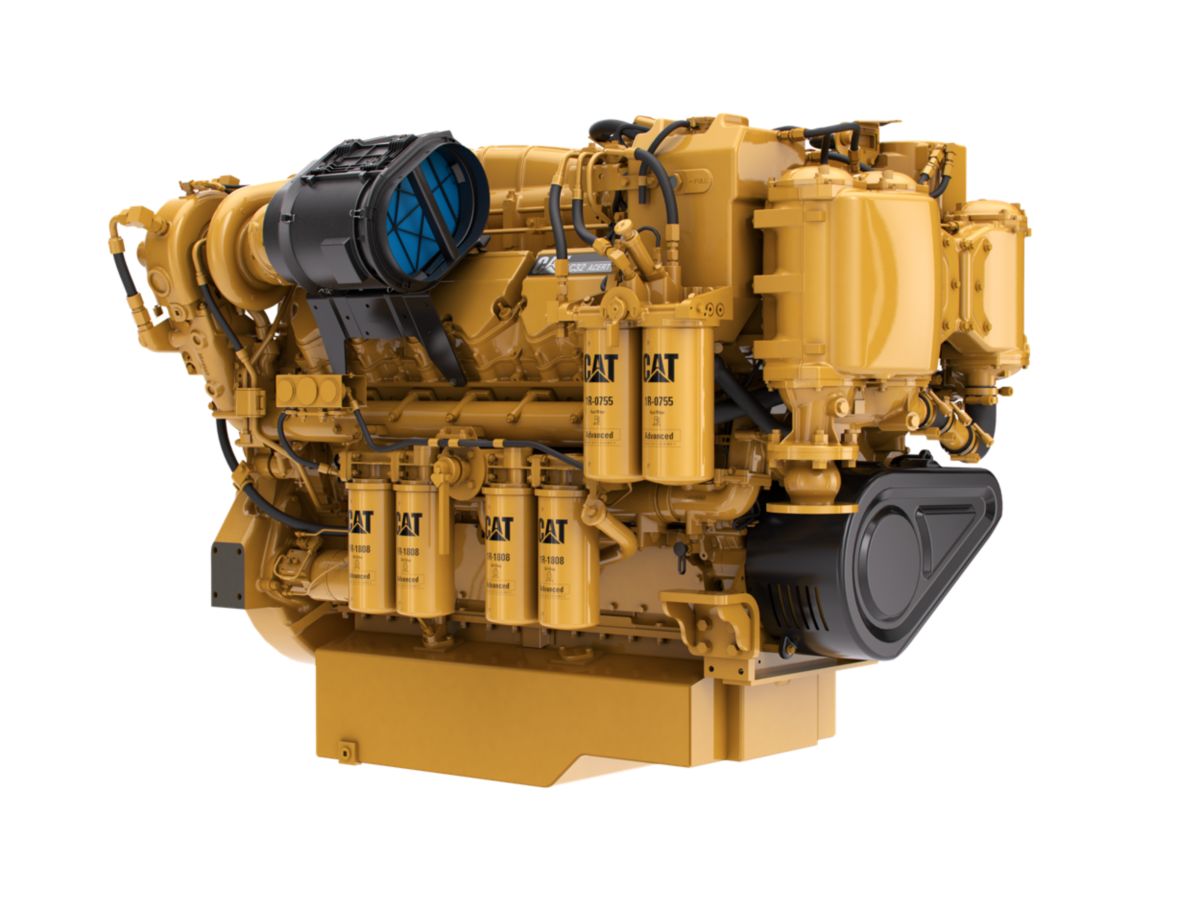

Cat C32 ACERT Marine Propulsion Engine (EPA Tier 3)
Overview
Power Rating
Engine Specifications
Dimensions & Weights
Emissions
IMO II/EPA Tier 3 Compliant Ratings
Separate Circuit Aftercooling System (SCAC) for A-C ratings
No seawater circulating through the aftercooling system to prevent corrosion.
Seven Ratings with Wide Operating Speed Range (WOSR)
Full power & torque are available for a broader operating speed range. For example: With an A rating at 1800 rpm - you have full power from 1500 to 1800 rpm.
Extended Oil Change Intervals
A Ratings: 1000 hours, B Ratings: 750 hours, C Ratings: 500 hours
The Cat Global Dealer Network
Extensive service network of CAT dealers as well as unparalleled service from certified authorized marine dealers.
Durability
Proven engine operating history: performance iron with thousands of hours of validation testing for quality and durability
Reliability
Backed by Caterpillar's standard warranty
- AIR INLET SYSTEM
- Separate Circuit After-Cooled (SCAC)
- Seawater After-Cooling (SWAC) System
- Air cleaner
- Turbochargers, jacket water cooled
- Turbochargers inlet, 152 mm (6 in) OD straight connection
- CONTROL SYSTEM
- Programmable Low Idle (550 - 750 rpm)
- WOSR (Wide Operating Speed Range) available for - A, B, & C Ratings
- Programmable High Idle Limit for WOSR Ratings
- Electronic diagnostics and fault logging
- Engine and transmission monitoring (speed, temperature, pressure)
- Electronic fuel/air ratio control
- Engine Protection Mode for extended ambient conditions
- Torque Limiting functionality for WOSR ratings only
- 70-pin customer connector
- Throttle Input signal options
- COOLING SYSTEM
- Separate Circuit After-Cooling (SCAC) for Heat Exchanged (HEX) & Keel cooled engines
- Jacket Water (JW) and SCAC Heat Exchangers Shell & Tube for HEX cooled engines
- SCAC pump, gear driven
- Jacket water pump, gear driven
- Sea water pump, bronze impeller, gear driven, for HEX cooled engines only
- Sea water Pump & JW Heat Exchanger Connection: 76.2 mm (3in) ID Standard
- Keel Connections: 76.2 mm (3in) ID Standard 4 Bolt ANSI Flange Connection
- SCAC and JW shunt tanks for maintaining proper pump inlet pressures
- Seawater After-Cooling (SWAC) System
- EXHAUST SYSTEM
- 4 Bolt 130 mm (5.12 in) diameter flanged outlet
- Water-cooled exhaust manifold & turbocharger
- FLYWHEELS & FLYWHEEL HOUSINGS
- SAE standard rotation (CCW facing exciter end)
- Flywheel Housing: SAE No. 0, Flywheel: 18 inch, 136 teeth
- FUEL SYSTEM
- Duplex Fuel Filters, Spin-on, RH & LH service
- Fuel connections size:Supply JIC 37 Deg -10 (7/8-14), Return JIC 37 Deg -8 (3/4-16)
- Plate Type Fuel Cooler installed behind Aftercooler Shunt Tank
- Fuel transfer pump, gear driven
- Manual fuel priming pump
- Hybrid fuel line design
- LUBE SYSTEM
- Simplex Oil Filters, RH or LH service
- Deep sump oil pan
- RH or LH service oil filler locations
- RH or LH service dipstick
- Oil pump, gear driven
- MOUNTING SYSTEM
- Front support - adjustable
- POWER TAKE-OFFS
- Front Poly-V groove pulley (Quantity 1) for auxiliary drives
- GENERAL
- Common electrical bonding point
- Engine does not ship with zinc components
- Air Inlet Systems
- Air Inlet Cleaner
- Air Inlet Adapter
- Charging Systems
- Battery Charger
- Charging Alternators
- Ammeter
- Cooling System
- Marine Gear/Transmission Oil Coolers
- Connections
- Exhaust System
- Dual Elbow
- Flexible Fitting
- Dual Muffler
- Muffler Spark Arresting
- Flange
- Fuel System
- Water Separator
- Instrumentation
- OEM Wiring Harness
- Engine to Engine Harness
- Instrument Panels
- Exhaust Temperature Sensors
- Wiring Harness
- Gauges
- Transmission Sensors
- Lube System
- Transmission Oil Cooler
- Manual Sump Pump
- Duplex Oil Filters
- Protection System
- Fuel and Oil Shielding
- Starting System
- Air Starting Motor
- Air Start Accessories
- Electric Starting Motors - Single 24 Volt
- Starting Aids
- Battery Sets - 24 Volt - Dry
- Dual Starting Motors (Electric and Air)
- Packing
- Engine Protective Cover
- Export Packing
- Storage Preservation
- Mounting System
- Front Support
- Adapter Kits
- Isolator Mounts
- Power Take-Offs
- Front Enclosed Clutches
- Rear Hydraulic Pump Drive
- GENERAL
- Fumes Disposal
- CONTROL SYSTEM
- Instrument Panels
- CATERPILLAR ALARM AND PROTECTION
- Fuel and Oil Shielding
