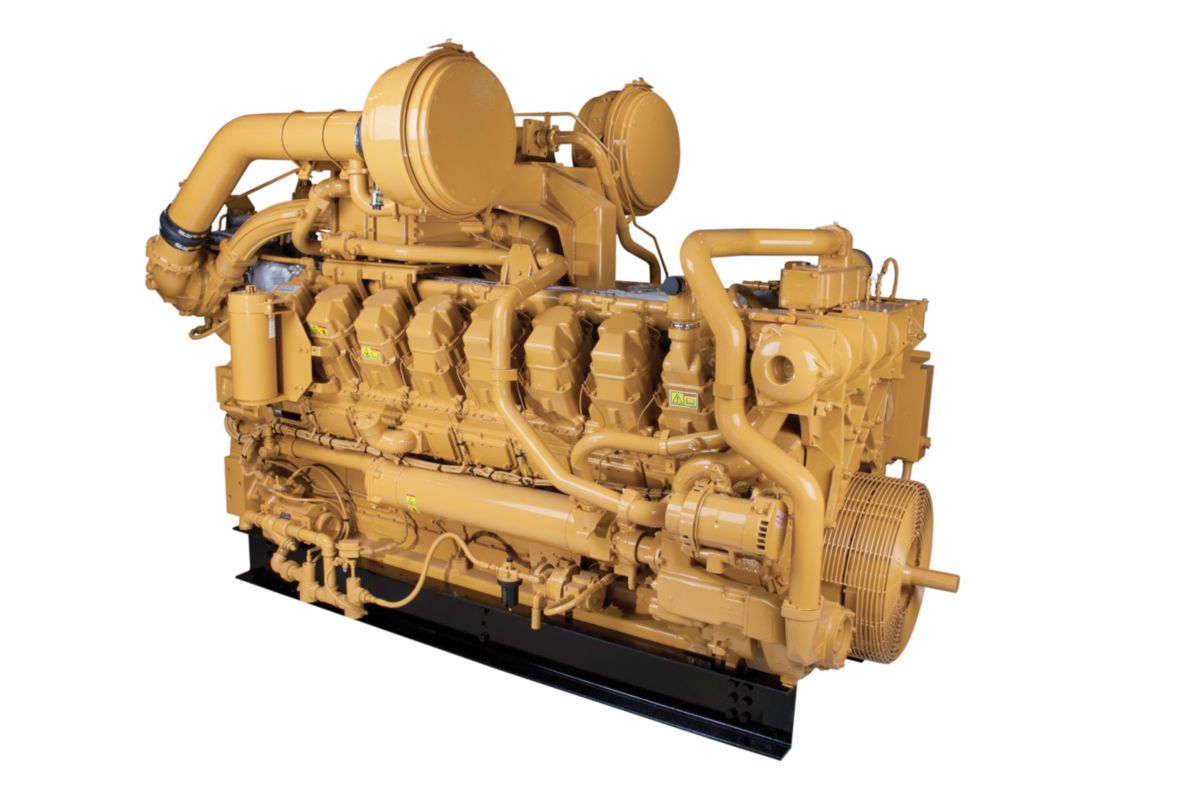

G3516B LE Gas Engine
Overview
Engine Specifications
Capacity for Liquids
Engine Specifications
Capacity for Liquids
Ultra Lean Burn Technology (ULB)
ULB technology uses an advanced control system, a better turbo match, improved air and fuel mixing, and a more sophisticated combustion recipe to provide: - Lowest engine-out emissions - Highest fuel efficiency - Improved altitude and speed turndown - Stable load acceptance and load rejection
Emissions
- Meets U.S. EPA Spark Ignited Stationary NSPS emissions for 2010 - Lean air/fuel mixture provides best available emissions and fuel efficiency for engines of this bore size
Advanced Digital Engine Management
ADEM A3 engine management system integrates speed control, air/fuel ratio control, and ignition/detonation controls into a complete engine management system. ADEM A3 has improved: user interface, display system, shutdown controls, and system diagnostics.
Full Range of Attachments
Large variety of factory-installed engine attachments reduces packaging time.
Testing
Every engine is full-load tested to ensure proper engine performance.
Gas Engine Rating Pro
GERP is a PC-based program designed to provide site performance capabilities for Cat® natural gas engines for the gas compression industry. GERP provides engine data for your site's altitude, ambient temperature, fuel, engine coolant heat rejection, performance data, installation drawings, spec sheets, and pump curves.
Product Support Offered Through Global Cat Dealer
More than 2,200 dealer outlets Cat factory-trained dealer technicians service every aspect of your petroleum engine Cat parts and labor warranty Preventive maintenance agreements available for repairbefore- failure options S•O•SSM program matches your oil and coolant samples against Caterpillar set standards to determine: - Internal engine component condition - Presence of unwanted fluids - Presence of combustion by-products - Site-specific oil change interval
Over 80 Years of Engine Manufacturing Experience
Over 60 years of natural gas engine production Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products - Cast engine blocks, heads, cylinder liners, and flywheel housings - Machine critical components - Assemble complete engine
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
- Air Inlet System
- Axial flow air cleaners
- Service indicator
- Cleanable
- Cooling System
- Two-stage charge air cooling:
- Engine cooling and charge air cooling thermostats
- Exhaust System
- Dry exhaust manifolds and turbocharger housings
- Flywheels and Housings
- SAE 00 flywheel
- SAE 00 flywheel housing
- SAE standard rotation
- Fuel System
- Electronic fuel metering valve
- Requires 7-50 psig gas supply
- Gas pressure regulator
- Gas shutoff valve
- Instrumentation
- Remote-mounted Advisor control panel
- Interconnect harness
- Lube System
- Top-mounted crankcase breathers
- Oil cooler
- Oil filter and oil sampling valve
- Drain valve
- Turbo oil accumulator
- API B16.3 approved gas/air-driven pre-lube system
- Torsional Vibration Analysis
- Caterpillar provided
- Mounting
- Rails
- Control Panels
- 4" LCD Advisor display panel
- Shipped loose
- Starting System
- 90 psi TDI starter
- 150 psi TDI starter
- Power Take-Offs
- Front housing, two sided
- Front lower LH accessory drive
- Protection System — Display/Alarm/Shutdown
- Low oil pressure
- Oil filter differential pressure
- High fuel or oil temperature
- Engine oil to engine coolant
- Differential temperature
- High coolant temperature
- Engine speed
- Engine load
- Battery voltage
- Detonation
- Manifold air temperature
- Coolant JW inlet/outlet pressure
- Left turbo inlet temperature
- Right turbo inlet temperature
- Cylinder port temperature
- Protection System — Display Only
- Service hours
- Oxygen level
- General
- Paint — Cat yellow
- Dual 23" vibration damper with guard
- CSA Certification, Class 1 Division 2 Groups C and D
- Air Inlet System
- Rectangular air inlet adapter
- Circular air inlet adapter
- Charging System
- Battery Charger 20 amp
- Connections
- Mechanical joint assembly
- Inlet connection
- Exhaust System
- Flexible fittings available at first production build
- Elbows and mufflers
- Instrumentation
- Optional interconnect harness
- Lube System
- Shipped with lube oil
- Mounting System
- Rails
- Power Take-Offs
- Front stub shaft
- Literature
- Options available
