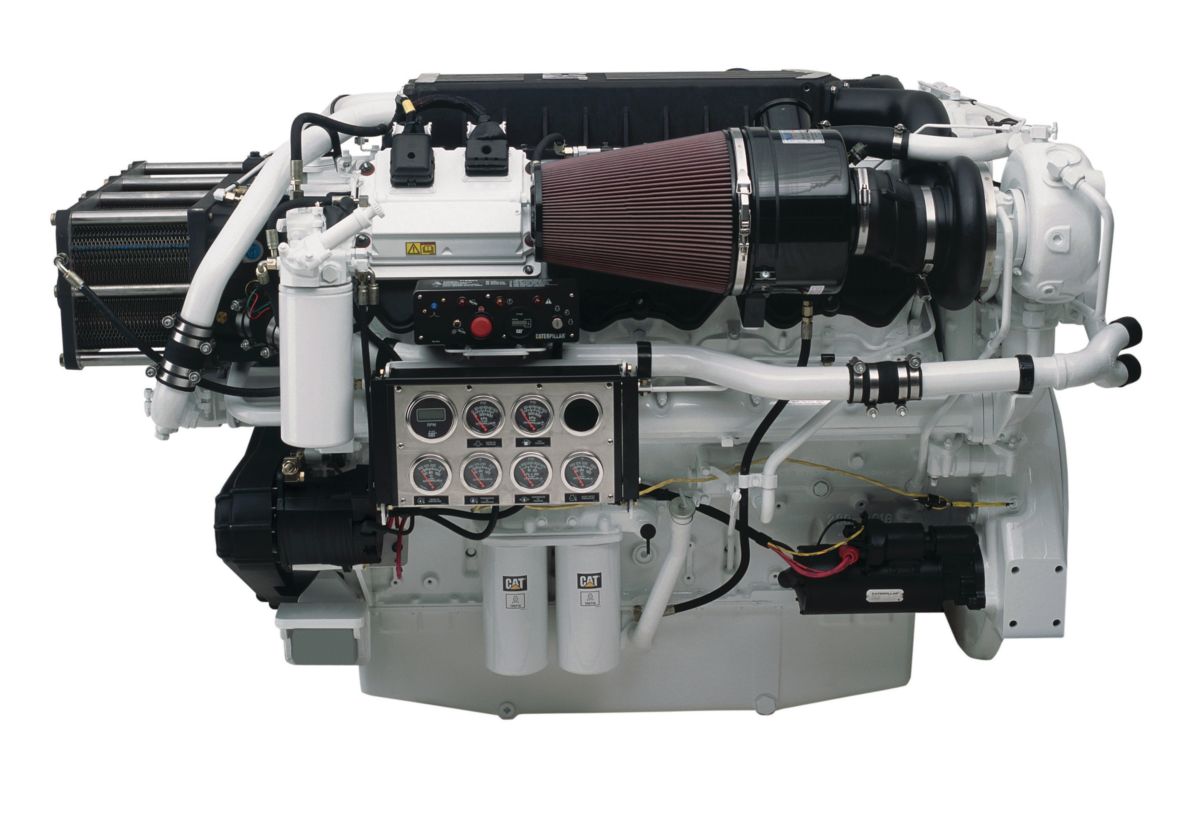

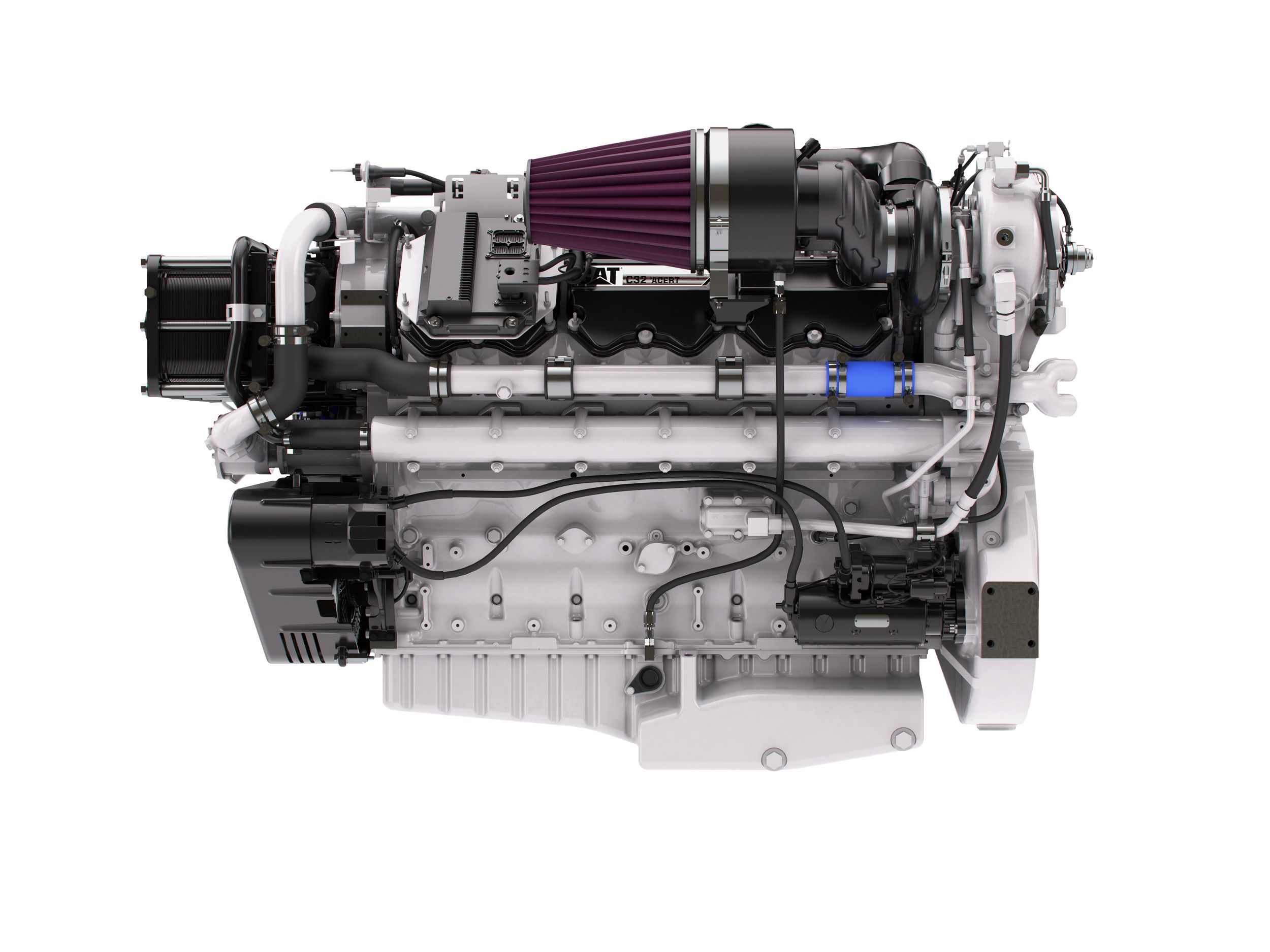

Cat C32 Marine Propulsion Engine High Performance Applications
US
Metric
Overview
C32 propulsion engine ratings of 1925 mhp (1900 bhp) 1417 bkW, 1825 mhp (1800 bhp) 1342 bkW, and 1622 mhp (1600 bhp) 1193 bkW are available with heat exchanger cooling. These ratings are compliant for U.S. EPA Tier 3 Recreational, EU Stage IIIA, and IMO II. The 1600 and 1800 bhp ratings are also meet US EPA Tier 3 Commercial Standards. The engine configuration includes an air cleaner and CCV system as well as jacket water aftercooling. Additional features include a “plug-in PTO”, an MECP I control panel, and hybrid fuel lines. The MECP I panel has a monochrome display for engine parameters, external outputs for customer installed visible and audible alarms, Start/Stop buttons, and an Off/Local/Remote switch.
Ratings
Power Range
1600-1900 bhp (1193-1417 bkW)
Engine
Speed Range
2300 rpm
Configuration
Vee 12, 4-Stroke Cycle diesel
Aspiration
Twin Turbocharged-aftercooled
Bore
5.71 in
145.00 mm
Stroke
6.38 in
162.00 mm
Displacement
1959.00 in3
32.10 L
Rotation from Flywheel End
Counterclockwise
Emissions
EPA Tier 3, IMO II, EU IW
Dimensions & Weights
Length
82.90 in
2106.00 mm
Width
58.30 in
1482.00 mm
Height
56.90 in
1445.00 mm
Dry Weight
6780.00 lb
3075.00 kg
Ratings
Power Range
1600-1900 bhp (1193-1417 bkW)
Engine
Emissions
IMO II, U.S. EPA Tier 3 Recreational, RCD, China Stage II
Bore
5.71 in
145.00 mm
Stroke
6.38 in
162.00 mm
Displacement
1959.00 in³
32.10 l
Dimensions & Weights
Dry Weight
6780.00 lb
3075.00 kg
Height
56.90 in
1445.00 mm
Length
82.90 in
2106.00 mm
Width
58.30 in
1482.00 mm
Features
Key Features & Benefits
- Electronically Governed and Controlled (ADEM IV ECM)
- Gear-drive Jacket Water Pump and Sea Water Pump for Enhanced Reliability
- MCS Certifications Available
- Titanium Plate Heat Exchanger
- LH and RH Service side options available
Standard Equipment
- Control System
- ADEM IV Electronic Control Module
- Electronic Diagnostics and Fault Logging
- Engine and Transmission Monitoring
- Programmable Low Idle
- 70-Pin Customer Connector
- Air Inlet System
- Air Cleaner / Fumes Disposal
- Cooling System
- Sea Water Aftercooler
- Titanium Plate Heat Exchanger with Expansion Tank
- Gear-driven Jacket Water and Sea Water pumps
- Exhaust System
- Water-cooled Exhaust Manifolds and Turbochargers
- Fuel System
- MEUI Fuel System
- Fuel Priming and Transfer Pump
- Simplex Fuel Filters
- STANDARD EQUIPMENT
- Engine and Transmission Monitoring
- Fuel Priming and Transfer Pump
- Lube System
- 250-hr Oil Pan (Shallow Sump)
- Simplex Oil Filters
- Gear Driven Oil pump
- General
- RH or LH Service Side Options
- Control system
- Throttle Inputs
- Flywheel Housing
- Flywheel Housing SAE 0
Optional Equipment
- Cooling System
- 120 V or 240 V Jacket Water Heater
- Power Take Offs
- SAE A or B PTO (LH or RH rear)
- Charging System
- 75 A or 105 A Alternator
- Battery Sets
- Protection
- Spray Shielding
- Starting System
- Electric Starting motor
- Mounting System
- Isolator Mounts
- Fuel System
- Primary Fuel / Water Separator
- Exhaust System
- Muffler
- Felixible Fitting
