Marine Generator Sets

C1.5 Marine Generator Set Engine

Request A Quote
US
Metric

Overview

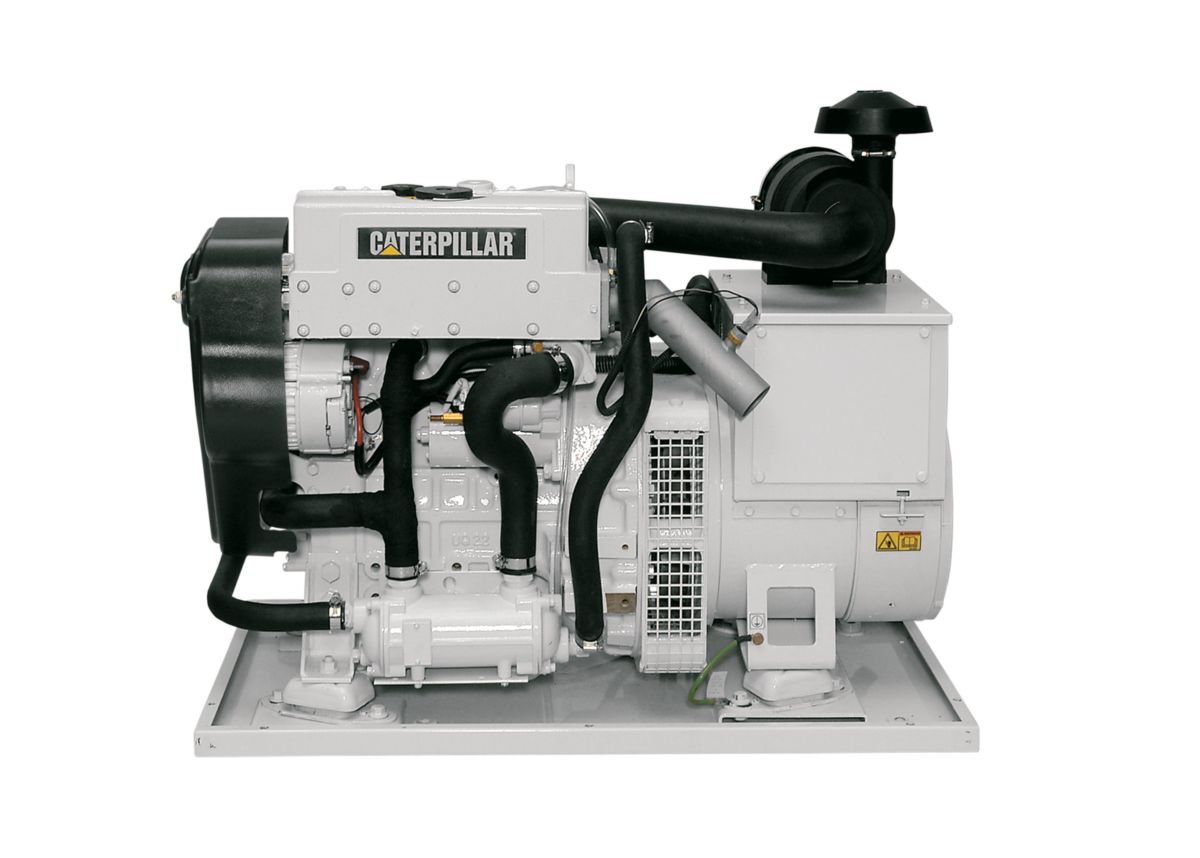

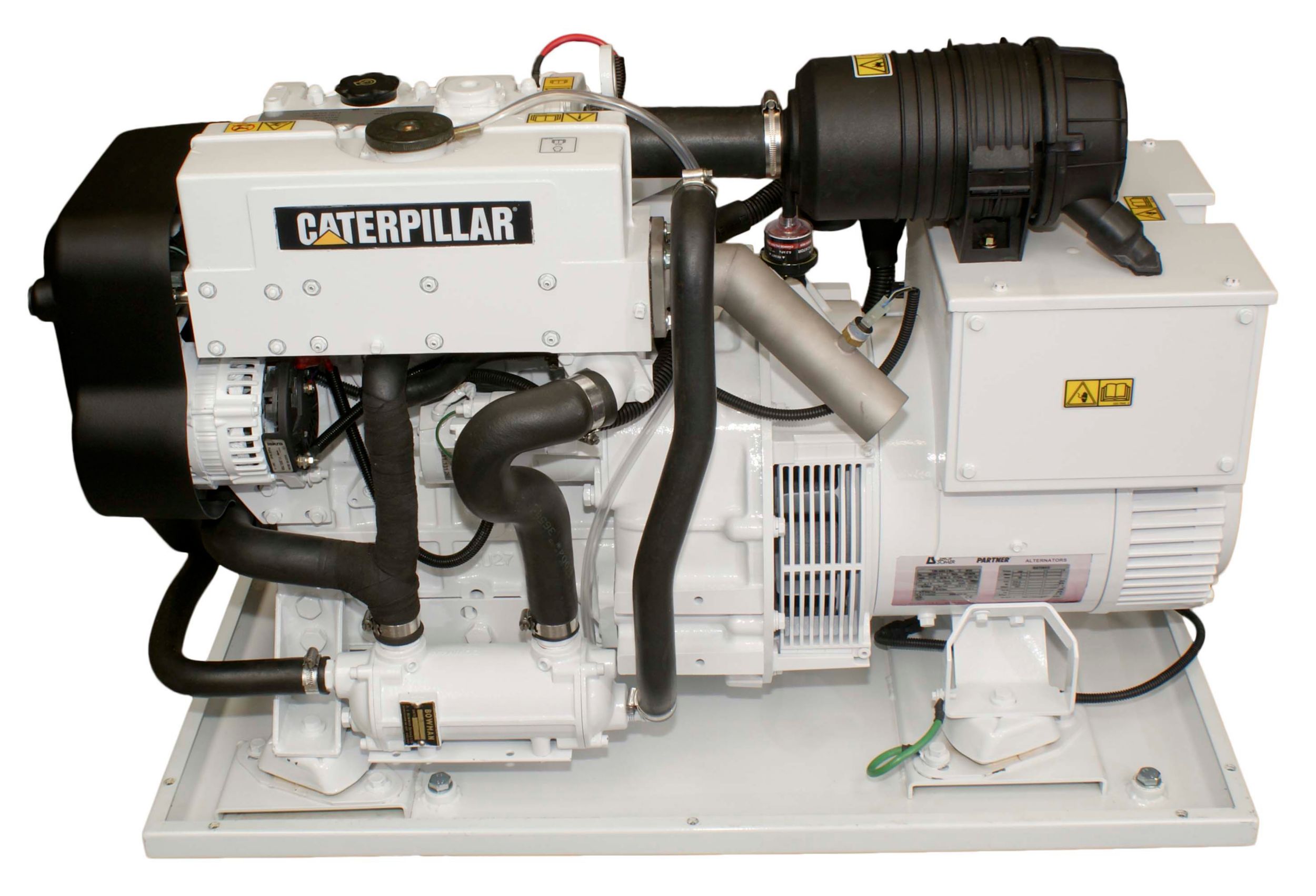

Cat® C1.5 Diesel Marine Generator Set has single phase ratings of 50 Hertz at 10.0 ekW and 60 Hertz at 12.0 ekW that meet U.S. EPA Tier 3 and EU IW emission standards. The Cat® C1.5 also has three phase ratings of 50 Hertz at 11.0 ekW and 60 Hertz at 13.0 ekW that meet U.S. EPA Tier 3 and EU IW emissions standards. This generator set is available in 12 or 24 volt as an open gen set or as an enclosed package.

Generator Set Specifications

Minimum Rating
10 ekW (10 kVA)
Maximum Rating
13 ekW (16.5 kVA)
Frequency
50 Hz or 60 Hz
Speed
1500 rpm (50Hz) or 1800 rpm (60 Hz)

Generator Set Configurations

Emissions/Fuel Strategy
60 Hz meets EPA Tier 3*, 50 Hz meets EU 97/68EC Stage II regulations

Engine Specifications

Engine Model
C1.5, In-line 3, 4-Stroke-Cycle-Diesel
Aspiration
Naturally Aspirated
Bore
3.31 in
84.00 mm
Stroke
3.50 in
90.00 mm
Displacement
91.00 in3
1.50 L
Governor Type
Electrical Isochronous

Generator Specifications

Frame Size
1.5
Excitation
AREP
Insulation
Class H
Voltage Regulation
±0.5%

Generator Set Dimensions

Length
37.4 in/962 mm (open), 40 in/1021 mm (enclosed)
Width
21 in/533 mm (open), 24 in/608 mm (enclosed)
Weight
319 kg/703 lbs (open), 368 kg/811 lbs (enclosed)
Weight
319 kg/703 lbs (open), 368 kg/811 lbs (enclosed)

Generator Set Specifications

Minimum Rating
10 ekW (10 kVA)
Maximum Rating
13 ekW (16.5 kVA)
Frequency
50 Hz or 60 Hz
Speed
1500 rpm (50Hz) or 1800 rpm (60 Hz)

Engine Specifications

Engine Model
C1.5, In-line 3, 4-Stroke-Cycle-Diesel
Aspiration
Naturally Aspirated
Bore
3.31 in
84.00 mm
Stroke
3.50 in
90.00 mm
Displacement
91.00 in³
1.50 l
Governor Type
Electrical Isochronous

Generator Set Specifications

Emissions/Fuel Strategy
60 Hz meets EPA Tier 3*, 50 Hz meets EU 97/68EC Stage II regulations

Generator Set Dimensions

Width
21 in/533 mm (open), 24 in/608 mm (enclosed)
Height
27.5 in/699 mm (open), 28 in/710 mm (enclosed)

Generator Specifications

Frame Size
1.5
Features

Fuel economy and minimized service needs unite to deliver low operating and maintenance costs.

Reliable

Economical

Safe

Flexible

Clean and quiet

Standard Equipment
  • Air Inlet System
    • Air cleaner, single element canister type with rain cap (open generator set only)
  • Control System
    • Electronic isochronous governor
  • Cooling System
    • Belt-driven centrifugal jacket water pump
    • gear-driven seawater pump
    • heat exchanger with copper nickel tubes
    • expansion tank
  • Exhaust System
    • Watercooled exhaust manifold and elbow
  • Fuel System
    • Fuel filter — RH or LH service
    • fuel priming
    • fuel transfer pump
    • flexible fuel lines
  • Generator
    • Single Phase
  • Lube System
    • Lubricating oil
    • oil filter (RH)
    • dipstick (RH)
    • fumes disposal (closed system)
  • Mounting System
    • Anti-vibration mounts, connected to drip tray and steel base sitting on PVC foam sound-absorbent pad
  • Protection System
    • Electronic automatic safety shutdown for low oil pressure, high water temperature, high exhaust (wet exhaust only) temperature, and overspeed
  • Starting System
    • 12 or 24 volt electronic starting motor, 12 volt 55 amp alternator
  • General
    • Single-side service (RH), decals, literature
Optional Equipment
  • Sound attenuated enclosure
  • Deluxe instrument panel
  • Basic instrument panel
  • Remote instrument panel extension harness
  • AC circuit breakers
  • Flexible fuel lines
  • Primary fuel filter/water separator
  • Siphon break
  • Keel-cooling kit
  • Exhaust system components
  • Oil drain pump
  • Insulated electric system
  • Noise reducing air inlet duct
